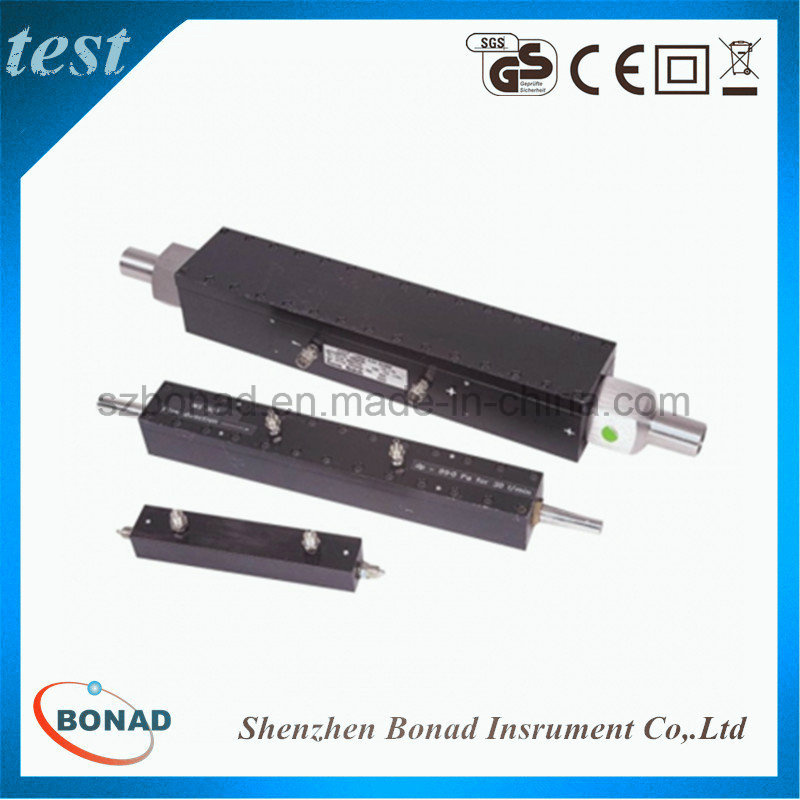

30L 100L Standard Laminar Flow Sensor for Engine Nozzle Test

Name: 30L 100L Standard Laminar Flow Sensor for Engine Nozzle Test
Brand: all-electronics-online.com
SKU: 815577625
Availability: InStock
Rating: 4.5 (143 reviews)

Price:	US $ 10-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND96
Delivery Time:	3-7days
Warranty:	1year
Measuring Range:	0.01ml/Min-5000L/Min
Full Scale Differential Pressure:	Less Than 100PA
Working Medium:	Any Clean and Dry Non-Corrosive Gases
Working Pressure:	0.7MPa
Accurancy:	±0.5%
Product Name:	Standard Laminar Flow Sensor

Product Description

30L 100L Standard laminar flow sensor for Engine nozzle test

Features
Respiratory monitoring
Gas flow measurement
Air filter test
Engine nozzle test
Core porosity test
Vacuum cleaner test

BND96 series laminar flow sensor strictly follow the laminar flow theory, designed based on repeated verification and optimization of mathematical models, using a modern

Of the manufacturing process, its stability and accuracy have reached the gas from the theory of laminar flow since the establishment of an unprecedented level, and has received a number of international

Patent Protection.

The laminar flow sensor covers a measurement range from 0.01 ml / min to 5000 l / min, and the accuracy of the various gases can reach ± 0.5% of full scale.

measuring range :

model	Measuring range	Accurancy(Maximum allowable error)
BND96-20C	(0~20)mL/min	±0.5%
BND96-200C	(0~200)mL/min	±0.5%
BND96-2L	(0~2)mL/min	±0.5%
BND96-5L	(0~5)mL/min	±0.5%
BND96-20L	(0~20)mL/min	±0.5%
BND96-30L	(0~30)mL/min	±0.5%
BND96-100L	(0~100)mL/min	±0.5%
BND96-1000L	(0~1000)mL/min	±0.5%
BND96-10000L	(0~10000)mL/min	±0.5%

General technical indicators

resolution	Depends on differential pressure measurement equipment
Full scale differential pressure	Less than 100Pa
Working medium	Any clean and dry non-corrosive gases
Working pressure	0.7MPa
