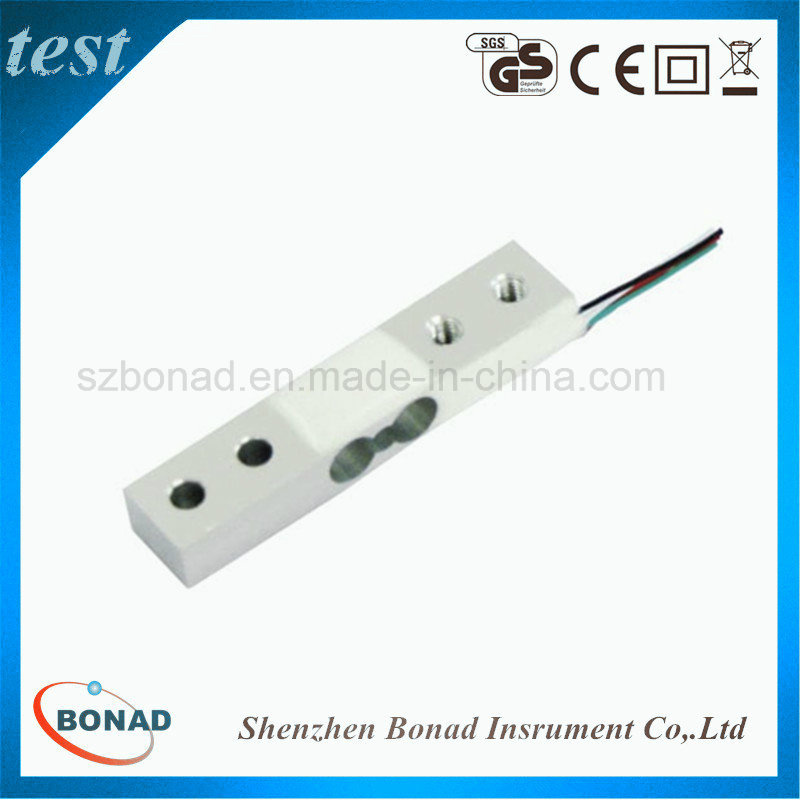

Chinese 300g Micro Load Cell for Kitchen Scales Czl616c

Name: Chinese 300g Micro Load Cell for Kitchen Scales Czl616c
Brand: all-electronics-online.com
SKU: 818073005
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 0.9-5.8/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CZL616C
Delivery Time:	3-7days
Warranty:	1year
Product Name:	300g Micro Load Cell Czl616c
Dimensions:	459.36mm
Rated Load:	300g-750g
Creep(3min):	0.1%Fs
Rated Output:	0.7mv/V+/-15%
Safe Overload:	150%F.S
Cable:	120mm(Flat 4-Wires)
Repeatability:	0.05%F.S

Product Description

CZL928F micro train gauge 3kg transducer

Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

1. Rated Load	0.3-0.75(Kg)
2. Rated Output	0.7mV/V±15%
3. Zero Balance	±15%F.S
4. Input Resistance	1050±50Ω
5. Output Resistance	1000±10Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.05%F.S
8. Hysteresis	0.05%F.S
9. Repeatability	0.05%F.S
10.Creep(30min)	0.1%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.3%F.S/10ºC
13.Temperature Effect on Span	0.5%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	120mm(flat 4-wires)

FAQ
Q1:What about your quality?
Each equipment must be carry out 100% examination and test again before shipping

Q2:What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample

Q3:what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.

Q4:How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .

Q5:What is the warranty of the products?
One year ,but we can provide you life long support .

Q6:What is the package
Export standard Solid wooden case

Q7:What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .

Q8:What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
