| Prod Model: |
BND-CZL605D |
| Delivery Time: |
3-7days |
| Warranty: |
1year |
| Product Name: |
Parallel Beam Load Cell |
| Capacity: |
0.3, 0.6, 1, 1.2, 1.5, 2, 10 Kg |
| Comprehensive Error: |
0.03%Fs |
| Rated Output: |
0.9+/-0.1mv/V |
| Input Resistance(Ω): |
405±10 |
| Ultimate Overload (%F.S): |
150 |
| Safe Overload: |
120%F.S |
| Creep(%F.S/30min): |
+/-0.02 |
Product Description

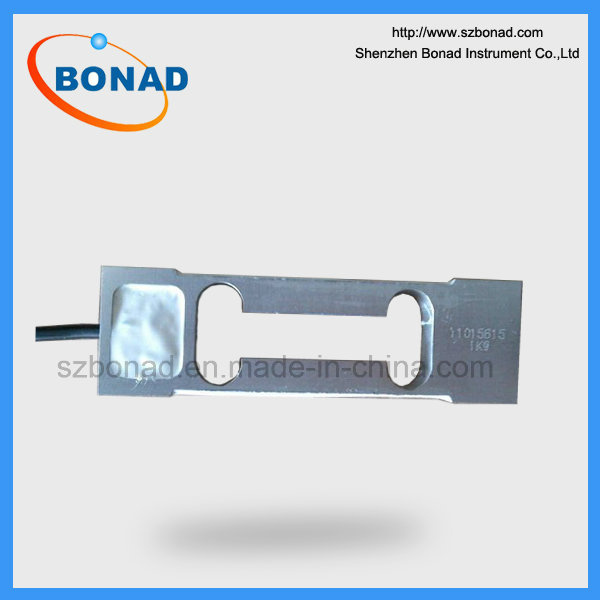

CZL605D 1KG 1.5KG parallel beam load cell
Capacity(kg): 0.3, 0.6, 1, 1.2, 1.5, 2, 10
Main features: The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation. The product is suit for electronic top scale, floor scale and other weighing equipment.
| Parameters |
| Precision : C2 | | Temp. effect on span(%F.S/10°C): ±0.02 |
| Comprehensive error(%F.S) : ±0.03 | | Temp. effect on zero(%F.S/10°C) : ±0.03 |
| Rated output(mv/v) : 0.9±0.1 | | Compensated temp. range(°C ) : -10~+40 |
| Creep(%F.S/30min) : ±0.02 | | Use temp. range(°C ) : -20~+60 |
| Zero balance(%F.S) : ±1.0 | | Excitation voltage(V) : 9~12(DC) |
| Input resistance(Ω) : 405±10 | | Safe overload (%F.S) : 120 |
| Output resistance(Ω) : 350±3 | | Ultimate overload (%F.S) : 150 |
| Insulation resistance(MΩ) : ≥5000(100VDC) | | Defend grade : IP65 |
Size(mm): 110X33X10
Wiring schematic diagram
Red: Input ( + ) 111 White: Output ( - )
Black: Input ( - ) 111 Green: Output ( + )
Notes: The single point load cell CZL605E is connected with 4-core shielded cable(φ4×500mm)
