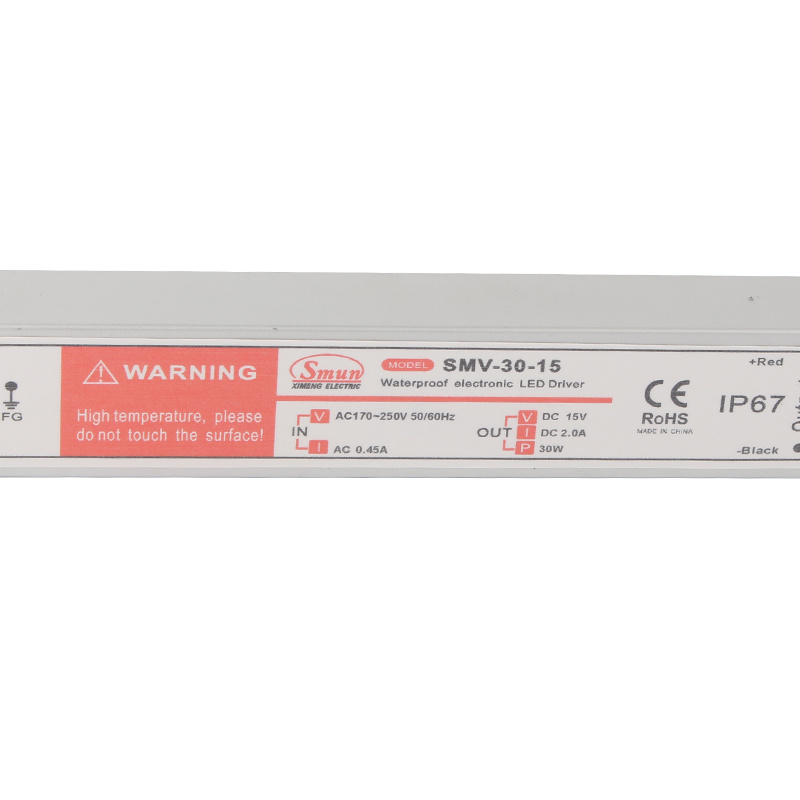

30W 15VDC 2A AC-DC Waterproof IP67 Constant Voltage LED Driver

30W 15VDC 2A AC-DC Waterproof IP67 Constant Voltage LED Driver
Price: US $ 4.2-6.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SMV-30-15
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power: 30W
Input: 90-264VAC
Output: 15V 2A
Size: 222*28*20mm
Weight: 0.25kg
IP Degree: IP67
Working Temperature: -25~+50 Degree C
Customized: Available
Efficiency: 80%
Tolerance: 1%
Usage: Vehicle
Output Type: Single
Driving Method: LED Regulator Voltage
Circuit Structure: Electronic Step-down Transformer
Pack Sealing Size: 222*28*20mm
Brand: Smun

Product Description

LED water-proof power supply characteristics:
Aluminum plastic shell with internal irrigation design in line with the requirements of IP67 waterproof
Protection: Short circuit, overl oad, over voltage, over temperature protection
Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden landscaping
Natural air-cooled heat
100% full load burn-in test
Comply with CE certification
Low price and high reliability
MODELSMV-30-12SMV-30-15SMV-30-24SMV-30-48
OUTPUTDC VOLTAGE12V15V24V48V
RATED CURRENT2.5A2A1.2A0.6A
RATED POWER30W30W28.8W28.8W
RIPPLE&NOISE50mVp-p50mVp-p100mVp-p100mVp-p
VOLTAGE ADJ.RANGE4.75-5.5V10.8-13.2V13.5-16.5V21.6-26.4V
VOLTAGE TOLERANCE±1.0%±1.0%±1.0%±1.0%
LINE REGULATION±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±1.0%±1.0%±0.5%±0.5%
SETUP,RISE TIME300ms,50ms/230VAC 800ms,50ms/115VAC at full load
HOLD UP TIME(TYP.)90ms/230VAC 12ms/115VAC at full load
INPUTVOLTAGE RANGE90-264VAC
FREQUENCY RANGE47-63HZ
EFFICIENCY(Typ.)75%80%82%85%
AC CURRENT(Typ.)0.4A/230VAC
INRUSH CURRENTCOLD START 30A/230VAC
LEAKAGE CURRENT0.5mA/240VAC
PROTECTIONOVERLOAD105-150% RATED OUTPUT POWER
WATER-PROOF LEVEL:IP67
OVER VOLTAGE5.75V-6.75V17.2V-20.25V27.6V-32.4V
Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENTWORKING TEMP-25~+50°C
WORKING HUMIDITY20-90%RH non-condesing
STORAGE TEMP,HUMIDITY-20~+85°C,10-95%RH
TEMP.COEFFICIENT±0.03%°C(0-50°C)
VIBRATION10-500HZ
SAFETY&EMCSAFETY STANDARDCE RoHS
WITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
ISOLATION RESISTANCEI/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
EMI CONDUCTION&RADIATIONDesign refer to GB4943,UL60950,EN60950
EMC STANDARDDesign refer to GB9254,EN55022 Class A
DIMENSIONL222*W28*H20mm
PACKING0.25kg
