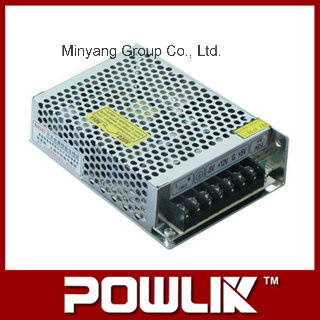

30W 5V 12V -12V Triple Output Switching Power Supply (T-30B)

Name: 30W 5V 12V -12V Triple Output Switching Power Supply (T-30B)
Brand: all-electronics-online.com
SKU: 743952375
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 0.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-30B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	129X98X38
Frequency:	47-63Hz
Rated Voltage:	110V/220V
Model:	Can Be Made to Order
Output Type:	Triple
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	85-132V
Brand:	Powlik

Product Description

30W 5V 12V -12V Triple Output Switching Power Supply(T-30B)

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:129*98*38(mm)

Specification	T-30B
DC output	+5V 3A	+12V 1A	-12V 0.5A
Wave and noise	50mVp-p	100mVp-p	50mVp-p
Linr Regulation	±0.5%	±1.0%	±1.0%
Load Regulation	±1.5%	±3.0%	±1.0%
Efficiency	72%
Voltage Adjust Range	CH1:4.75-5.5V
AC input voltage range	85-132VAC 47-63Hz 170-264VDC
AC Inrush current	Cold-start current 15A/115V 30A/230V
OverLoad protection	110%-150% hiccup mode,auto-recovery
Over-Voltage protection	115%-140% rated output voltage
Setup,rise,hold up time	200ms,10ms,30ms at full load and 230VAC
Withstand voltage	I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
Isolation resistanc	I/P-O/P IP/FG OP-FG:500VDC/100M
Working temperature	-10ºC_+50ºC
Safety Standards	Design refer to GB4943,UL60950,EN60950
EMC Standards	Design refer to GB9254,EN55022 Class B
Weight	0.42Kg
