30W 5V 24V Dual Output Switching Power Supply (D-30B)

Name: 30W 5V 24V Dual Output Switching Power Supply (D-30B)
Brand: all-electronics-online.com
SKU: 743939175
Availability: InStock
Rating: 5 (118 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	D-30B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	129X98X38
Frequency:	47-63Hz
Capacity:	30W
Weight:	0.41kgs
Output Type:	Dual
Warranty:	1 Year
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	85-132V
Brand:	Powlik

Product Description

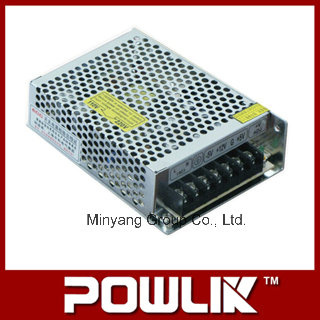

30W 5V 24V Dual Output Switching Power Supply (D-30B)

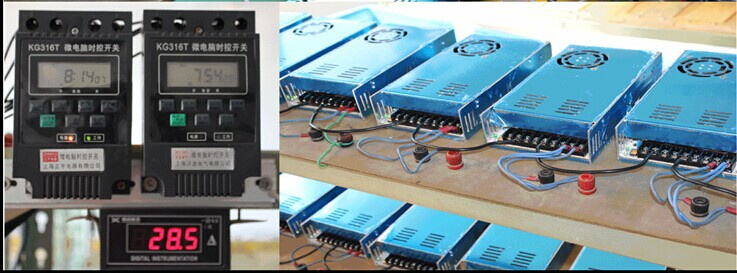

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:129*98*38(mm)

Specification	D-30B
DC output	5V 2A	24V 1A
Wave and noise	50mVp-p	100mVp-p
Inlet stability	±1%	±1%
Load stability	±1%	±1%
Efficiency	74%
AC input voltage range	85-132VAC/170-264VDC 47-63Hz
Output Capacity	35W
OverLoad protection	110%-135% hiccup mode,auto-recovery
Over-Voltage protection	110%-135% rated output voltage
Setup,rise,hold up time	200ms,50ms,30ms at full load and 230VAC
Withstand voltage	I/P-O/P: I/P-FG 1500VAC
Isolation resistanc	I/P-O/P IP/FG >100M Ohms / 500VDC
Working temperature	-10ºC_+65ºC
Safety Standards	Design refer to UL1950,CSA22.2,IEC60950
EMC Standards	Design refer to FCC PART 15 CLASS A
Weight	0.41KG

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
