30W DIN-Rail Switching Power Supply with CE (DR-30)

Name: 30W DIN-Rail Switching Power Supply with CE (DR-30)
Brand: all-electronics-online.com
SKU: 744095915
Availability: InStock
Rating: 4.7 (95 reviews)

Price:	US $ 1.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	78X93X56
Frequency:	47-63Hz
Capacity:	30W
Weight:	0.27kgs
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Input Voltage:	90-264VAC 47-63Hz 127-373VDC
Brand:	Powlik

Product Description

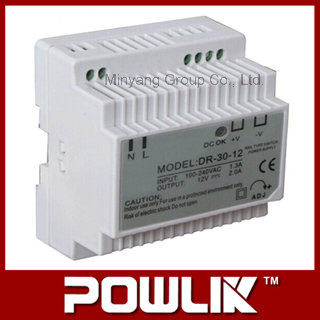

30W DIN-Rail Switching Power Supply With CE (DR-30)

100% full load burn-in test
Universal AC input: 110/220VAC± 20% selectable by switch
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Size:78*93*56(mm)

Specification	DR-30-5	DR-30-12	DR-30-15	DR-30-24
Specification	5V 3A	12V 2A	15V 2A	24V 1.5A
Wave and noise	100mVp-p	200mVp-p	24mVp-p	480mVp-p
Inlet stability	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Load stability	± 1%	± 1%	± 1%	± 1%
DC output power	15W	24W	28W	30W
Efficiency	72%	77%	77%	80%
Adjustable range for DC voltage	+10, -5%
AC input voltage range	90-264VAC 47-63HZ 127-373VDC
OverLoad protection	105%-150%hiccup mode, auto-recovery
Over Voltage protection	115%-150% Shut off O/P voltage,clamping by zener diode
Setup, rise, hold up time	500ms,30ms,50ms/230VAC
Withstand voltage	I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ
Working temperature	-10-----+60
Safety standards	Design refer to 1950,TUV EN60950
EMC standards	Design refer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204
Weight	0.27Kgs

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

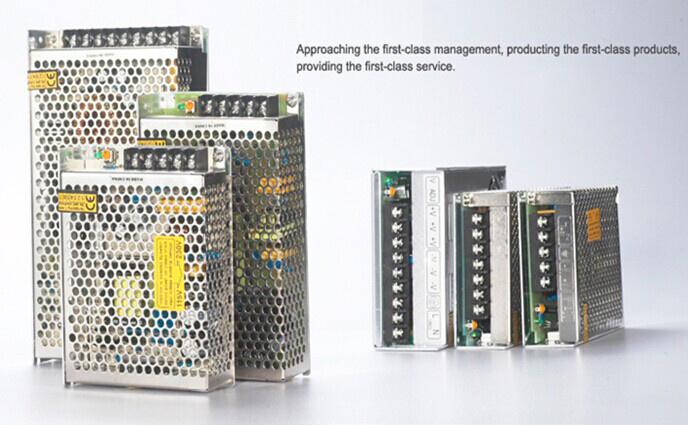

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
