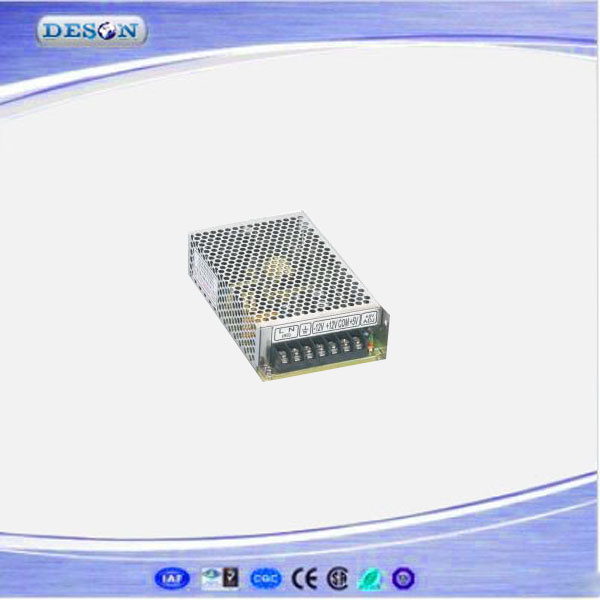

30W Dual Output Switching Mode Power Supply

30W Dual Output Switching Mode Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: D-30
Power: 30W
Input: 85 ~ 132VAC / 170 ~ 264VAC Selected by Switch 240
Output: 5V/12V/24V
Size: 129X97X35mm
Weight: 0.41kgs
Output Type: Dual
Warranty: 2 Years
Output Power: 1 - 50W
Input Voltage: Full Range
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Frequency Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Brand: Deson
Energy Transmission: Switching Mode Power Supply

Product Description

30W Dual Output Switching Mode Power Supply

1.Universal AC Input
2.Compact size, light weight.
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Dual Output Channel
7.Soft-start current can reduce  the AC input impact effecticly
8. 2 years warranty


Product Description

MODELD-30AD-30BD-30CD-30F
OUTPUTDC VOLTAGE5V12V5V24V12V-1212V24V
CURRENT RANGE0.5 ~ 4A0 ~ 1A0 ~ 2A0~ 1A0.5 ~ 1.5A0.2 ~ 1A0.3 ~ 1A0.3 ~ 1A
RIPPLE & NOISE (max.)50mVp-p100mVp-p50mVp-p100mVp-p100mVp-p100mVp-p100mVp-p100mVp-p
VOLTAGE ADJ. RANGECH1 : ±10%CH2 : ±5%CH1 : ±10%CH2 : ±5%CH1 : ±10%CH2 : ±5%CH1 : ±10%CH2 : ±5%
VOLTAGE TOLERANCE2.00%+3,-7%2%+3,-5%2.00%+3,-7%2%+3,-5%
LINE REGULATION0.50%1.00%0.50%1.00%0.50%1.00%0.50%1.00%
LOAD REGULATION0.50%4.00%0.50%4.00%0.50%4.00%0.50%4.00%
SETUP, RISE TIME200ms, 50ms, 30ms at full load
INPUTVOLTAGE RANGE85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC
FREQUENCY RANGE47 ~ 63Hz
EFFICIENCY (Typ.)72%74%74%75%
AC CURRENT (Typ.)0.8A/115VAC 0.45A/230VAC
INRUSH CURRENT (Typ.)COLD START 18A/115VAC 36A/230VAC
PROTECTIONOVER LOAD105 ~ 150% rated output power
Protection type : Fold back current limiting, recovers automatically after fault condition is removed.
ENVIRONMENTWORKING TEMP.-10 ~ +60oC (Refer to output load derating curve)
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20 ~ +85oC , 10 ~ 95% RH
TEMP. COEFFICIENT0.03%/oC (0 ~ 50oC )
VIBRATION10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY &EMCSAFETY STANDARDSDesign refer to UL1012
WITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
EMI CONDUCTION & RADIATIONDesign refer to FCC Part15 J Conduction
OTHERSMTBF417.6K hrs min. MIL-HDBK-217F (25 )
DIMENSION129*98*38mm (L*W*H)
PACKING0.4Kg; 43*32.5*24CM/45PCS/18KG
