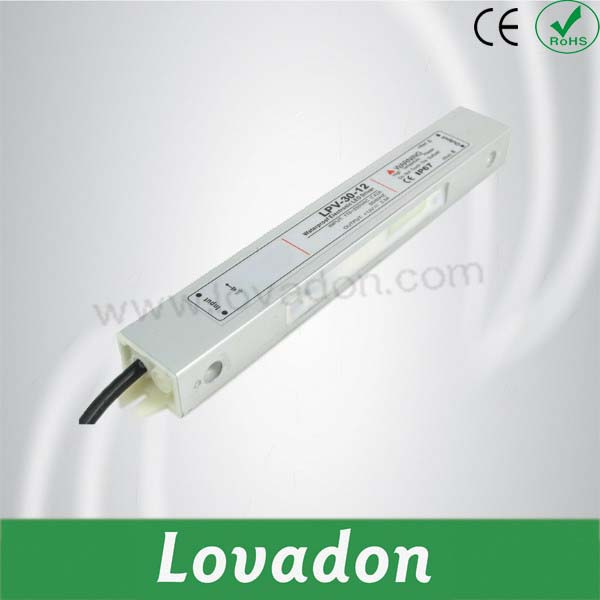

30W Waterproof Switching Power Supply

Name: 30W Waterproof Switching Power Supply
Brand: all-electronics-online.com
SKU: 684620362
Availability: InStock
Rating: 4.6 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-30-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Voltage:	DC 12V±0.5V
Output Frequency:	47-63Hz
Output Current:	DC 2.5A Max.
Input Current:	AC 0.22A Max.
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Certification:	CE
Input Voltage:	170-264VAC

Product Description

30W switching power supply waterproof
1.Small size, light weight, high efficiency, long life, safety and reliability
2.Built-in PFC function
3.Protections: Over voltage, Over current, Over temperature., Short Circuit
4.Waterproof Rank: IP67
5.Size:

Model Specification	LPV-30-12	LPV-30-15	LPV-30-24
DC Output voltage	12V	15V	24V
Rated output current	2.5A	2A	1.25A
Output current range	0~2.5A	0~2A	0~1.25A
Error	±5%	±5%	±5%
Wave and noise(Note:3)	100mVp-p	100mVp-p	150mVp-p
DC output power	30W	30W	30W
Efficiency	83%	83%	85%
Adjustable range for DC voltage	±10%	±10%	±10%
AC input voltage range	100~250VAC ,47~63Hz,240~370VDC
Input current	0.42A/230V
AC Inrush current	Cold-start current 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	102%-107% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	............................................
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥105degree hiccup mode,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10degree~+60degree ,20%~90%RH
Overall dimension	2223020mm
Weight	0.28kgS 80pcs/ctns
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25degree 70% RH. Temperature. 2. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
