Yueqing Lovadon Electric Co., Ltd. >> Control Relay for Time Relay Overvoltage and Undervoltage Adjustment Phase Sequence and Lack of Phase Detection Display by LEDs

Control Relay for Time Relay Overvoltage and Undervoltage Adjustment Phase Sequence and Lack of Phase Detection Display by LEDs

Control Relay for Time Relay Overvoltage and Undervoltage Adjustment Phase Sequence and Lack of Phase Detection Display by LEDs
Price: US $ 4.2-4.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

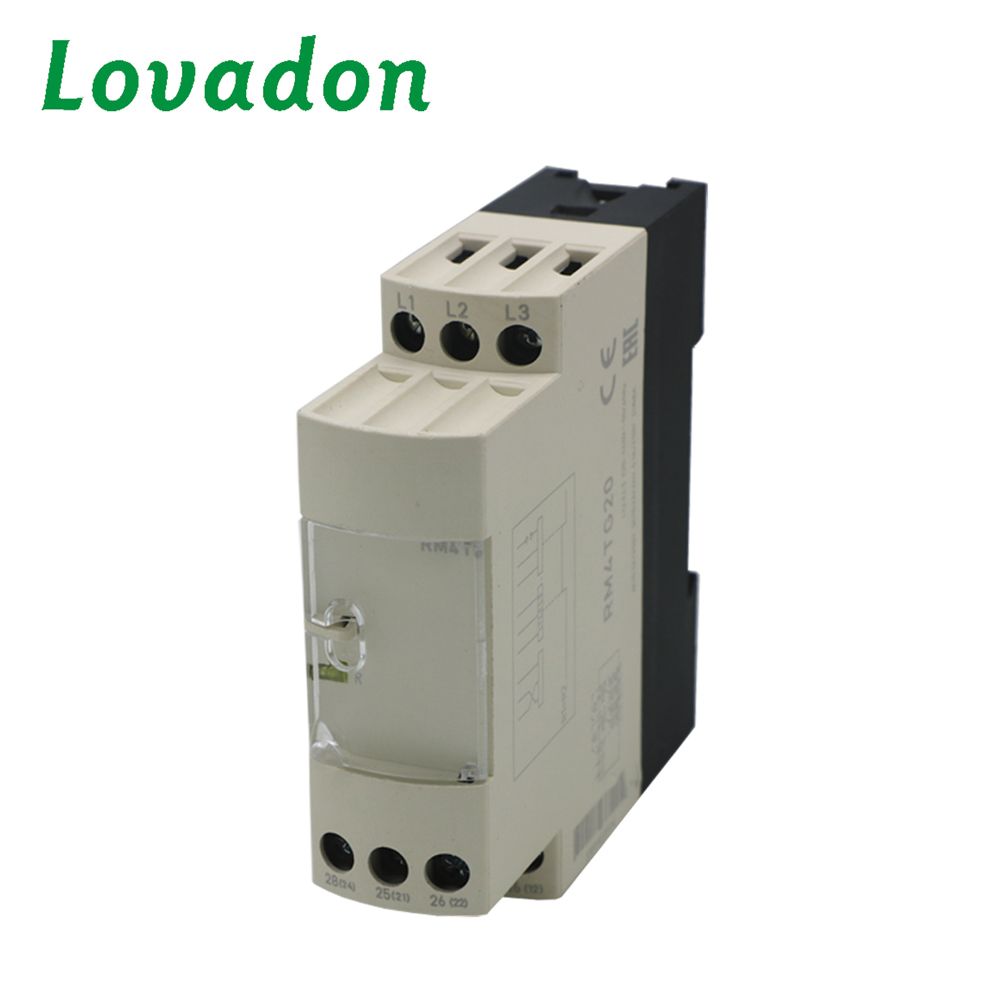

Prod Model: RM4TG20

Product Description

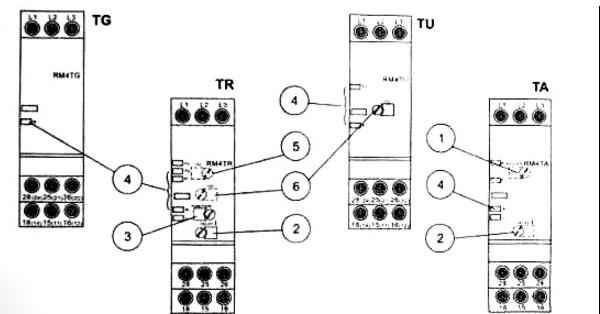

1Potentionmeter for asymmetry thresshold adjustment
2Time delay adjustment
3Function selection
4Dispaly by LEDs
5Potentionmeter for overvoltage adjustment
6Potentionmeter for undervoltage adjustment



A motor that continues to turn despite lass of a phase can regenerate a

voltage.If this voltage exceeds the sensing threshold,the relay will not

detect phase loss.

In this case,we recommend use of RM4 TA's.

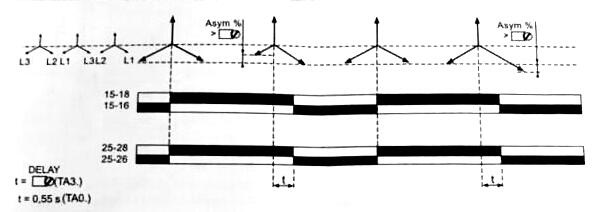

These device have a fixed hysteresis of 50%.

"Hysteresis "here means the voltage difference(unbalance the closing

and opening of the output relay(as a percentage of the preset unbalance threshold).

For example,with a 10% unbalance setting on a 400-V network
The relay opening threshold is:400-10%=360V
The relay closiong threshold is:360V+(50%x10%) of 360V=380V
