Yueqing Lovadon Electric Co., Ltd. >> Remote Control Switch Programmable Motorized Circuit Breaker

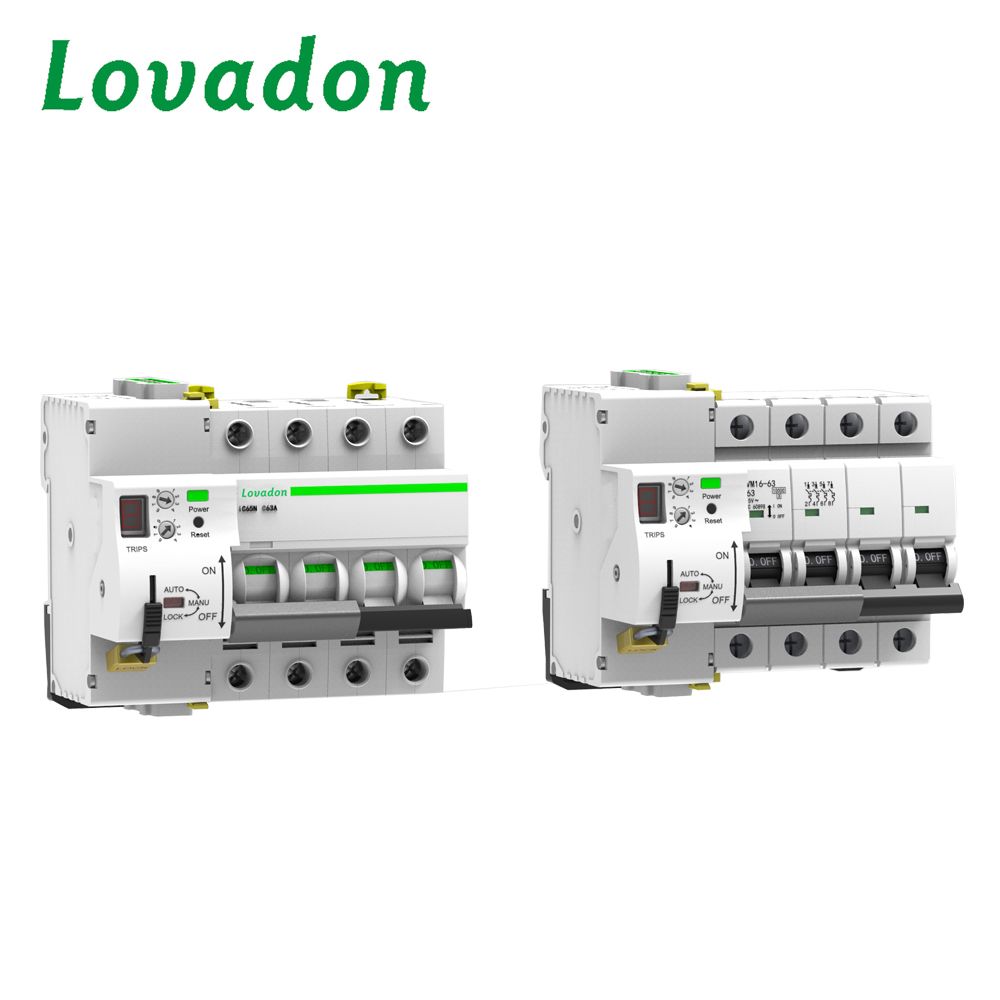

Remote Control Switch Programmable Motorized Circuit Breaker

Remote Control Switch Programmable Motorized Circuit Breaker
Price: US $ 62-72/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: LMT-51R-4P
Power: 3va
Standby Power: Standby Power
Rated Voltage: 230V AC
Trip Time: Trip Time
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Installation: Insert
Structure: MCB
Poles Number: 4
Certification: CE

Product Description

Application:

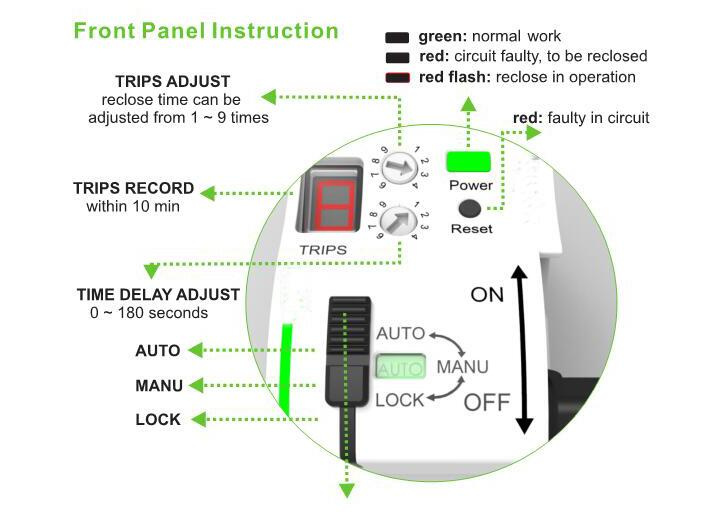

LMT51R is an automatic recloser, which can inspect and reclose the circuit
by itself. It may switch on/off the breaker automatically: trips and time
delay can be set up and adjusted as per request. The device LMT51R may
reclose itself if no faulty, and will output signals to control station if any
faulty. Therefore, it may realize remote monitor or reclose the circuit in
unattended or remote place



Technical Data

Voltage(VAC): 230V AC     Frequency: 50/60Hz
Power: 3VA                      Standby Power: 0.5W
Insulation Voltage: 4000V/min       Trip time: <0.1S
Mechancal life: 8000
Reclose adjustable (times) : 0 , 1 , 2 , 3, 4, 5, 6, 7, 8, 9 times
Electrical life: 5000
Time delay adjust (seconds) : 0, 10, 20, 30, 45, 60, 90, 120, 150, 180S
Reset system (ISPDT): rated current 5A (250VAC) resistant load.
Enviroment Temperature:-25~+55
Storage Temperature:40~+70
Production degree

Breaker:IP20
Inside distribution box:IP40 grade II
Temperature +55         Humidity:95%
Installation: DIN rail, DIN35mm           Cable:1*25mm,2*25mm

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
