32A AC Contactor 3p 4p Changeover Reversing Contactor

Prod Model:	CC1-32N
Export Market:	Global

Product Description

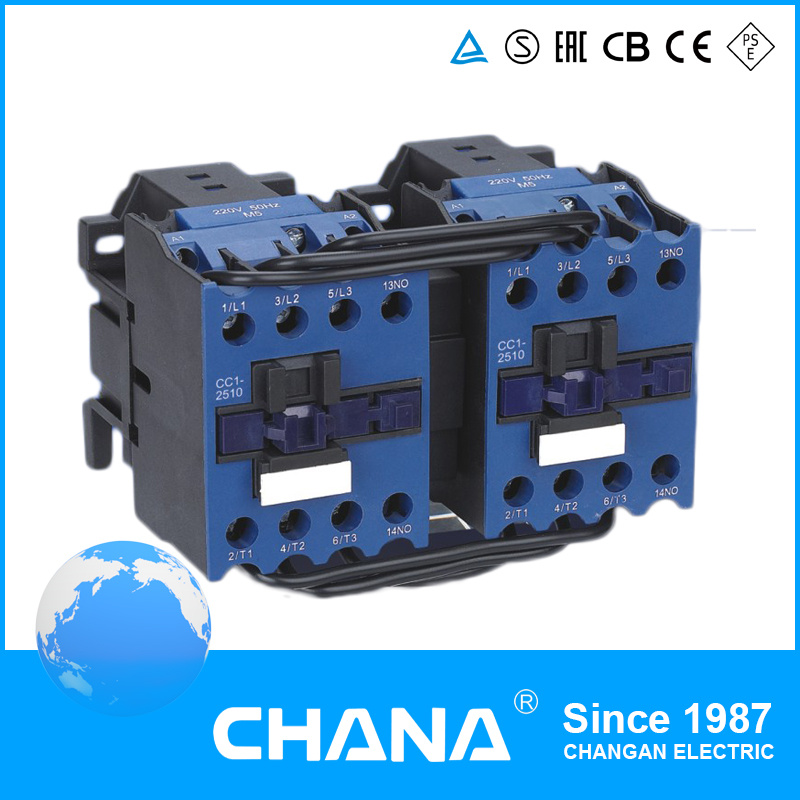

CC1-N Reversing/Change-over Type Contactor

1. Description

Application: Remote making & breaking circuits; Protect circuit From over-load when assembling with thermal over-load relay; Frequent start-up and control of AC contactor;
Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane and the vertical plane should not exceed ± 5°
Standard: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

2. Structure of the contactor

The contactors are composed of two horizontally mounted contactors through mechanical interlock.
The lateral-side interlock is mounted between the two contactors.

3. Specification


Standard			IEC/EN60947-1 IEC/EN60947-5-1
Model No.			CC1-09	CC1-12	CC1-18	CC1-25	CC1-32
Rated Conventional Heating Current		Ith (A)	20	20	32	40	50
Rated Voltage Ui(V)		Ui (V)	690	690	690	690	690
Rated Operation Current Ue=380/415V		AC3 le(A)	9	12	18	25	32
		AC4 le(A)	3.5	5	7.7	8.5	12
AC3 capacity of three-phase   squirrel-cage motor AC3(kW)		220/230V	2.2	3	4	5.5	7.5
		380/400V	4	5.5	7.5	11	15
		660/690V	5.5	7.5	10	15	18.5
Main circuit			3P or 4P

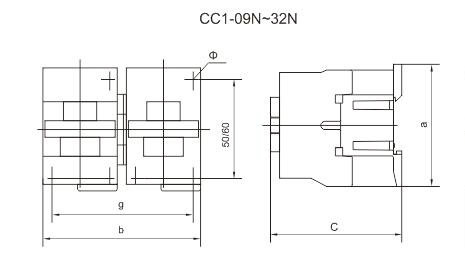

4. Dimension(mm)

Contactor model	a	b	c	g	h	Φ
CC1-09N~12N	78	105	82	95	-	4.5
CC1-18N	78	105	87	95	-	4.5
CC1-25N	90	125	95	111	-	4.5
CC1-32N	90	125	100	111	-	4.5
