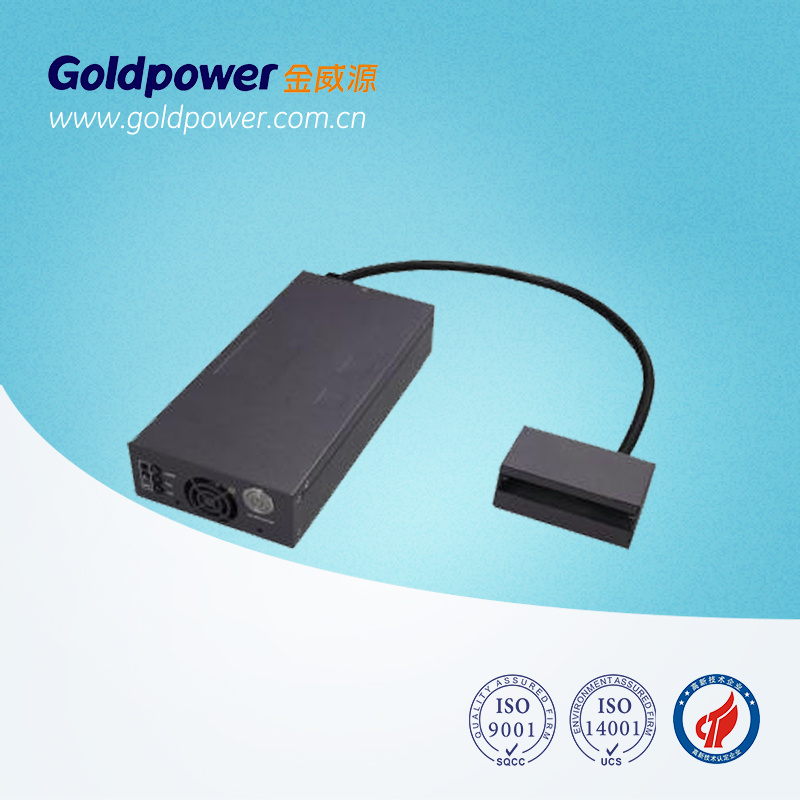

3300W DC Module Switching Power Supply for EV Charger

Name: 3300W DC Module Switching Power Supply for EV Charger
Brand: all-electronics-online.com
SKU: 726872112
Availability: InStock
Rating: 4.5 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPEV-AD332N-M-1A
Efficiency:	95%
Input Frequency:	45~65Hz
Power Factor:	0.99
Output Voltage:	200~420VDC
Output Current:	10A
Operating Temperature:	-30~55°c
Storage Temperature:	-40~70°c
Weight:	≤10kg
Humidity:	5~95%
Stabilized Voltage Precision:	±1%
Output Type:	Single
Warranty:	2 Years
Certification:	ISO
Output Power:	3300W
Input Voltage:	90~264VAC
Brand:	Goldpower

Product Description

3300W 50V Electric Vehicle Charger is High Power Density Power Supply.

Feature:

1. Compact structure, ultra high power density up to 25 W/in³

2. Soft-switching technology, high efficiency more than 95%.

3. Leading APFC tech (active power factor correction), power factor > 0.99

4. Multiple protection and safety regulation (CE/UL)

5. Supports hot plugging.

6. With communication interface CAN

7. Wide operating range:-30~+55ºC

Application:

1. On-board charging
2. Drones Charger
3. Robots Charger
4. Power Equipments Charger

Specification:

Model	GPEV-AD332N-M-1A
Power	3300W
Input voltage	90~264Vac
Input frequency	45~65Hz
Output voltage Range	294~378Vdc
Max. output current	10A
Power factor	≥0.99
THD	≤3%
Output efficiency	≥85%
Current sharing	≤±5%
MTBF	≥100,000hours
Ripple+Noise(Vp-p)	200mV
Turn-on time	8S
Operating temperature	-30~+55ºC
Acoustic Noise	55dB
Communication Port	CAN
Cooling	Forced cooling
Humidity	5~95%
Dimensions	240x200x50 (mm)
Weight	≤10KG
Protection	Input over/ under voltage, output over voltage,output limited power,output over current, short circuit,over temperature and fan fault protection

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
