330kv Power Transformer

Name: 330kv Power Transformer
Brand: all-electronics-online.com
SKU: 732852925
Availability: InStock
Rating: 4.3 (44 reviews)

Price:	US $ 5500/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	330kv
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model 1:	Sfz-125000/330
Model 2:	SFP-150000/330
Model 3:	Dfp-240000/330
Model 4:	Ssp-360000/330
Model 5:	SFP-370000/330
Model 6:	SFP-400000/330
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer

Product Description

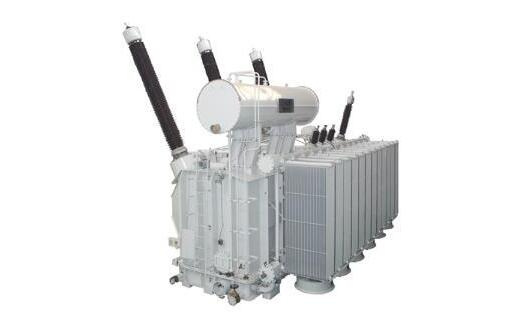

330KV power transformer

330KV series oil immersed power transformer, with advanced technologies, low noise, low partial discharge, high resistance to short circuit capacity; Electromagnetic calculation.

1. Potential distribution is effectively improved by applicance of software to calculate the impact and gradient potential distribution. The potential calculation is also done between arious parts of the coil including between the coil and coil and earthing.
2. Low loss
Application of electromagnetic optimizing design software to optimize the design of core and winding;
Correctly control the radiation of leakage flux into various parts of transformer on the base of calculation of magnetic flux leakage in order to adopt corresponding measures to effectively reduce the stray loss, and in the mean time effectively prevent local overheating to control equilibrium temperature rise, lower temperature rise of winding hot spots.
3. High resistance to short-circuit capacity;
4. Low partial discharge, improve service life.
5. Low noise
6. Low temperature rise.

Technical parameters and features

Model	Rated voltage(KV)		Vector Group	No-load losses(KW)	Load losses(KW)	Impedance voltage(%)	Total weight(t)	Dimension
Model	High voltage	Low voltage	Vector Group	No-load losses(KW)	Load losses(KW)	Impedance voltage(%)	Total weight(t)	L×W×H
SFZ-125000/330	330±10×1%	33	YNd5	88	365	11.75	175	8915×6610×8744
SFP-150000/330	363±2×2.5%	13.8	YNd11	113	424	15.1	150	13500×6690×8350
DFP-240000/330	363/√3±2×2.5%	20	YNd11	135	450	14	174	6070×6770×9560
SSP-360000/330	363±2×2.5%	15.75	YNd11	275	1000	16	278	11215×4000×6260
SFP-370000/330	363±2×2.5%	20	YNd11	210	835	14	268	15800×5766×9240
SFP-400000/330	363±2×2.5%	24	YNd11	215	915	14	272	16020×4850×9345
