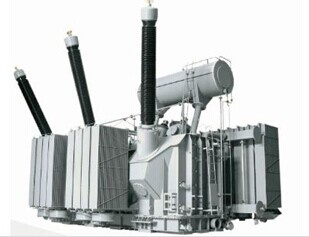

500kv Power Transformer
| Price: |
US $ 6000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
500KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model 1: |
Single Phase Self-Coupling Three Winding |
| Model 2: |
Three-Phase Dual Winding |
| Model 3: |
Single-Phase Three Winding |
| Model 4: |
Single-Phase Dual Winding |
| Application: |
Power |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
Product Description

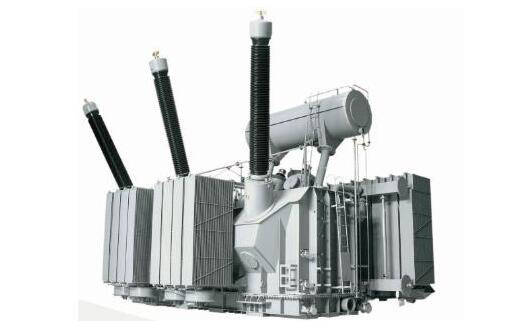

500KV Power Transformer
Technical parameters and features1. Low Loss and Low Noise
The core disc takes the high performance silicon steel sheet and the laminated type of the five-level step full oblique joint, which can provide the low no-load loss and noise. The oil tank takes the combined shielding technology of the magnetic shielding and the copper shielding, and the core structure part takes the measure to reduce the eddy current loss according to different positions in the leakage magnetic field, which reduces the load loss and solve the local over-temperature of the transformer radically.
2. Safe and Reliable Operation
Our company always pays more attention to the reliability of products, and the insulation design of the transformer reserves relative margin. The local discharge capacity of products is maintained under 100pC. In order to extend the service life of the transformer and improve the short circuit withstand capability, the cooling structure is designed rationally and the temperature rise of the transformer winding and the temperature rise of the oil surface is lower than the national standard for 5K. When the transformer is short circuit, the mechanical stress of the winding lead is low, and it combines with other short circuit withstand measure and strict production process guarantee. The 400kV and 500kV transformer of our company can undertake the examination under various conditions completely.
3. Powerful Name Plate Operating Capacity and Excellent Thermal Performance
At present, the oil-immersed power transformer usually controls the operation of the transformer with load by limiting the average temperature rise of the winding, to implement the thermal service life of the transformer. During the research and development, the control of the hot spot temperature is more important than the control of the average temperature for the ultrahigh voltage transformer with large capacity. For the transformer with the natural oil circulation, it is possible that the average temperature rise of the oil complies with the requirement, while the temperature rise of the hot spot exceeds its limit. Hence, it is necessary to detailed calculate and strictly control the hot spot temperature rise of the large-capacity transformer.
4. Convenient to Install and maintain
To reduce the workload for the site installation and ensure the smooth installation, it is not necessary to check the hang cover during the site installation, and all accessories are preloaded before the delivery. The secondary cable is deployed to the transformer main body before the delivery and led to the terminal box and the control box. Most of the 400kV and 500kV power transformer designed and manufactured by our company takes the natural oil circulation and air cooling and can provide 70% of the cooling capacity when the fan terminates.
5. Elaborate Operation
Make the winding by the tension device of the vertical coil winding machine, to reduce the winding margin, ensure the radial tension force of all windings, and improve the strength of the winding itself. Combine with the assembly process before the overall installation of the winding, to reduce the assemble tolerance of the transformer body and improve the overall strength of the transformer body. All of the force insulated parts are composed of the special hard cardboard, such as the winding block, to reduce the shrinkage of the insulated part. Upon completion of the winding, it will be stabilized by the kerosene vapor phase drying technology, and it will be carried out with the kerosene vapor phase drying for one time after the assembly of the transformer body, to ensure the insulation of various parts is reduced and the insulated parts is not reduced during the operation. All high voltage electrodes and metal structure parts are rounded, to prevent the point discharge.
Technical Parameters of 500KV Single Phase Self-coupling Three Winding Load Voltage Regulating Transformer| Rated Capacity(MVA) | Voltage Combination(KV) | Linkage Resustance | Impedance Voltage | No-load Loss | Load loss | No-load Current | Capacity Allocation |
| High Voltage | Intermediate Voltage | Low Voltage |
| 120 | 500/√3
525/√3
550/√3 | 230/√3
242/√3
(±8×1.25%) | 15.75 35
36
63
66 | IaOIO | high-intermediate 12 high-low 34-38 intermediate-low 20-22 | 50 | 200 | 0.2 | 120/120/40 |
| 167 | 60 | 240 | 0.2 | 167/167/60 |
| 250 | 65 | 340 | 0.1 | 250/250/80 |
| 333 | 80 | 430 | 0.1 | 333/333/100 |
| 120 | 500/√3
525/√3
550/√3 | 230/√3
242/√3
(±8×1.25%) | 15.75 35
36
63
66 | IaOIO | high-intermediate 12 high-low 42-46 intermediate-low 28-30 | 50 | 210 | 0.2 | 120/120/40 |
| 167 | 60 | 250 | 0.2 | 167/167/60 |
| 250 | 65 | 350 | 0.1 | 250/250/80 |
| 333 | 80 | 470 | 0.1 | 333/333/100 |
Technical parameters of 500KV three-phase dual winding transformer| Rated Capacity(MVA) | Voltage Combination | Linkage Resistan | No-load Loss | Load Loss | No-load Current | Impedance Voltage |
| High Voltage(KV) | Low Voltage(KV) |
| 240 | 525 550 | 13.8;15.75 | YNd11 | 100 | 705 | 0.25 | 14 |
| 300 | 13.8;15.75;18 | 125 | 830 | 0.25 | 14 |
| 360 | 15.75;18;20 | 150 | 950 | 0.20 | 14 |
| 420 | 15.75;18;20 | 160 | 1010 | 0.20 | 14 |
| 480 | 15.75;18;20 | 180 | 1120 | 0.20 | 14 |
| 600 | 15.75;18;20;24 | 210 | 1410 | 0.15 | 14 |
| 720 | 18;20;24 | 260 | 1620 | 0.15 | 14 |
| 840 | 20;24 | 300 | 1740 | 0.10 | 14 |
Established in 1996, predecessor Xi' An TopRank Electric Industry Co., Ltd. Located in known to the world civilization, the ancient capital of Xi' An, Shanxi Province, China. Mainly commitment consulting, purchasing and export business to renewable energy products, energy-saving products, Power Generation, Transmission & Distribution related Projects and equipment.
Since its inception, uphold the customers want, integrity management, holding with customers solidarity, cooperation, open up, operation and development purposes, has become the core supplier to Malaysia Toshiba Transmission & Distribution Asia Systems Co., Ltd. In China.
With the progress of globalization, we continue to integrate quality factory resources dedicated to beauty supply platform material at higher prices for domestic and foreign demand. If you are overseas companies, potential product sourcing in China, we will be your best choice; , we will be your best choice if you have a product, hoping to find the right agency.
We look forward to working with you!
