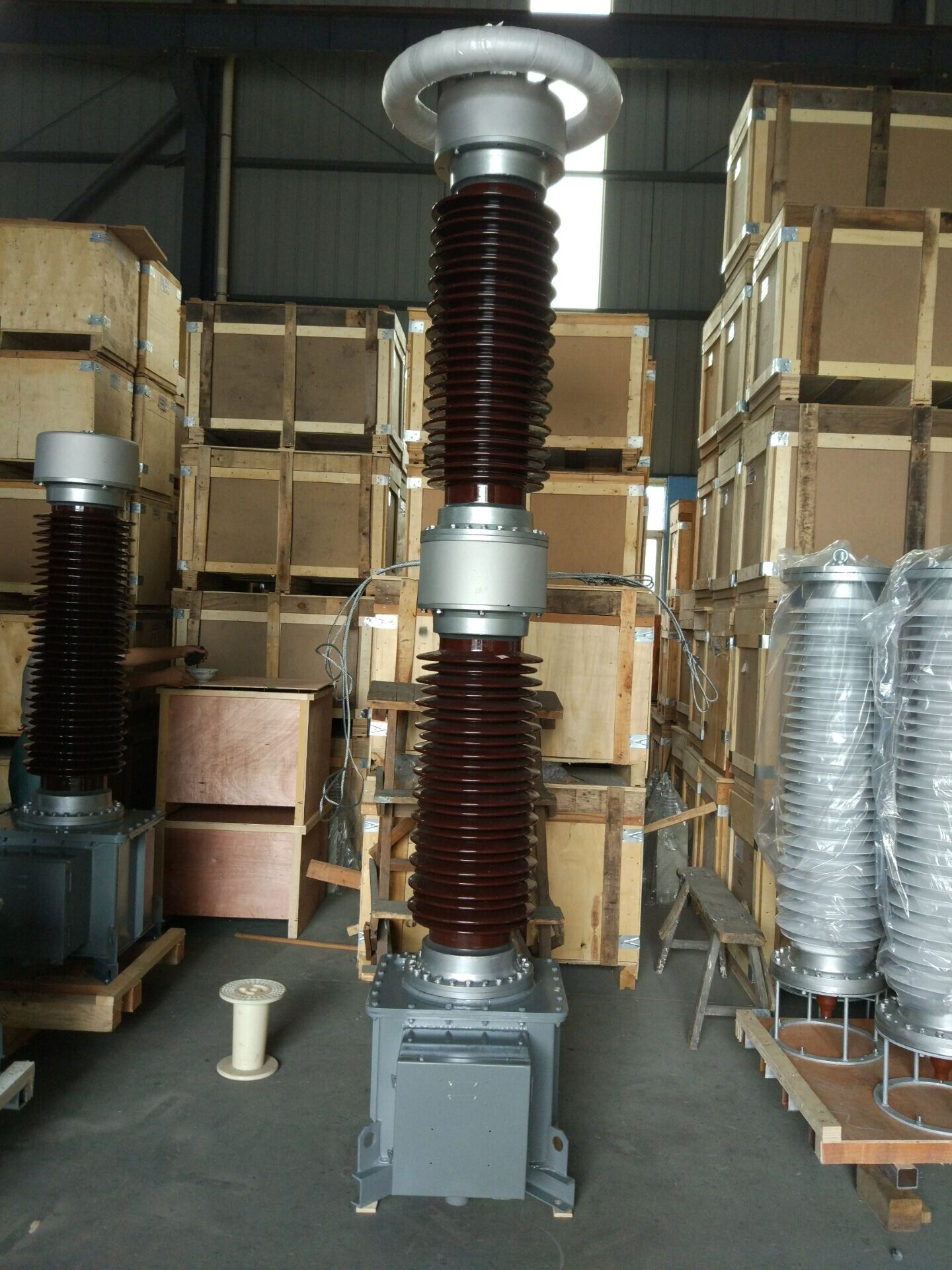

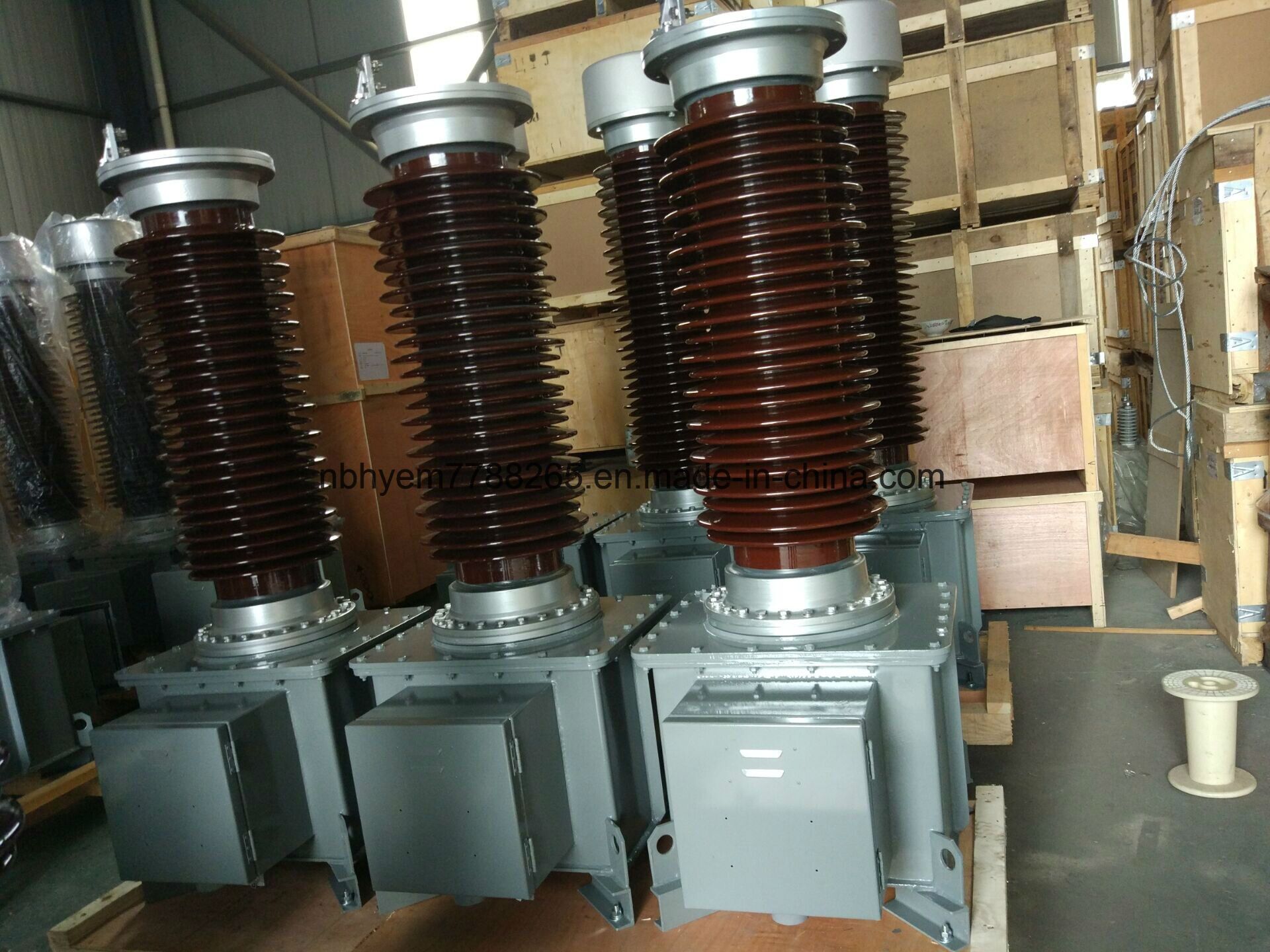

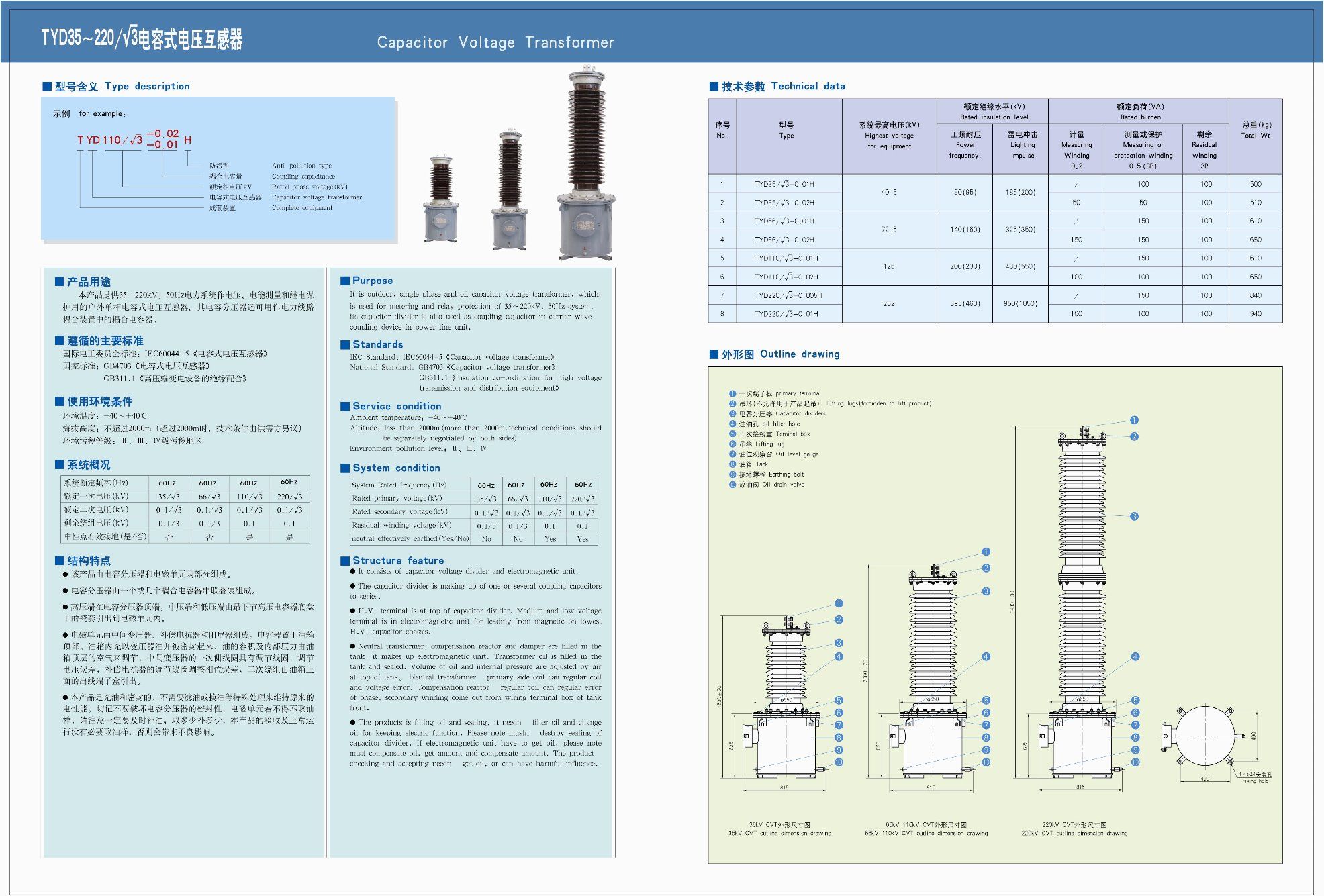

33kv/69kv/138kv 60Hz/50Hz Outdoor Capacitor Voltage Transfroemr with Grouping Box
| Price: |
US $ 3000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
TYD |
| Application: |
Instrument |
| Type: |
Voltage Transformer |
| Phase: |
Single |
| Insulating Medium: |
Capacitor |
Product Description
| CAPACOTR Voltage Transformer 138 kV |
|---|
| N° | Description | Unit | Value Required
| Guaranteed
|
|---|
| 1.0.0 | General Data | | | |
| 1.1.0 | Manufacturer | | Indicate | HEMG |
| 1.2.0 | Model | | Indicate | Capacitive |
| 1.3.0 | Year of fabrication | | Indicate | 2016 |
| 1.4.0 | Country of origin | | Indicate | CHINA |
| 1.5.0 | Reference | | Indicate | IEC61869-5:2011 |
| 1.6.0 | Altitude of operation | msnm | 2000 | 2000 |
| 1.7.0 | Location | | Forest | Forest |
| 1.8.0 | Type of installation | | Exterior | Exterior |
| 1.9.0 | Standard of manufacture | | IEC 60044-5, IEC 60358 | IEC 60044-5, IEC 60358 |
| 1.10.0 | Type of casing | | Brown porcelain, IEC 61264 | Brown porcelain, IEC 61264 |
| 1.11.0 | Pollution level | mm/kV | 31 | 31 |
| | System Parameters | | | |
| 2.0.0 | Operating voltage | KV | 138 | 138 |
| 2.1.0 | Maximum voltage of material (Um) | KV | 170 | 170 |
| 2.2.0 | Rated withstand voltage at industrial frequency (Ud) | KV | 325 | 325 |
| 2.3.0 | Rated withstand voltage by lightning impulse | KV | 750 | 750 |
| 2.40 | Assigned frequency (Fr) | Hz | 60 | 60 |
| 2.5.0 | Assigned voltage factor | | | |
| a) Permanent | | 1.2 | 1.2 |
| b) During 30 sec | | 1.5 | 1.5 |
| 2.6.0 | Total capacity | pF | 12500 | 12500 |
| 2.7.0 | High voltage capacitor (C1) | pF | Indicate | 14937 |
| 2.8.0 | Intermediate voltage capacitor (C2) | pF | Indicate | 76625 |
| 2.9.0 | Rated intermediate voltage in open circuit for HF coupling box | KV | Indicate | 13 |
| 2.10.0 | Number of secondary windings | | 3 (A measurement core and two for protection) | 3 |
| 2.11.0 | Transformation ratio | | 138/3 : 100/3: 100/3: 100/3 | 138/√3/0.1/√3/0.1/√3/0.1/√3 kV |
| 2.12.0 | Reference frequency range | | Indicate | 60+-1.5HZ |
| a) Precision class of measurement | % | <= 0.2 | 0.2 |
| b) Precision class of protection | % | 5P | 3P |
| 2.13.0 | Burden | VA | 30 | 30 |
| 2.14.0 | Accuracy class between 25% and 100% of the precision load 0.8 power factor lag | | Indicate | 0.2/3P |
| a) between 5% and 80% of the rated voltage | | 5P | 3P |
| b) between 80% and 120% of the rated voltage | | <= 0.2 | 0.2 |
| c) between 120% and 150% of the rate voltage | | 5P | 3P |
| 2.15.0 | Precision load | | | |
| a) Winding 1 - measure | VA | 30 | 30 |
| b) Winding 2 - Protection | VA | 30 | 30 |
| c) Simultaneous | VA | 30 | 30 |
| d) Thermal power limit | VA | Indicate | 800 |
| 2.16.0 | Rated voltage of the system | | | |
| a) Primary (Upn) | KV | 138/√3 | 138V3 |
| b) Secondary (Usn) | V | 100/√3 | 100V3 |
| 2.17.0 | Arcing distance | Mm | | 1860 |
| 2.18.0 | Creepage distance according to IEC 60815 | | | |
| a) For heavy pollution level | mm/kv | 31 | 31 |
| 2.19.0 | Short-circuit current 1 sec characteristics | kA | 40 | 40 |
| 2.20.0 | Dynamic current peak | kA | Indicate | 80 |
| 3.0..0 | MECHANICAL PARAMETERS | | | |
| 3.1.0 | Total weight | Kg | Indicate | 700 |
| 3.2.0 | Internal insulation for capactive bodies | | Synthetic oil | Synthetic oil |
| 3.3.0 | Total isolation quantity in electromagnetic unit | L | Indicate | 90 |
| Internal insulation for electromagnetic unit | | Mineral oil | Mineral oil |
| 3.4.0 | Packaging used for mounting electromagnetic unit | | Indicate | Exporting Package |
| 3.5.0 | Diaphragm type | | Indicate | polypropylene film |
| 3.6.0 | Protection grade IP65 for each terminal | | si | YES |
| 3.7.0 | Seismic data (high condition) | | Indicate | 138KV/2000M |
| a) Natural frequency (high condition) | Hz | Indicate | 60HZ+-1.5HZ |
| b) Critical damping coefficient (high condition) | % | Indicate | 0.3 |
| c) Horizontal acceleration | g | 0.5 | 0.5 |
| d) Vertical acceleration | g | 0.2 | 0.2 |
| 3.8.0 | Permissilbe load on terminals | | | |
| a) Static | N | Indicate | 2000 |
| b) Dynamic | N | Indicate | 2000 |
| 3.9.0 | Maximum allowed load by mounting pedestal-type wave trap | N | Indicate | 30 |
| 3.10.0 | Maximum allowed effort in porcelain | daN/mm2 | Indicate | 20 |
| 3.11.0 | Mean time between failure (MTBF) | Days | Offer value | 1825 |
| 3.12.0 | Mean time to repair (MTTR) | Days | Offer value | 365 |
| 4.0.0 | ACCESSORIES FOR ASSEMBLY | | | |
| 4.1.0 | Grouping box secondary circuit and electrical system included | | Yes | YES |
| 4.2.0 | Central box of circuits for three voltage transformers | | Yes | YES |
| 4.3.0 | Micro switch for secondary ciruit protection (MCB) | | Yes, needs to be supplied | YES |
| a) Rated current | A | 6 | 6 |
| b) Type curve | | Z | Z |
| c) Auxiliary contact for position indication and tripping | | Yes | YES |
| 4.4.0 | Protection device ferroresonance | | Yes | YES |
| 4.5.0 | Sampling valve for mineral oil in electromagnetic box | | Gate type | GATE TYPE |
| 4.6.0 | Oil gauge | | Yes | YES |
| 4.7.0 | Type of plate for alternative corrosive area, low relief | | Anodized aluminium | ALUMINIUM |
| 4.8.0 | Ground terminal | | Yes | YES |
| 4.9.0 | Connecting elements for communication system (carrier system) | | | |
| a) Coil drain | | No | No |
| b)Descargador | | No | No |
| c) Grounding blade high frequency signal | | No | No |
| 4.10.0 | Grounding blade of medium voltage to measure capacitance C1, C2 | | Yes | Yes |
| 4.11.0 | Mounting pedestal for wave trap | | No | No |
| SPECIFIATION OF CAPACITOR Voltage Transformer 60 kV |
|---|
| N° | Description | Unit | Value Required
| Guaranteed
|
|---|
| 1.0.0 | General Data | | | |
| 1.1.0 | Manufacturer | | Indicate | HEMG |
| 1.2.0 | Model | | Indicate | Capacitive |
| 1.3.0 | Serial numbers | | Indicate | CVT2015001 |
| 1.4.0 | Country of origin | | Indicate | CHINA |
| 1.5.0 | Reference | | Indicate | IEC61869-5:2011 |
| 1.6.0 | Altitude of operation | msnm | 2000 | 2000 |
| 1.7.0 | Location | | Forest | Forest |
| 1.8.0 | Type of installation | | Exterior | Exterior |
| 1.9.0 | Standard of manufacture | | IEC 60044-5, IEC 60358 | IEC 60044-5, IEC 60358 |
| 1.10.0 | Type of casing | | Brown porcelain, IEC 61264 | Brown porcelain, IEC 61264 |
| 1.11.0 | Pollution level | Mm/kv | 31 | 31 |
| | Parameters of system | | | |
| 2.0.0 | Operating voltage | KV | 60 | 60 |
| 2.1.0 | Maximum voltage of material (Um) | KV | 72.5 | 72.5 |
| 2.2.0 | Rated withstand voltage at industrial frequency (Ud) | KV | 140 | 140 |
| 2.3.0 | Rated withstand voltage by lightning impulse | KV | 350 | 350 |
| 2.40 | Assigned frequency (Fr) | Hz | 60 | 60 |
| 2.5.0 | Assigned voltage factor | | | |
| a) Permanent | | Indicate | 1.2 |
| b) During 30 sec | | Indicate | 1.5 |
| 2.6.0 | Total capacity | pF | Indicate | 20000 |
| 2.7.0 | High voltage capacitor (C1) | pF | Indicate | 32012 |
| 2.8.0 | Intermediate voltage capacitor (C2) | pF | Indicate | 53300 |
| 2.9.0 | Rated intermediate voltage in open circuit for HF coupling box | KV | Indicate | 13 |
| 2.10.0 | Number of secondary windings | | 3 (A measurement core and two for protection) | 3 |
| 2.11.0 | Transformation ratio | | 60/3 : 100/3: 100/3: 100/3 | 60/√3/0.1/√3/0.1/√3/0.1/√3 kV |
| 2.12.0 | Reference frequency range | | Indicate | |
| a) Precision class of measurement | % | <= 0.2 | 0.2 |
| b) Precision class of protection | % | 5P | 3P |
| 2.13.0 | Burden | VA | 30 | 30 |
| 2.14.0 | Accuracy class between 25% and 100% of the precision load 0.8 power factor lag | | Indicate | 0.2/3P |
| a) between 5% and 80% of the rated voltage | | 5P | 3P |
| b) between 80% and 120% of the rated voltage | | <= 0.2 | 0.2 |
| c) between 120% and 150% of the rate voltage | | 5P | 3P |
| 2.15.0 | Precision load | | | |
| a) Winding 1 - measure | VA | Indicate | 30 |
| b) Winding 2 - Protection | VA | Indicate | 30 |
| c) Simultaneous | VA | Indicate | 30 |
| d) Thermal power limit | VA | Indicate | 800 |
| 2.16.0 | Rated voltage of the system | | | |
| a) Primary (Upn) | KV | 60/√3 | 60V3 |
| b) Secondary (Usn) | V | 100/√3 | 100V3 |
| 2.17.0 | Arcing distance | Mm | | 930 |
| 2.18.0 | Creepage distance according to IEC 60815 | | | |
| a) For heavy pollution level | mm/kv | 31.5 | 31.5 |
| 2.19.0 | Corriente de corto circuito a 1 S | kA | 31.5 | 31.5 |
| 2.20.0 | Dynamic current peak | kA | Indicate | 80 |
| 3.0..0 | MECHANICAL PARAMETERS | | | |
| 3.1.0 | Total weight | Kg | Indicate | 450 |
| 3.2.0 | Internal insulation for capactive bodies | | Synthetic oil | Synthetic oil |
| 3.3.0 | Total isolation quantity in electromagnetic unit | L | Indicate | 90 |
| Internal insulation for electromagnetic unit | | Mineral oil | Mineral oil |
| 3.4.0 | Packaging used for mounting electromagnetic unit | | Indicate | Exporting Package |
| 3.5.0 | Diaphragm type | | Indicate | polypropylene film |
| 3.6.0 | Protection grade IP65 for each | | si | YES |
| 3.7.0 | Seismic data (high condition) | | Indicate | 60KV/2000M |
| a) Natural frequency (high condition) | Hz | Indicate | 60HZ+-1.5HZ |
| b) Critical damping coefficient (high condition) | % | Indicate | 0.3 |
| c) Horizontal acceleration | g | Indicate | 0.5 |
| d) Vertical acceleration | g | Indicate | 0.2 |
| 3.8.0 | Permisible load on terminals | | | |
| a) Static | N | Indicate | 2000 |
| b) Dynamic | N | Indicate | 2000 |
| 3.9.0 | Maximum allowed load by mounting pedestal-type wave trap | N | Indicate | 30 |
| | | | |
| 3.10.0 | Maximum allowed effor in porcelain | daN/mm2 | Indicate | 20 |
| 3.11.0 | Mean time between failure (MTBF) | Days | Offer value | 1825 |
| 3.12.0 | Mean time to repair (MTTR) | Days | Offer value | 365 |
| 4.0.0 | ACCESSORIES FOR ASSEMBLY | | | |
| 4.1.0 | Grouping box secondary circuit and electrical system included | | Yes | YES |
| 4.2.0 | Central box of circuits for three voltage transformers | | Yes | YES |
| 4.3.0 | Micro switch for secondary circuit protection (MCB) | | Yes, needs to be supplied | YES |
| a) Rated current | A | Indicate | 6 |
| b) Type curve | | Z | Z |
| c) Auxiliary contact for position indication and tripping | | Yes | YES |
| 4.4.0 | Protection device ferro-resonance | | Yes | YES |
| 4.5.0 | Sampling valve for mineral oil in electromagnetic box | | Gate type | GATE TYPE |
| 4.6.0 | Oil gauge | | Yes | YES |
| 4.7.0 | Type of plate for alternative corrosive area, low relief | | Anodized aluminium | ALUMINIUM |
| 4.8.0 | Ground terminal | | Yes | YES |
| 4.9.0 | Connecting elements for communication system (carrier system) | | | |
| a) Coil drain | | No | No |
| b)Descargador | | No | No |
| c) Grounding blade high frequency signal | | No | No |
| 4.10.0 | Grounding blade of medium voltage to measure capacitance C1, C2 | | Yes | Yes |
| 4.11.0 | Mounting pedestal for wave trap | | No | No |
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
More >
Other Products with This Manufacturers
