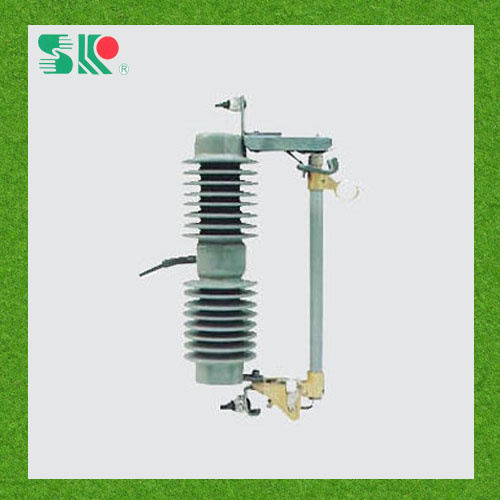

33kv Drop out Fuses Cutout (RW12)

Prod Model:	RW12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Porcelain (Ceramic)
Operation:	Manual Type
Installation:	Open Frame
Speed:	High-Speed Circuit Breaker
Structure:	Conventional Circuit Breaker
Arc-Extinguishing Medium:	Air
Function:	Ovp(Overvoltage Protection)
Certification:	CE
Breaking Capacity:	High Voltage Circuit Breakers
Type:	Cutout Fuse
Usaga:	Outdoor Network Protection

Product Description

1. Type: Fuse cutout, drop out fuse cutout XM-7

Drop out fuse cutout is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. XM series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

2. Specification:

Type: RW12 (XM-7)
Rated voltage(kV): 33
Rated current(A): 100, 200
Breaking current(A): 6300, 8000
Impuse voltage(kV): 170
Power-frequency withstand voltage(kv): 70
Creepage distance(mm): 720
Material: Porcelain
Weight(kg): 13(100A), 13.5(200A)
Dimensions(CM): 68*32.5*16.5

3. Welcome to contact us to more details. Some details could be ordered according to the requirement of customers.

4. Appearance and installation dimensions.
