33kv High Voltage Cutout Fuse Iec Standard

Name: 33kv High Voltage Cutout Fuse Iec Standard
Brand: all-electronics-online.com
SKU: 701065805
Availability: InStock
Rating: 4.4 (140 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	3/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-12
Markets:	North America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Material:	Porcelain
Rated Voltage:	33kv
Rated Current:	100A, 200A
Breaking Current:	6300A, 8000A
Impulse Voltage:	170 Bil
Leakage Distance:	820mm
Service:	OEM, ODM
Delivery:	as Required
Usaga:	High Voltage
Breaking Capacity:	High Voltage
Type:	Fuse
Shape:	as Picture Show

Product Description

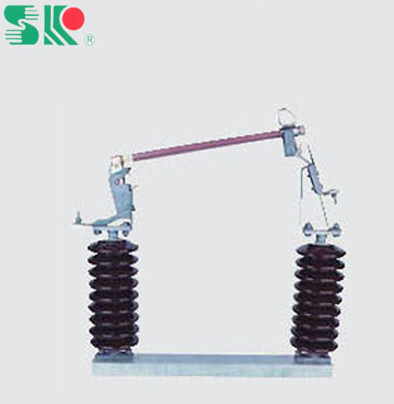

33kv High Voltage cutout Fuse is of outdoor used high voltage protective device. To be connect with incoming feeder of distribution transformer or distribution lines. SRF series mainly protect transformer or lines from short circuit and over load, and on/off loading current.

Type	Rated voltage (KV)	Rated current (A)	Breaking current (A)	Impulse voltage (BIL)	Power-frequency withstand voltage (KV)	Leakage distance (mm)	Weight (KG)	Dimensions
XM-12	33	100	6300	170	70	820	26	513112.5
XM-12	33	200	8000	170	70	820	28	513112.5

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
