33kv Single Core 800mm2 Copper Wire Screen Power Cable

Prod Model:	Single core
Core:	Single Core
Section Area:	240mm2
Rated Voltage:	33kv
Type:	Power Cable
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	RoHS
Brand:	Yifang

Product Description

 33kv 800mm2 single core xlpe power cable

1. Application:
This 800mm2 single core power cable at 33kv applies for construction, industrial, etc, which can be installed  undergound use, in duct, etc.

2. Construction:

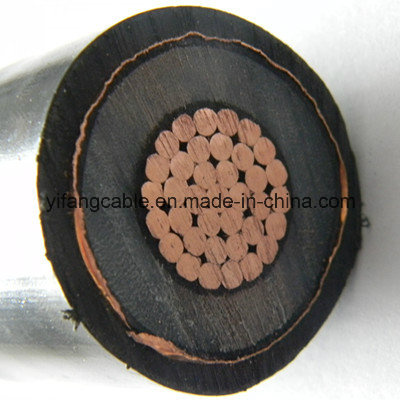

The picture above is the cable with copper wire screen, you can also choose the copper tape instead.
This kind of cables with aluminium wire/tape armoured are also available for us.

3. Pruduction:
Production for the 800mm2 or other sizes single core/multi-cores power cables can be arrranged according to Chinese GB standard, Internation IEC standard, Ameica ASTM standard, British BS standard, etc. You special requirement can also be satisfied by us.

4. Production show:
    For Bangladesh BPDB company.


5. Company introduction:

Yifang Electric Group Inc.(formerly Zhengzhou Yifang Cable Co.,Ltd) was established in 2001, whose main products are cables and wires . It is a large stock of high-tech enterprises with registration capital of 100 million RMB. The company has advanced and complete cable production equipment 150 sets. Technical capacity reached international advanced level, the annual production capacity achieve 1~1.5 billion RMB.
Our products involve low, medium and high voltage,up to 46kv, including PE/PVC/XLPE insulated power cable, ABC overhead cable, building wire, control cable, rubber cable, welding cable, bare conductor etc.
After years' development, we have gained good reputation from our clients in Asia, Afria, Latin-America, Middle-east, Europe, etc,  and become one of the powerful manufacturer and exporters in China.
Welcome to China, welcome to Yifang Cable!

Class 2 stranded conductors for single-core and multi-core cables
1	2	3	4	5	6	7	8	9	10
Nominal crosssectional area	Minimum number of wires in the conductor						Maximum resistance of conductor at 20ºC
	Circular		Circular compacted		Shaped		Annealed copper conductor		Aluminium or aluminium alloy conductor
	Cu	Al	Cu	Al	Cu	Al	Plain wires	Metal-coated wires
mm2							Ω/KM	Ω/KM	Ω/KM
0.5	7						36	36.7
0.75	7						24.5	24.8
1	7						18.1	18.2
1.5	7		6				12.1	12.2
2.5	7		6				7.41	7.58
4	7		6				4.61	4.7
6	7		6				3.08	3.11
10	7	7	6	6			1.83	1.84	3.08
16	7	7	6	6			1.15	1.16	1.91
25	7	7	6	6	6	6	0.727	0.734	1.2
35	7	7	6	6	6	6	0.524	0.529	0.868
50	19	19	6	6	6	6	0.387	0.391	0.641
70	19	19	12	12	12	12	0.268	0.27	0.443
95	19	19	15	15	15	15	0.193	0.195	0.32
120	37	37	18	15	18	15	0.153	0.154	0.253
150	37	37	18	15	18	15	0.124	0.126	0.206
185	37	37	30	30	30	30	0.0991	0.1	0.164
240	37	37	34	30	34	30	0.0754	0.0762	0.125
300	61	61	34	30	34	30	0.0601	0.0607	0.1
400	61	61	53	53	53	53	0.047	0.0475	0.0778
500	61	61	53	53	53	53	0.0368	0.0369	0.0605
630	91	91	53	53	53	53	0.0283	0.0286	0.0469
800	91	91	53	53			0.0221	0.0224	0.0367
1000	91	91	53	53			0.0176	0.0177	0.0291
