33kv XLPE Insulated 3 Core 150mm2 Power Cables

Name: 33kv XLPE Insulated 3 Core 150mm2 Power Cables
Brand: all-electronics-online.com
SKU: 710853892
Availability: InStock
Rating: 4.7 (41 reviews)

Price:	US $ 0.89/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Sheath Color:	Black
Application:	Underground
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Voltage:	Medium Voltage

Product Description

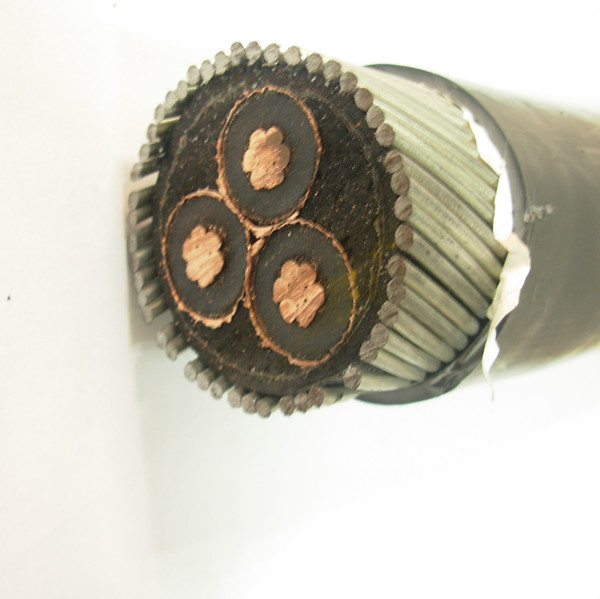

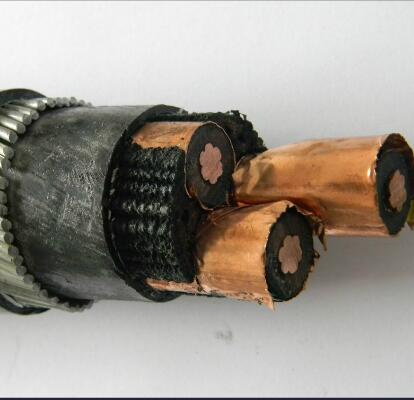

Medium Voltage 22/35kv XLPE Insulated Power Cable
Power cable
Copper or aluminum
XLPE insulation
Copper tape or copper wire screen, aluminum wire armoured
PVC or PE sheath

The power cable
1. Standards
The Products are mainly complying with IEC 60502 standard, also can be produced according to OEM requirements and others standars, Such as BS Standard, DIN standard, ASTM standard, etc.
2. Voltage
Voltage grade is up to 35KV,
3. Construction
Copper or aluminum conductor
Copper tape sheild
XLPE insulated
Steel wire or steel tape or copper tape armoured
PVC sheath
4. Service conditions
Long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 Degrees.
5. Laying conditions
For laying under ground with large different altitude, be able to bear external machanical force and moderate pulling force.

We can also supply the OEM and customized products according to customer's requirement

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
