350mA Constant Current LED Driver for LED Commercial Lighting

Name: 350mA Constant Current LED Driver for LED Commercial Lighting
Brand: all-electronics-online.com
SKU: 756185115
Availability: InStock
Rating: 4.7 (26 reviews)

Price:	US $ 2.95-3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-622-CC-350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	15 Max
Output:	Constant Current
Input Voltage:	85-265V
IP Rating:	IP20 Non Waterproof, Indoor
Warranty:	2 Years Warranty
Application:	for Spot Light, Down Light, Panel Light
Size:	522721.5mm
Case:	Plastic
Output Current:	350mA
Operating Temperature:	-25~40 Degree
Usage:	Construction
Driving Method:	LED Constant Current
Circuit Structure:	Electronic Step-down Transformer
Output Type:	Constant Current DC350mA 24~28V
Brand:	Hyrite

Product Description

350mA Constant Current LED Driver for LED commercial lighting

Brief Introduction for Constant Current Driver:
-Designed for spot light, down light, wash light, or other signage, decoration, lighting applications
-Class 2 power supply
-Constant voltage or constant current output, plastic case, IP20
-Build-in thermal protection, short circuit protection
-Input 100V-260VAC(50/60Hz)
-Operating temperature:Max.50ºC
-Operating surface temperature:Max.70ºC

Remarks for Constant Current Driver:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 7-15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping for Constant Current Driver:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Technical Specification for Constant Current Driver:

Model no.	OS-622-CC-350
Model series	OS
Input voltage	100-260 VAC /170-260 VAC 50/60 Hz
Power	14W
Output type	Constant current
Power factor	Low
Output voltage	24-48 V max
Output current	350mA
Typical LED loading	7~14 * 1W max
Operating temperature	-25~50ºC
Installation	Indoor
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	874320 mm
Weight(kg)	0.1000

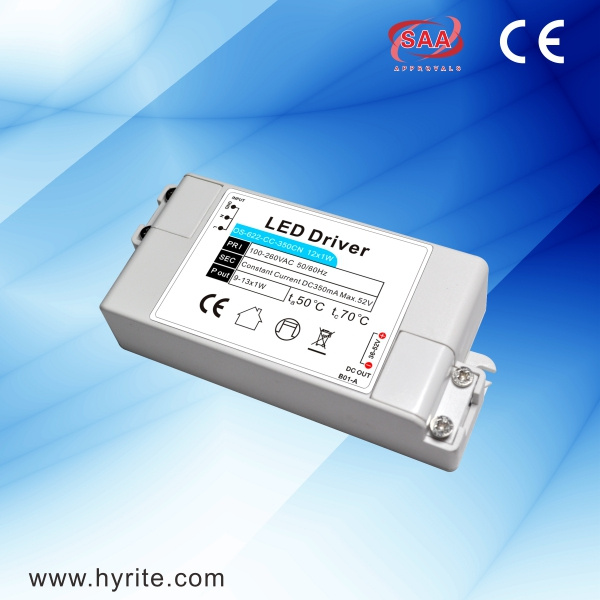

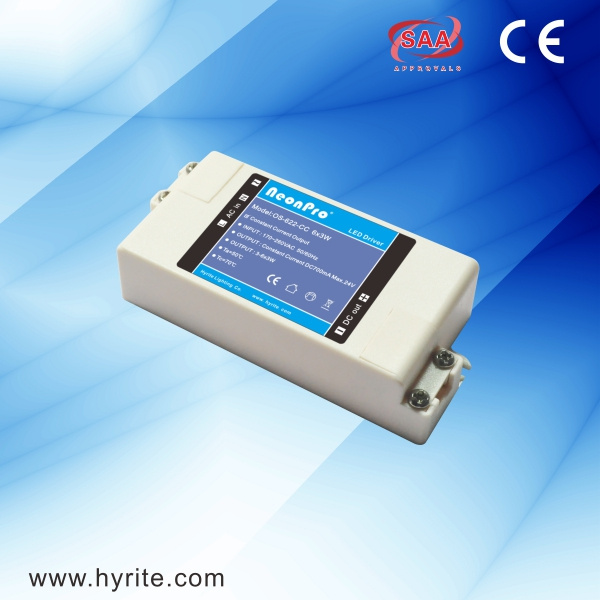

Pictures for Constant Current Driver:

More picture about our Hyrite Lighting:

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
