0.35dB Low Loss Takfly 12 Fiber MPO MTP Fiber Jumper

Name: 0.35dB Low Loss Takfly 12 Fiber MPO MTP Fiber Jumper
Brand: all-electronics-online.com
SKU: 815374025
Availability: InStock
Rating: 4.3 (97 reviews)

Price:	US $ 0.1-100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO patch cord
Item Name:	12 Fiber MPO-LC Jumper
Cable Type:	Om3
Keywords:	MPO Trunk Cable/MPO Patch Cord/MPO Cable
Polish Type:	LC/Upc
Insert Loss:	Standard: 0.75dB,Elite:0.3dB
Jacket Material:	LSZH
Customized:	Available
Application:	Probe
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	CCC

Product Description

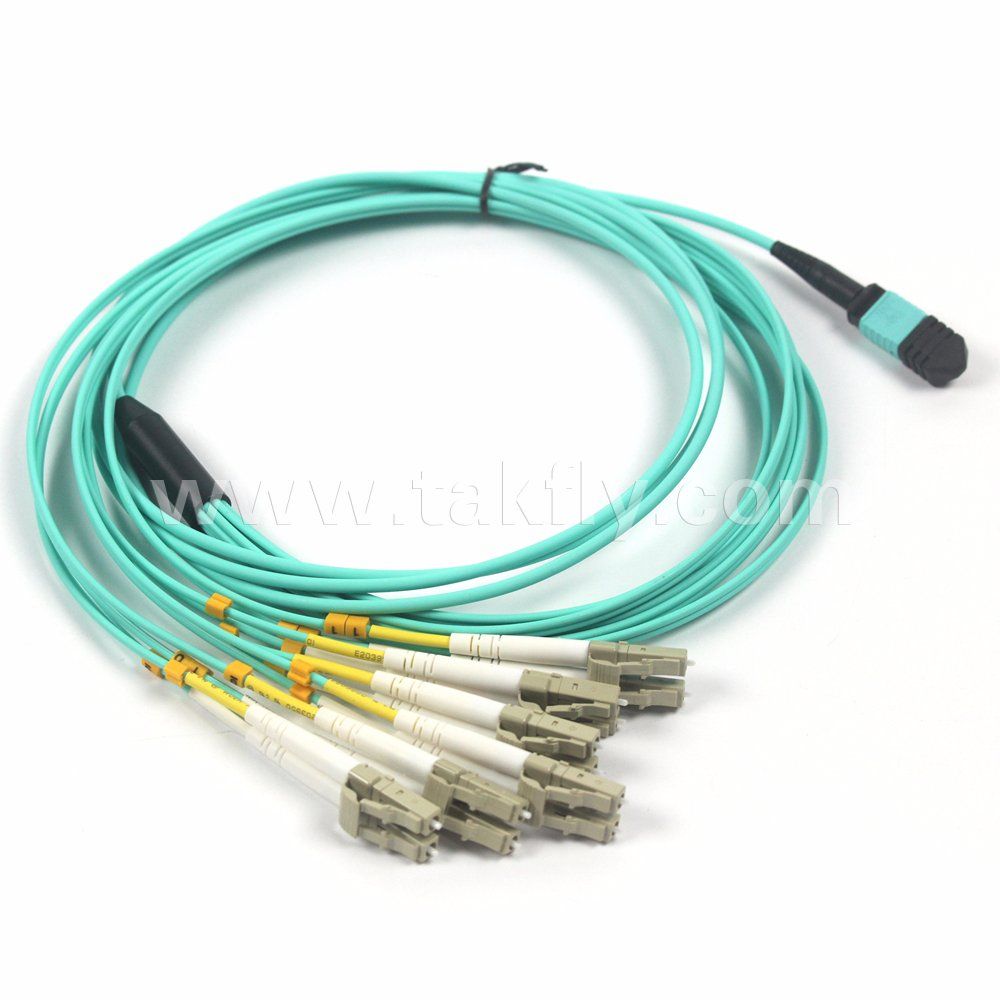

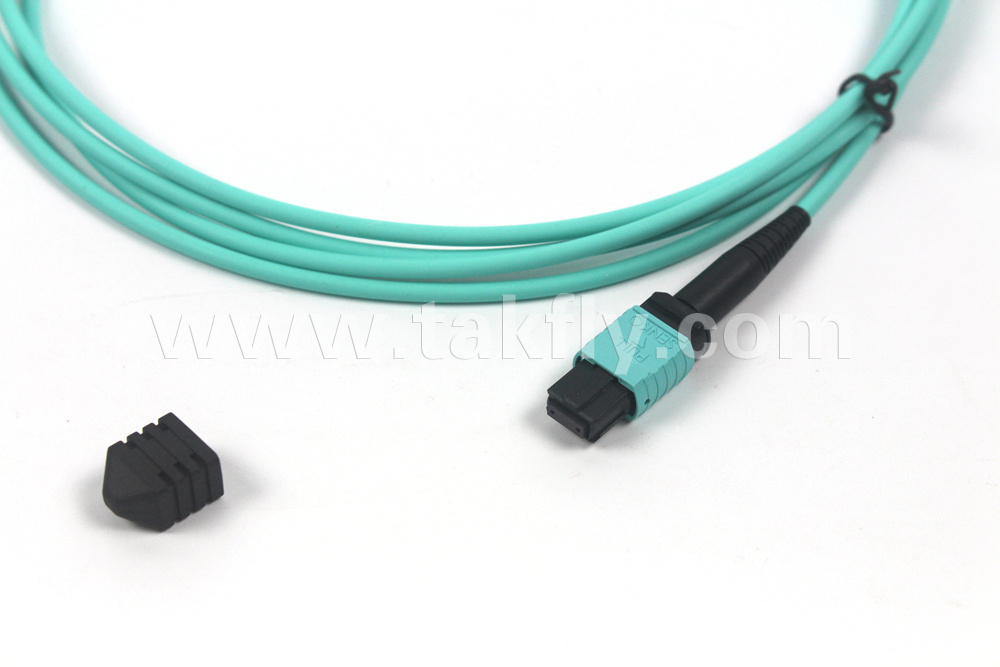

0.35dB Low Loss Takfly 12 Fiber MPO MTP Fiber Jumper

MPO MTP patch cord, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

MPO MTP Features
Fiber Type: OS2/OM3/OM4
Fiber Count: 4/8/12/24 core
Cable Type: Bare fiber/Flat/Round

Spec

Item		Parameter
MPO/MTP Connector		Standard SM	Low Loss(Elite) SM	Standard MM	Low Loss MM
Insertion Loss	Typical	0.35dB	0.20dB	0.35dB	0.20dB
	Maximum	0.75dB	0.35dB	0.60dB	0.35dB
Return Loss		≥60 for APC (8 Angle Polish)		≥20 for PC
		≥50 for PC		--
Male/Female		Male: With Pins, Female: Without Pins
Tensile Strength		≤0.3 (Max 66N)
Vibration		≤0.3 (10 ~ 55Hz)
Thermal Cycle		≤0.3 (-40 ~ 75ºC, 21Cycles)

What we can offer you??
Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time toclients Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR

Why choose us
* CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.

Any question about MPO MTP Patchcord,please leave me an inquiry or contact me directly.
