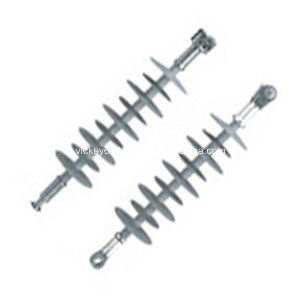

35kv Composite Suspension Insulator

Name: 35kv Composite Suspension Insulator
Brand: all-electronics-online.com
SKU: 741192585
Availability: InStock
Rating: 4.6 (54 reviews)

Price:	US $ 1-20/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	35KV
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Application:	High-voltage
Material:	Composite Polymer
Structure:	Suspension Insulator
Type:	B Type Insulator
Size Of Bearing Capacity:	70-120kn
Brand:	Viccia

Product Description

1 Place of origin: Fujian China
2 Type: Suspension Insulator
3 Material: Polymer
4 Application: High Voltage Lines
5 Feature:
Good hydrophobicity
6 Color: Red, light grey or as per customer's requirement.

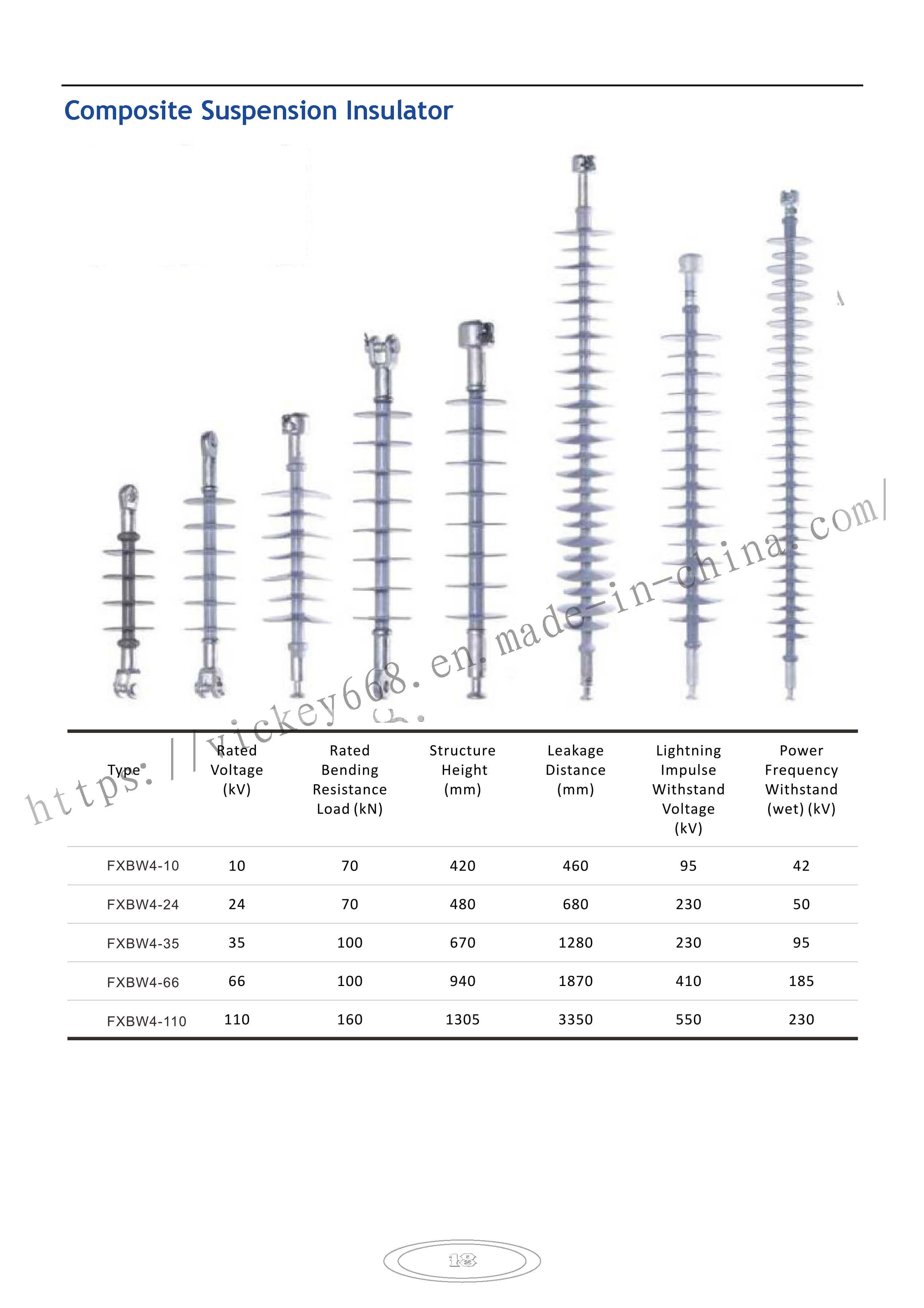

Type	Rated voltage KV	Specified mechanical load KN	Socket and ball size	Section height H, mm	Min arcing distance h, mm	Large shed diameter D, mm	Small shed diameter d, mm	Shed spacing B, mm	Min nominal creepage distance L, mm	Lighting impulse withstand voltage
FXBW3-35/70	35	70	16	610±5	430	130	95	45	1050	230
FXBW4-35/70	35	70	16	650±5	450	130	95	45	1050	230

VICCIA Electrical Co., Ltd., a member of Fuzhou Light Industry Co., Ltd, is located in Sanming City of Fujian Province. We specialized in manufacturing and supplying multiple products, particularly in the field of electrical appliance, such as Fiberglass ladder and Aluminum ladder, high and low voltage product, power fittings and so on. Started with the business of international trading and sales agent of domestic supplier and overseas buyer, we now have skilled and experienced engineer team in design and manufacturing, as well as trained talents in business and management which enables us to respond effectively to the demands of market and our customers at all times.

The slogan of VICCIA is to provide the highest quality services to each customer, and to provide products to each customer with reasonable price and good quality. At the same time, we can develop and manufacture gratifying products in accordance with customers' certain requirements.

Put your trust in VICCIA, let us work together and achieve more.
