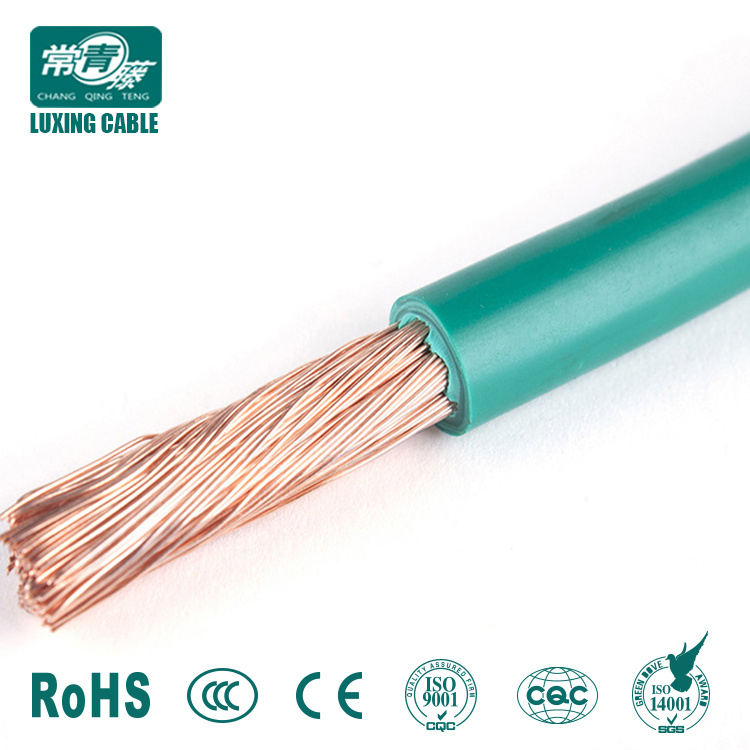

35mm Ground Cable/Ground Cable/35mm Copper Cable

Name: 35mm Ground Cable/Ground Cable/35mm Copper Cable
Brand: all-electronics-online.com
SKU: 836945395
Availability: InStock
Rating: 4.9 (141 reviews)

Price:	US $ 2/Meter
Min Order:	1/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BV, VV, YJV.
Product Name:	35mm Ground Cable/Ground Cable/35mm Copper Cable
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conducto
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen (a
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	BV, VV, Yjv...
Brand:	Chang Qing Teng

Product Description

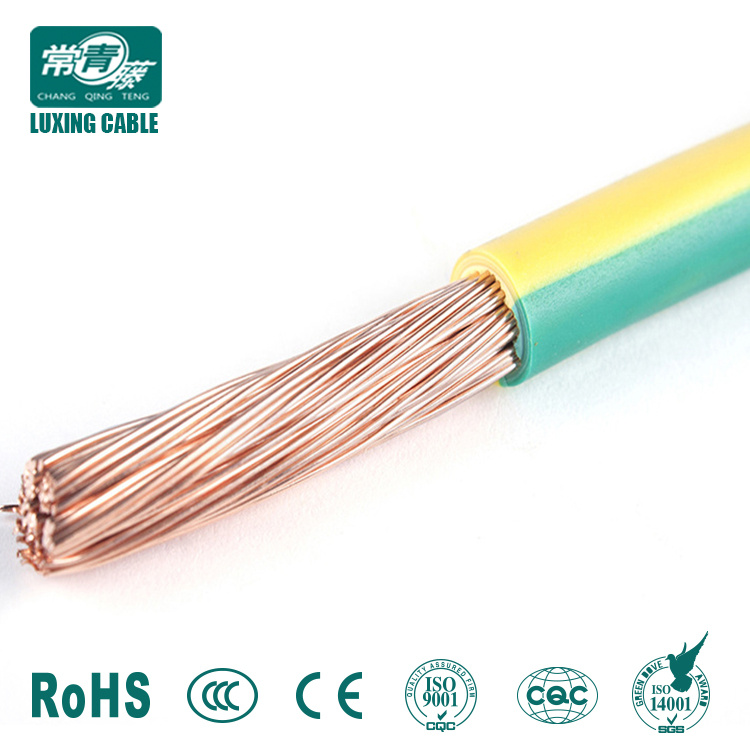

35mm ground cable/ground cable/35mm copper cable

Product Description

35mm ground cable/ground cable/35mm copper cable

50mm2 welding cable with double insulation 35mm2 70mm2 90mm2 welding cable specifications 60mm epdm rubber welding cable

Welding Cable is a harmonized, flexible, rubber jacketed welding cable. This cable is designed for the transmissionof high currents from electric
welding machines to the welding tool on manually or automatically operated line and spot welding machines. Also suitable for assembly lines and
conveyor systems in the ship building, automobile industry and tool making industries. H01N2-D cables retain their high flexibility even under the
influence of ozone, light, oxygen, protective gases, and oils. The robust jacket and construction aids in the resistance to both hot and cold
temperaturesas well as to flames. They are suitable for use outdoors in dry or damp conditions.

Construction: - Extra fine bare copper strands - Strands to VDE-0295 as listed below - Synthetic or paper separatorover core - Polychloroprene
rubber (neoprene) jacket - UV, heat, cold and flame resistant

Technical: - Working voltage: 100/100 volts - Test voltage: 1000 volts - Flexing bending radius: 12.0 x Ø - Fixed bendingradius: 7.5 x Ø - Flexing
Temp: -25º C to +80º C - Fixed Temp: -40º C to +80º C - Flame retardant: IEC 60332.1

Approvals: - HD22.6 S2 - VDE-0282 Part-6

Product Name	Welding cable
Product standard	AS/NZS3191 Generally to AS/NZS 5000.1
Core	Single(Optional)
Working Life	< 25 years
Type of conductor	pure copper,tinned copper
Material of conductor	Copper/aluminum
Material of insulation	Pvc/rubber/EPDM/CPE/EPR
Color of core insulation	Red/white/blue/black/green/yellow(optional)
Material of Jacket	Pvc/rubber/EPDM/CPE/EPR as your requirment
Voltage	250/440v,300v/500v,450/750v
Advantage	Flame resistant/low smoke/halogen free
Section	10mm2-400mm2
Property	Heat-resistant

Sectional Area	Max. wire dia. of conductor	Total thickness of sheath	Avg. overall dia. (mm)		Max. DC resistance at 20°c (Ω/km)
mm2	mm	mm	Min.	Max.	Tinned copper	Plain coppner
16	0.21	2.0	8.8	11.0	1.19	1.16
25	0.21	2.0	10.1	12.7	0.780	0.758
35	0.21	2.0	11.4	14.2	0.552	0.536
50	0.21	2.2	13.2	16.5	0.390	0.379
70	0.21	2.4	15.3	19.2	0.276	0.268
95	0.21	2.6	17.1	21.4	0.204	0.198
120	0.51	2.8	19.0	24.0	0.161	0.164
150	0.51	3.0	21.0	27.0	0.129	0.132
185	0.51	3.2	22.0	29.0	0.106	0.108

Workshop: we are the 19 years Electric wire & power cable factory.

Certifications

Certifications: ISO9001/14000, CE, CCC, IEC, BS, EN, VDE

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
