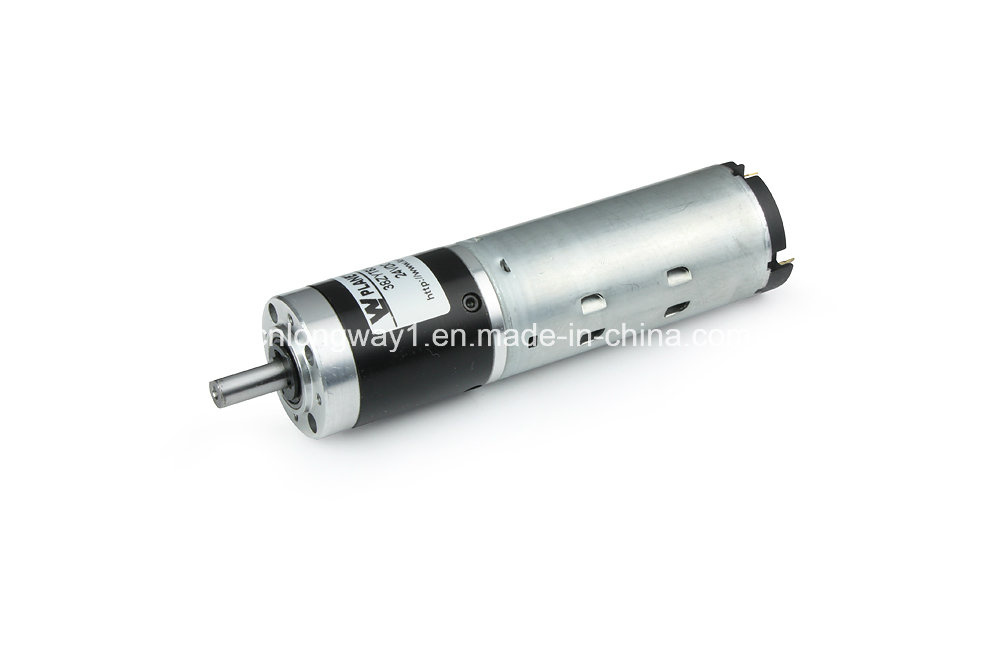

35mm Pm DC Planetary Gear Motor for LCD Screen Rolling

Name: 35mm Pm DC Planetary Gear Motor for LCD Screen Rolling
Brand: all-electronics-online.com
SKU: 774120225
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	35ZYT40-36PLG10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	38mm
Premissible Load Range:	0.03n.M-3n.M
Application To:	Electric Garden Tools and Automatic Mover , Robot
Special Motor:	Small Size , High Torque , Easy Control etc
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

Description of the product
1. Diameter 22mm planetary gear has a rated load 0.5N.M
2. Fit for big output torque equipment.
Motor Technical Data

Model	Rated Voltage VDC	No-load Speed r/min		No-load Current mA	Rated Speed r/min	Rated Torque mN.m	Output Power W	Pated Current mA	Stall Torque mN.m	Stall Current A
35ZYT40-1230	12	3000		80	2300	9	2.1	400	38.5	0.8
35ZYT40-1240	12	4000		90	3200	10	3.3	550	50	2.1
35ZYT40-1250	12	5000	100		4300	8	3.5	600	57	2.2
35ZYT40-2430	24	3000	50		2300	9	2.1	210	38.5	1.5
35ZYT40-2440	24	4000	55		3200	10	3.1	230	40	0.7
35ZYT40-2450	24	5000	60		4100	10	4.2	380	55.5	2.0

Gear motor Technical Data

Reduction ratio	3.7	5.1	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	31.5	31.5	36.0	36.0	36.0	42.0	42.0	42.0	42.0	48.5	48.5	48.5
No-load speed r/min	808	579	214	157	111	59	42	30	21	16	11	8.1
Rated speed r/min	619	444	164	121	85	45	32	23	16	12	10	7.4
Rated torque N.m	0.031	0.044	0.11	0.15	0.21	0.39	0.54	0.77	1	1	1	1
Max.permissible load in a short time	0.6	0.6	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3	3	3

Reduction ratio	3.7	5.1	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	31.5	31.5	36.0	36.0	36.0	42.0	42.0	42.0	42.0	48.5	48.5	48.5
No-load speed r/min	1078	772	285	210	148	78	56	40	29	21	15	11
Rated speed r/min	862	617	228	168	118	63	45	32	23	17	12	10
Rated torque N.m	0.035	0.049	0.12	0.17	0.24	0.43	0.6	0.85	1	1	1	1
Max.permissible load in a short time	0.6	0.6	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3	3	3

Reduction ratio	3.7	5.1	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	31.5	31.5	36.0	36.0	36.0	42.0	42.0	42.0	42.0	48.5	48.5	48.5
No-load speed r/min	1347	965	357	263	189	98	70	50	36	26	19	13
Rated speed r/min	1159	830	307	226	159	84	60	43	31	23	16	11
Rated torque N.m	0.028	0.039	0.10	0.13	0.19	0.33	0.46	0.65	0.9	1	1	1
Max.permissible load in a short time	0.6	0.6	1.2	1.2	1.2	2.4	2.4	2.4	2.4	3	3	3

*The specifications can be designed according to the customer's requirement !
