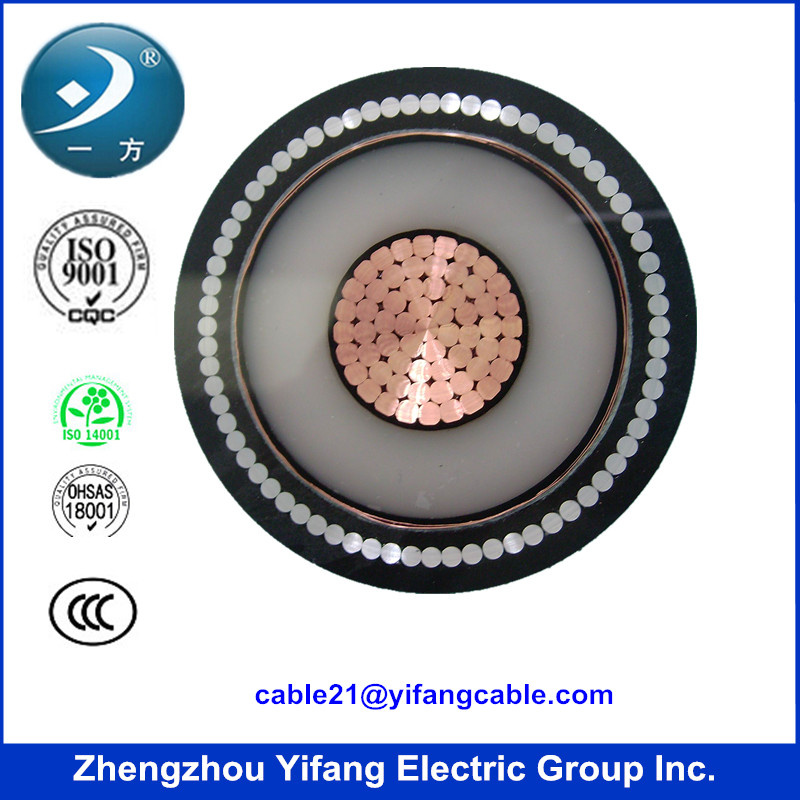

35mm2 Copper Electrical Power Transmission Cable

Name: 35mm2 Copper Electrical Power Transmission Cable
Brand: all-electronics-online.com
SKU: 710858832
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	US $ 0.1/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	yjv32
Product Name:	XLPE Insulated Power Cable Miduem Voltage
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	IEC
Wire Core Material:	Aluminum or Copper
Brand:	Yifang

Product Description

XLPE Insulated Power Cable Miduem Voltage

1. Application:

Mainly used for the power transmission underground or for power station

2. Construction:

Copper conductor, XLPE insulated, swa, PVC or PE or HDPE sheath

3. Voltage:

3.6/6KV

4. Standard:

IEC, BS, DIN, JIS, GOST, etc.

Other special characteristics: Design and manufacture according to customers' request

Conductor			Insulation nominal thickness mm	Max.outer diameter		Conductor Max.resistance under 20ºC
Norminal area (mm2)	Wires	Diameters		1 Cores	2 cores	Copper cores		Copper core
Norminal area (mm2)	Wires	Diameters		1 Cores	2 cores	Hard Copper	Soft copper	Copper core
10	7	3.8	1	6.5	13	1.906	1.83	3.08
16	7	4.8	1.2	8	16	1.198	1.15	1.91
25	7	6	1.2	9.4	18.8	0.749	0.727	1.2
35	7	7	1.4	11	22	0.54	0.524	0.868
50	19	8.4	1.4	12.3	24.6	0.399	0.387	0.641
70	19	10	1.4	14.1	28.2	0.276	0.268	0.443
95	19	11.6	1.6	16.5	33	0.199	0.193	0.32
120	36	13	1.6	18.1	36.2	0.158	0.153	0.253

5. Company info:
Zhengzhou Yifang Electric Group Inc. was found in 1998, with 140000sq area, more than 300 employees.
Our products involve low, medium and high voltage, from 1kv to 220kv, including PE/PVC/XLPE insulated power cable, ABC overhead cable, building wire, control cable, rubber cable, welding cable, bare conductor etc.
After years' development, we have gained good reputation from our clients in Asia, Afria, Latin-America, Middle-east, Europe, etc, and become one of the powerful manufacturer and exporters in China.

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
