| Prod Model: |
SL-ADSS/36A-50M |
| Tensile Strength: |
Over 500n |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
| Sheath Material: |
PE |
Product Description
The All-Dielectric Self Supporting (ADSS) cable is a completely non-metallic structure in which the tensile load bearing elements are integral within the circular design of the cable.
ADSS power optical cable adopts loose tube stranded.Optical fiber are positioned into a loose tube made of high modulus plastics. The tubes are filled with a Water-blocking filling compound. The tubes(and fillers) are stranded around FRP as a non-metallic central strength member into compact and circular cable core. The cable is completed with PE or AT (Anti-tracking) outer sheath.
Item Details
Fiber Count: 36 Fibers
Fiber Type: Single-mode G.652D
Outer Jacket: PE
Span: 50m

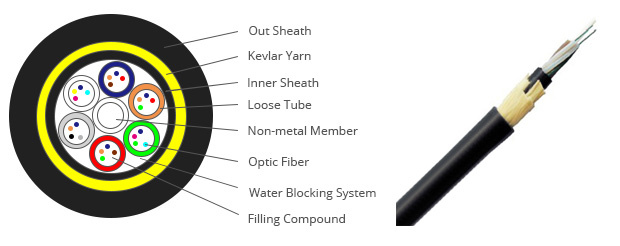

Cable Structure
| |
Features Light weight, small cable OD, reduce the influence of ice and wind, lower the load of tower frame and supporting.Accurately control the excess length of the fiber, which ensures the great tensile resistance and temperature property of the cable.Non-metal central strength member, anti-electromagnetic interference.Kevlar yarn material ensure a good performance of tensile strength.Low dispersion and attenuation.Laying with continuously point. | | Application Used by electrical utility companies as a communications mediumSuitable for self-supporting aerial applicationsLong distance and local area network communication |
Specifications| Fiber Count | Span
(m) | Weight | Cable Diameter | Wavelengths | Rated
Tensile
Strength
(RTS) | Modules | Thermal Expansion Coefficient | Storage Temperature |
| PE Sheath | AT Sheath | SM | MM |
| 24 | 50 | 150kg/km | 160kg/km | Φ13.8mm | 1310nm/1550nm | 850nm/1300nm | 30KN | 11.8KN/mm2 | 1.0×10-6/ºC | -40°C to 70°C |
| 100 | 155kg/km | 165kg/km | Φ14.0mm | 1310nm/1550nm | 850nm/1300nm | 34KN | 12.5KN/mm2 | 0.9×10-6/ºC | -40°C to 70°C |
| 200 | 160kg/km | 170kg/km | Φ14.2mm | 1310nm/1550nm | 850nm/1300nm | 35KN | 13.2KN/mm2 | 0.9×10-6/ºC | -40°C to 70°C |
| 300 | 165kg/km | 175kg/km | Φ14.5mm | 1310nm/1550nm | 850nm/1300nm | 36KN | 13.6KN/mm2 | 0.9×10-6/ºC | -40°C to 70°C |
| 400 | 170kg/km | 180kg/km | Φ14.9mm | 1310nm/1550nm | 850nm/1300nm | 45KN | 16.4KN/mm2 | 0.6×10-6/ºC | -40°C to 70°C |
| 500 | 175kg/km | 185kg/km | Φ15.0mm | 1310nm/1550nm | 850nm/1300nm | 48KN | 17.2KN/mm2 | 0.5×10-6/ºC | -40°C to 70°C |
| 600 | 180kg/km | 190kg/km | Φ15.1mm | 1310nm/1550nm | 850nm/1300nm | 53KN | 18.0KN/mm2 | 0.3×10-6/ºC | -40°C to 70°C |
| 700 | 185kg/km | 195kg/km | Φ15.3mm | 1310nm/1550nm | 850nm/1300nm | 57KN | 18.5KN/mm2 | 0.2×10-6/ºC | -40°C to 70°C |
| 800 | 190kg/km | 200kg/km | Φ15.5mm | 1310nm/1550nm | 850nm/1300nm | 60KN | 19.1KN/mm2 | 0.1×10-6/ºC | -40°C to 70°C |
| 900 | 195kg/km | 205kg/km | Φ15.6mm | 1310nm/1550nm | 850nm/1300nm | 70KN | 19.6KN/mm2 | 0.1×10-6/ºC | -40°C to 70°C |
| 1000 | 200kg/km | 210kg/km | Φ16.0mm | 1310nm/1550nm | 850nm/1300nm | 75KN | 19.8KN/mm2 | 0.1×10-6/ºC | -40°C to 70°C |
Package  |  |
| Package 1 | Package 2 |
Package 1: usually for indoor cable, light weight cables.
Package 2: usually for outdoor cable, heavy weight cables
Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths. |

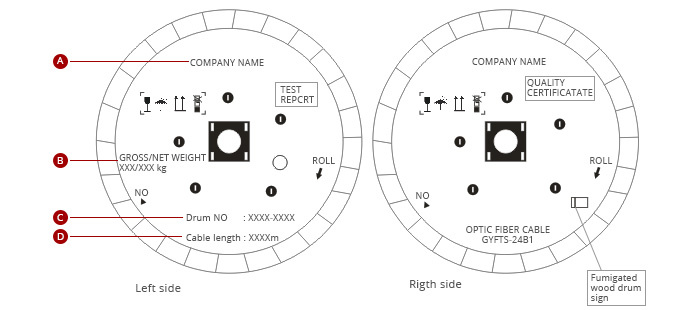

Mark
Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements, such as:
1. Company Name
2. Cross / Net weight
3. Drum No: XX
4. Cable Length : XX
Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.
Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

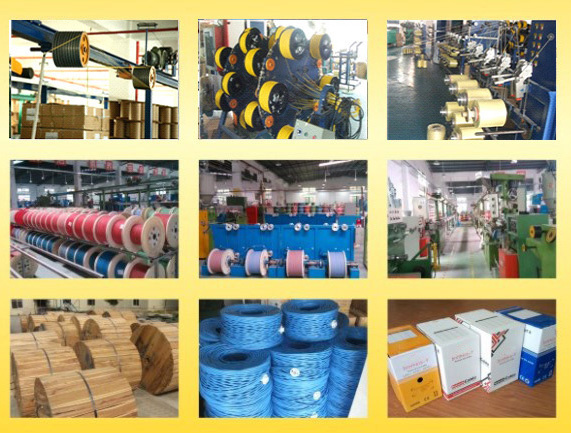

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.
