360 Degree Ceiling PIR Motion Sensor Switch Ta-S360

Name: 360 Degree Ceiling PIR Motion Sensor Switch Ta-S360
Brand: all-electronics-online.com
SKU: 734218452
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PIR Motion Sensor Switch TA-S360
Model:	PIR Motion Sensor Switch Ta-S360
Power Consumption:	Approx 0.5W
Working Humidity:	<93%Rh
Detection Motion Speed:	0.6-1.5m/S
Installation Height:	2-6m
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Application:	Corridor

Product Description

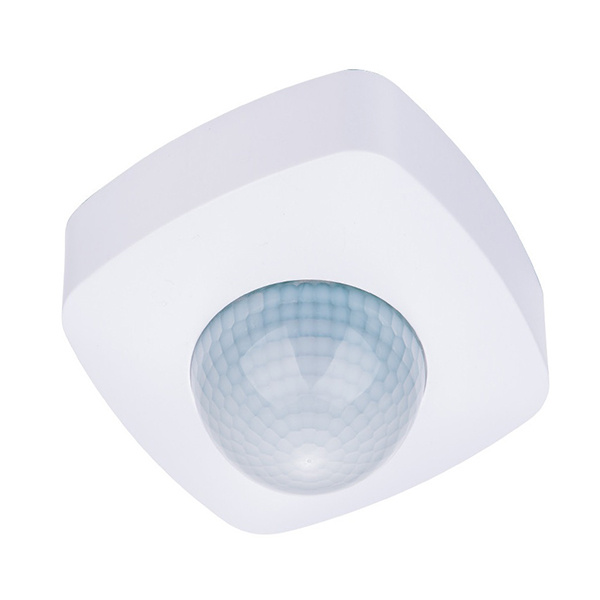

360 Degree Ceiling PIR Motion Sensor Switch TA-S360

Specification:

It can work both in the daytime and at night when it is adjusted to the "sun" position (max). It can work in the ambient light less than 3LUX, when it is adjusted to the "3" position (min). As for the adjustment pattern, please refer to the testing pattern.

Time-Delay is added continually: When it receives the second induction signal within the first induction, it will restart to time from the moment.

Model	PIR Motion Sensor Switch TA-S360
Input Voltage	220V-240V/AC, 110V/AC-130V/AC
Time Delay	10sec-7min(adjustable)
Detection Distance	20m adjustable
Ambient Light	2-2000lux(adjustable)
Rated Load	<2000W
Power Frequency	50/60Hz
Working Humidity	<93%RH
Power Consumption	approx 0.5W

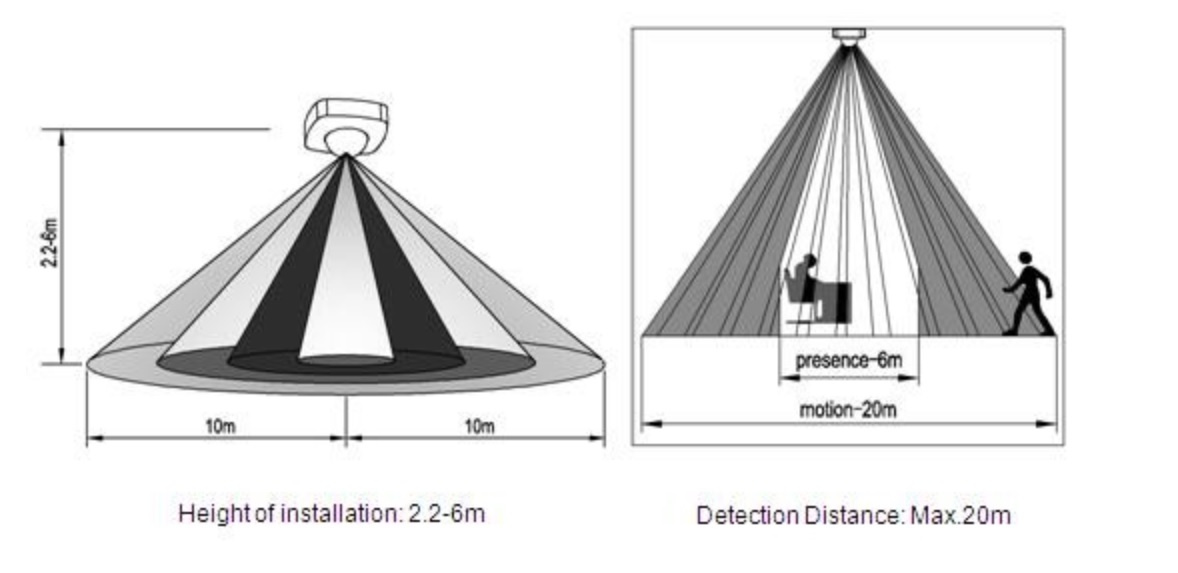

Detection angle	360°
Detection motion speed	0.6-1.5m/s
Installation height	2-6m
Product size	102.5102.558.3mm

Picture:
