Good Sensitivity Surface Wall Mounted Infrared Motion Sensor Ta-P300

Name: Good Sensitivity Surface Wall Mounted Infrared Motion Sensor Ta-P300
Brand: all-electronics-online.com
SKU: 734434362
Availability: InStock
Rating: 5 (48 reviews)

Price:	Negotiable/Piece
Min Order:	500/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Good Sensitivity Infrared Sensor TA-P300
Model:	Good Sensitivity Infrared Sensor Ta-P300
Time Delay:	8sec.-10min., Adjustable
Power Frequency:	50/60Hz
Ambient Light:	3-2000lux(Adjustable)
Service:	OEM/ODM
Type:	Infrared Sensor Switch
Principle:	Infrared
Standard:	Standard
Application:	Corridor

Product Description

Good Sensitivity Surface Wall Mounted Infrared Motion Sensor TA-P300

Specification:

The product adopts good sensitivity detector and integrated circuit. It gathers automatism, convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. The consumer can adjust working state in different ambient light. It is easy to install and used widely.
The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the "sun" position (max). It can work in the ambient light less than 3LUX when it is adjusted on the "moon" position (min). As for the adjustment pattern, please refer to the testing pattern.
Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Technical Data:

Model NO.:	TA-F300
Input voltage:	220-240V/AC, 110-130V/AC
Time delay:	8sec.-10min., adjustable
Detection distance:	<12m (<24ºC)
Power Frequency:	50/60Hz
Ambient light:	3-2000lux(adjustable)
Rated load:	<1200W
Detection angle:	140°/180°
Detection motion speed:	0.6-1.5m/s
Installation height:	0.5-3.5m
Working Humidity:	<93%RH
Power Consumption:	approx 0.5W
Working Temperature: -	20~+40ºC
Product size:	72×81×122mm
IP rating:	IP44

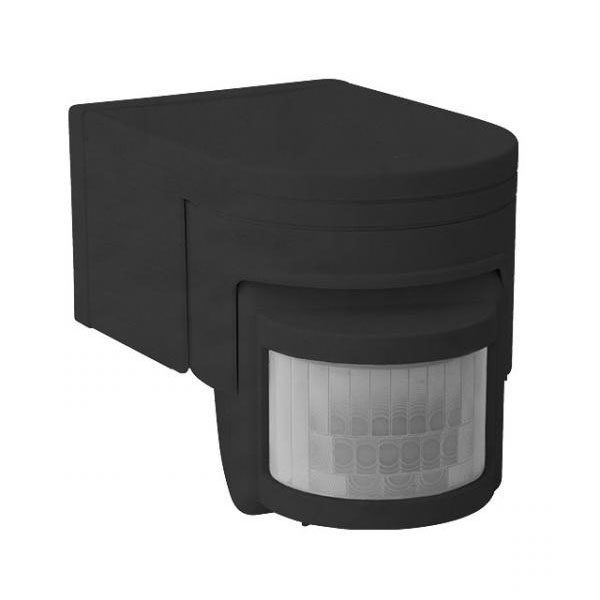

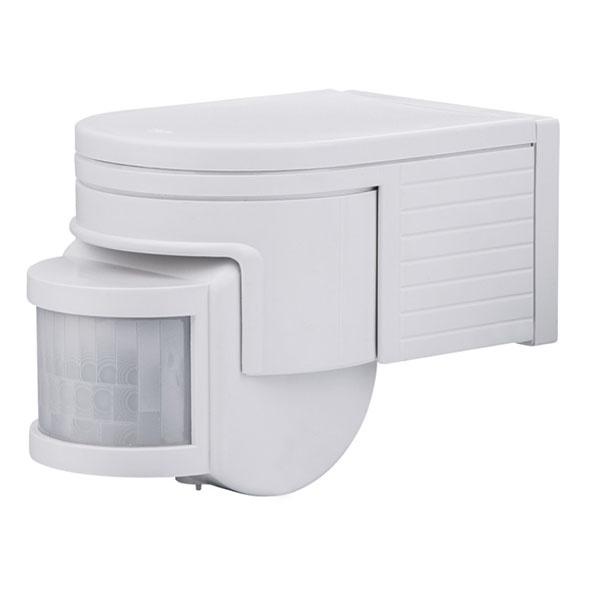

Picture:
