36blr BLDC Motor

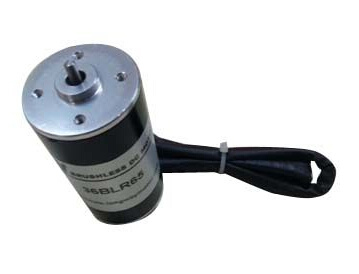

Name: 36blr BLDC Motor
Brand: all-electronics-online.com
SKU: 612661415
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	US $ 35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	36BLR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Certification:	CE
Brand:	Longway

Product Description

Application: High-performance motion control
with small power, such as industrial robot, CNC Machine,
manned spacecraft, advanced home appliance, etc.
Motor Specifications:

Type	36BLR1530S12	36BLR1530S24	36BLR1030S12	36BLR1030S24	36BLR530S12	36BLR530S24
Voltage	12V	24V	12V	24V	12V	24V
Rated power	15W	15W	10W	10W	5W	5W
Rated torque	0.048N.m	0.048N.m	0.032N.m	0.032N.m	0.016N.m	0.016N.m
No load speed	3800rpm	3700rpm	3800rpm	3700rpm	3800rpm	3700rpm
No load current	<0.4A	<0.3A	<0.3A	<0.3A	<0.3A	<0.3A
Load speed	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm	3000rpm
Load current	1.92A	0.96A	1.28A	0.64A	0.64A	0.32A
Hall(Y/N)	Both	Both	Both	Both	Both	Both
Life(Hours)	>5000	>5000	>5000	>5000	>5000	>5000
Length	65mm	65mm	55mm	55mm	45mm	45mm
Internal drive	Yes	Yes	Yes	Yes	Yes	Yes
Internal driver length	17mm(back cover type)	17mm(back cover type)	17mm(back cover type)	17mm(back cover type)	17mm(back cover type)	17mm(back cover type)
Weight	255g	255g	240g	240g	220g	220g
The specifications can be designed according to customer's requirements!

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
