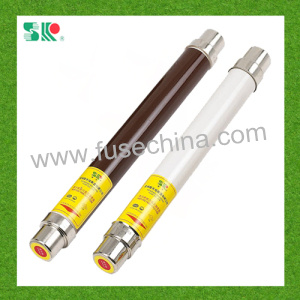

36kv Ceramic Plug-in Fuse for Transformer Protection

Name: 36kv Ceramic Plug-in Fuse for Transformer Protection
Brand: all-electronics-online.com
SKU: 796894145
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	US $ 3-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNT
Color:	White Brown
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	Plug

Product Description

Technical parameters for XRNT-36KV fuse:
Rated voltage: 36KV
Rated current of fuse: 25A
Dimension: 442mm*51mm

Type	Rated voltage (KV)	Rated current (A)	Diameter (mm)	Length (mm)

XRNT1	3.6	6.3 10 16 20 25 31.5 40	51	192
XRNT1	7.2	6.3 10 16 20 25 31.5 40 50 63	51	292
XRNT1	7.2	80 100 125 160	76	292
XRNT1	12	10 16 20 25 31.5 40	51	292
XRNT1	12	50 63 71 80 100	76	292
XRNT1	12	125	76	292
XRNT1	12	160 200	88	292
XRNT1	24	6.3 10 16 20 25 31.5 40	51	442
XRNT1	24	50 63 71 80 100	76	442
XRNT1	24	125	76	442
XRNT1	24	160	88	442
XRNT1	40.5	3.15 6.3 10 16 20 25	51	537
XRNT1	40.5	31.5 40	76	537
XRNT1	40.5	63
