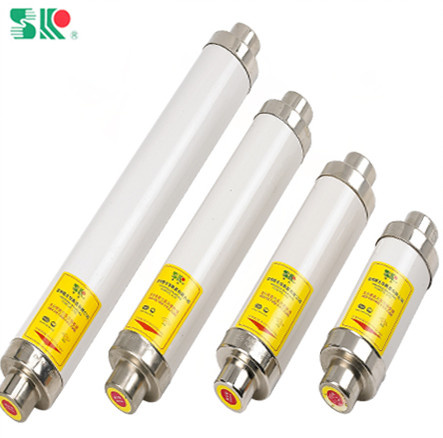

High Voltage Fuse for Transformer Protection

Prod Model:	XRNT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Safety Standards:	IEC
Color:	Brown,White
Packaging Details:	3PCS Per Carton
Port:	Ningbo,Shanghai
Supply Ability:	1000PCS/Week
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Shape:	Cylindrical
Standard:	IEC282-1 GB15166.2

Product Description

Applicatoins
    H.V HRC current-limiting fuses type A/B for transformer protection is mainly used in AC 50Hz,rated voltage 3.6-40.5KV,rated current up to 160A circuit for protecting transformers and power equipment from overload and short-circuit.It can also be used with load switch,vacuum contact.

Design Features
    A/B type H.V HRC current-limiting fuses is bus-bar installation. The fuse link is fastened to the bus bar directly with bolts. It is small in volume, reliable inconnection.
    The striker parallels to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand.
    The fuse tube is made from heat resistant, high duty ceramic or epoxy glass.When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting or automatically cutting the circuit.
    A/B type H.V HRC current-limiting fuses has many merits and high current-limiting ability, high breaking capacity, quick and punctual in action, reliable in performance.

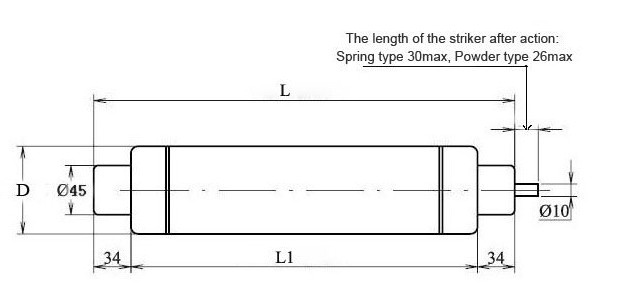

Model No.	Rated voltage (KV)	Rated current (A)	Diameter (mm)	Length (mm)
XRNT1	3.6	6.3,10,16,20,25,31.5,40	51	192
XRNT1	7.2	6.3,10,16,20,25,31.5,40,50,63	51	292
XRNT1	7.2	80,100,125,160	76	292
XRNT1	12	6.3,10,16,20,25,31.5,40	51	292
XRNT1	12	50,63,71,80,100	76	292
XRNT1	12	125	76	292
XRNT1	12	160,200	88	292
XRNT1	24	6.3,10,16,20,25,31.5,40	51	442
XRNT1	24	50,63,71,80,100	76	442
XRNT1	24	125	76	442
XRNT1	24	160	88	442
XRNT1	40.5	3.15,6.3,10,.16,20,25	51	537
XRNT1	40.5	31.5,40	76	537
XRNT1	40.5	63	88	537
