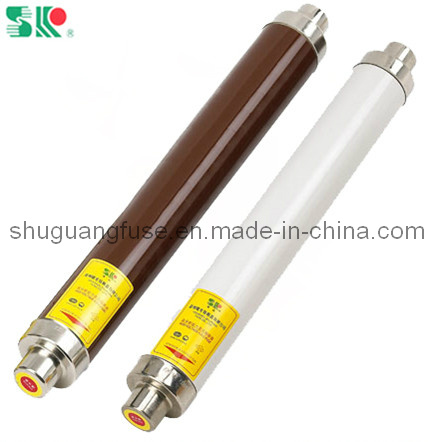

36kv High Voltage Ceramic Plug-in Fuse for Transformer Protection

Name: 36kv High Voltage Ceramic Plug-in Fuse for Transformer Protection
Brand: all-electronics-online.com
SKU: 700971475
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	US $ 10.1-29.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	XRNT1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White, Brown
Material:	Ceramic
Rated Voltage:	36kv
Rated Current:	25A
Length:	442mm
Diameter:	51mm
Weight:	5kg
Service:	OEM, ODM
Sample:	Avaiable
Delivery:	as Required
Breaking Capacity:	High Voltage
Type:	High Voltage Xrnt Fuse
Usaga:	Electric Equipment Overload Protection
Standard:	IEC282-1 GB15166.2

Product Description

Technical parameters for XRNT-36KV fuse:

Rated voltage: 36KV

Rated current of fuse: 25A

Dimension: 442mm*51mm

Type	Rated voltage (KV)	Rated current (A)	Diameter (mm)	Length (mm)

XRNT1	3.6	6.3 10 16 20 25 31.5 40	51	192
XRNT1	7.2	6.3 10 16 20 25 31.5 40 50 63	51	292
XRNT1	7.2	80 100 125 160	76	292
XRNT1	12	10 16 20 25 31.5 40	51	292
XRNT1	12	50 63 71 80 100	76	292
XRNT1	12	125	76	292
XRNT1	12	160 200	88	292
XRNT1	24	6.3 10 16 20 25 31.5 40	51	442
XRNT1	24	50 63 71 80 100	76	442
XRNT1	24	125	76	442
XRNT1	24	160	88	442
XRNT1	40.5	3.15 6.3 10 16 20 25	51	537
XRNT1	40.5	31.5 40	76	537
XRNT1	40.5	63	88	537

Wenzhou Shuguang Fuse Co., Ltd is a manufacturer of electric appliances with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electrical industry and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all over world to contact us for future business relationships and achieving mutual success!
