| Prod Model: |
SLPM-36123000 |
| Application: |
Power Tools |
| Operating Speed: |
Constant Speed |
| Excitation Mode: |
Shunt |
| Structure And Working Principle: |
Brush |
| Brand: |
Mada |
Product Description

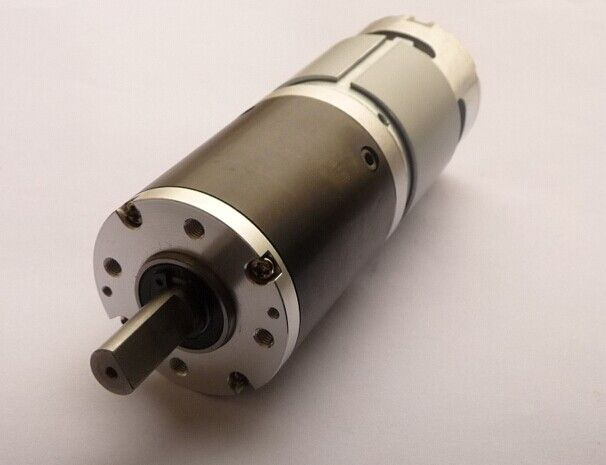

DC Planetary Gear Motor Specification:1. Voltage: 6V 9V 12V 24V2. Speed: 1-1600rpm3. Torque: 1-100kg. Cm rated torque4. Gearbox 36mm Dia X 26.4-52.4mm length5.Shaft: 8mm Dia X 22mm Length5. Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation.6. Packing Details: 280-350g/PCS(approx) 40PCS/CTN 16kg/carton7 The datasheet and price range only typical data for reference, Gear motor's price are usually decide byMotor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or
About SUNLITE MOTOR CompanyNingbo SUNLITE Motor Co. Ltd is a manufacturer and exporter of micro motors, Our Product range are:
DC Brush motor: 6-130mm diameter, 0.1-1500W output power. Brushless DC Motor: 28-110mm, 5-800W output power DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power DC Planeary Gear Motor: 10-82mm diameter, 0.1-200W output power Stepper Motor: NEMA 08 to NEMA 43, Can contact with gearox and lead screwAC Gear Motor: 42 to 104mm diameter, 6-200 output power Compare with other competitors, Our advantages are:
1) High Quality Guarantee: 11 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS certificates.2) Experience: Till Augest, 2017, We had export our goods to 95 different countries like US, Germany, UK, Japan, Brizal,Russia and so on. 3) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China. 4) Good Service: SUNLITE MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don't need way about can't not find the person when have agent things. - 5 MOQ: Small Orders Accepted
6) On Time Delivery: 7-15 working days lead time for normal motors, Custmoized motor lead time are also less than 20 working days.
7) Customized service: Our experienced R&D team can support customized motor if necessary.
Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
We always provide customers with distinctive products:cost-effective, lower

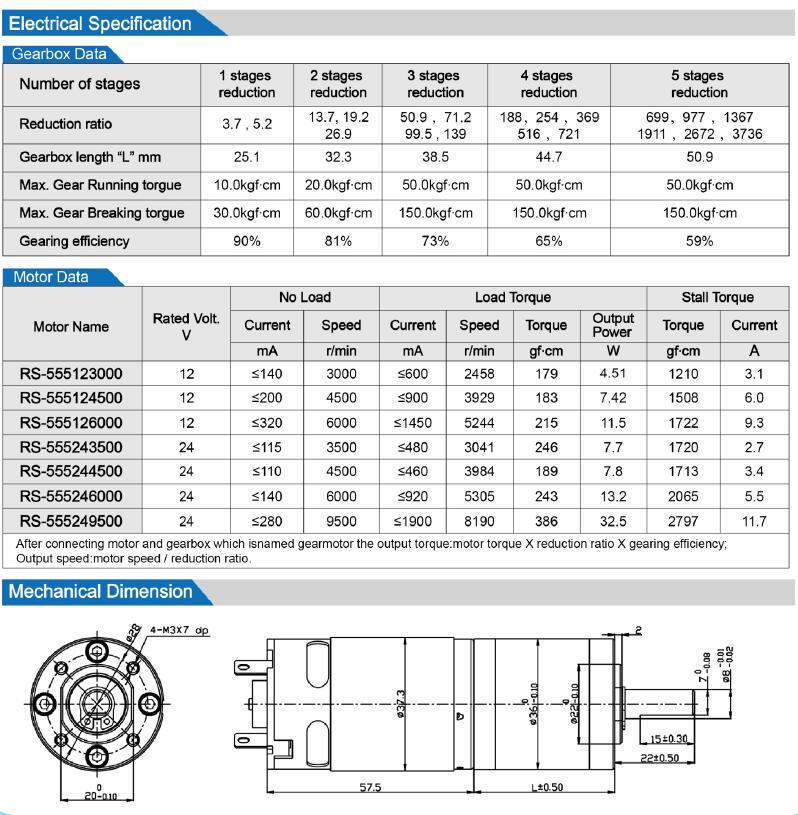

noise, higher efficiency and stability, longer life and higher strength.| Basic information |
| Product name | PG36555 series,36mm diameter planet gear motor |
| Motor type | carbon-brush commutator |
| Gear type | Straight gearwheel,planet construction |
| Housing material | Steel |
| Geartrain material | Steel and Powdered Metal,POM optional |
| Bearing at output shaft | Ball bearing |
| Lubricant | Grease for high-low temperature, -62---+204 degree |
| Backlash at no-load | <1°,MIN0.3° |
| OEM & ODM Service | Available |
| Certificate | CE,ROHS,ISO/TS16949 |
| An exact model of gearbox and motor combination |
| Product seires | PG36GR series |
| An exact Model NO. | PG36555 24 3400-139K |
| Motor Voltage(VDC) | 24 |
| Motor no load speed(rpm) | 3400 |
| Gearbox reduction ratio | 139K |
| Gearmotor no load current(A) | <0.104 |
| Gearmotor no load speed(rpm) | 24+/-10% |
| Gearmotor rated load torque(kgf.cm) | 30 |
| Gearmotor rated current(A) | <0.580 |
| Gearmotor rated load speed(rpm) | 11+/-10% |
| Noise (DB) | <55DB |
| Lifetime | 1000+ hours (varies by application) |
| Rotation | CW/CCW reversible |
Packing&Shiping
Company InformationFAQQ: Are you a trading company or a manufacturer?A: We are a manufacturer.
Q: Can you make a motor with custom specifications?A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?A: 1 pc for sample order, and 100pcs for bulk order.
Q: Do you have motors in stock?A: No, we don't. All motors are made with orders.
Q: How to pay you?Paypal, Western Union, Money Gram, T/T, L/C payment are acceptable.
Q: What do you need to know if I need a recommendation on motor?A: Normally we need to know dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e.
a motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: Can I ask you for help if I know nothing about motor?A: Yes, our pleasure. We are nice people with big hearts.
Q: Can we type our brand on it?A: Yes of course.
Q: Where is your loading port ?A: Ningbo Port, Shanghai Port, China.
Q: What is your production capacity?A: About 4000 PCS per day.
Q: Can I visit your factory?A: Yes,of course
