36V 30A AC DC Charging Power Supply for Energy Storage System

Name: 36V 30A AC DC Charging Power Supply for Energy Storage System
Brand: all-electronics-online.com
SKU: 733528422
Availability: InStock
Rating: 4.8 (100 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR5022A-B1
Weight:	≤1.5kg
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CB
Output Power:	1100W
Input Voltage:	90~264VAC
Brand:	Goldpower

Product Description

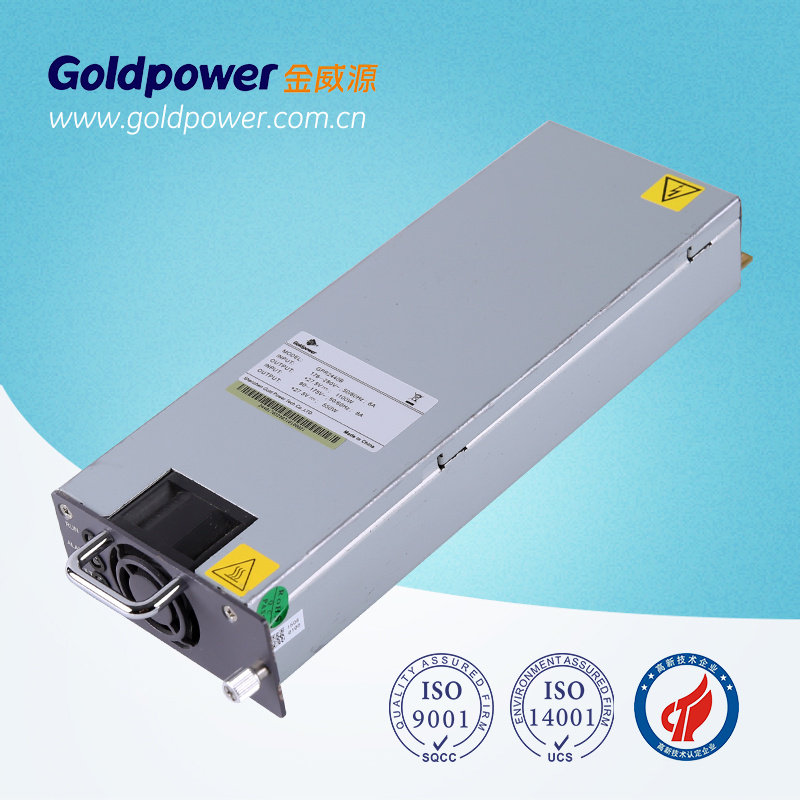

36V 30A AC DC Charging Power Supply for Energy Storage System is a high efficiency AC to DC rectifier power module with CCC/CE/UL.

Features:

• Compact structure, high power density
• Output voltage:36~50.4Vdc,
• Output current:22~30A.
• Wide operating temp. range: -40~+55ºC, extended operating temperature range: +55 ~ +65ºC
• Power factor correction: ≥0.99
• RS485 communication port
• Input over/ under voltage protection
• Output over voltage protection
• Output over current protection

• Over temperature alarm and protection
• Parallel connection via current sharing bus
• Remote startup/shutdown
• Hot swappable
• With CE,UL certification
• High efficiency ,more than 90%

Applications:

Energy storage system
Ethernet
Exchange
LAN, MAN
Server
Indoor wireless network
Telecom equipment

Specification:

Model	GPR5022A-B1
Power	1100W
Efficiency	≥90%
Input voltage	90~290Vac
Input frequency	45~65Hz
Input current	8A
Power factor	0.99
Output voltage	36~50.4Vdc
Output current	22~30A
Regulation	±1%
Ripple+Noise(Vp-p)	200mV
Operating temperature	-33~+55ºC
Storage temperature	-40~+70ºC
Humidity	5~95%
Cooling	Fan forced cooling
Acoustic noise	≤55dB
MTBF	≥250,000 hours
Turn-on time	3~8S
Current-sharing	±5%
Temperature coefficient	±0.02%/ºC
Dimensions (LWH)	27092.7541.6 mm/8.2x4.6x1.6(in.)
Weight(KG)	≤1.5KG
Protection	Input over/under voltage,output over voltage,output limited current,short circuit, over temperature protection.

About us:

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
