| Prod Model: |
HLLW~12.5SPI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Capacity: |
10.2-156 Kw |
| Input Power: |
2.85-32.8 Kw |
| Power Supply: |
380V-440V |
| Refrigerant: |
R22, R407c, R410A,R134A |
| Evaporator: |
Shell and Tube Type |
| Chilled Water Flow: |
29.2-447.1 L/M |
| Noise: |
54-75 Db |
| Tank Volume: |
80-270 L |
| Unit Weight: |
120-1180 Kg |
| Usage: |
Refrigerator |
| Certification: |
CE |
| Control Type: |
Digital |
| Type: |
Rotary |
| Display Type: |
LCD |
| Material: |
Copper |
| Brand: |
Huali |
Product Description

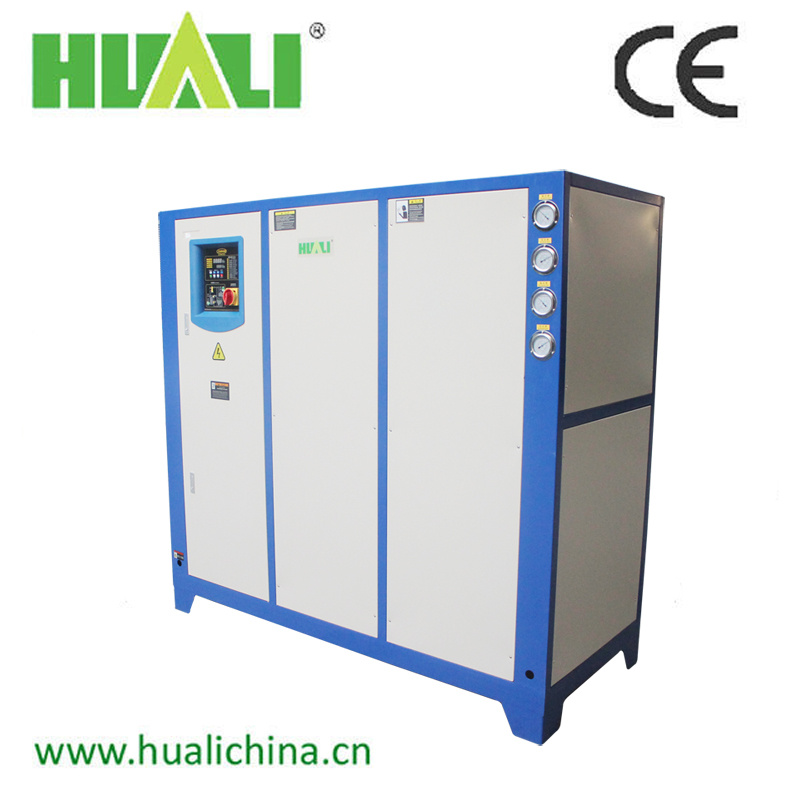

380-440V Package Type Industrial Water Cooled Chiller
Industrial water cooled chiller features:Adopts high-quality compressor and Taiwan pump, very safe and noiseless, economical in power and durable
Temperature control range: 5 to 35 degree, more or less ± 1 degree.
Designs of chiller and radiator are unique, the heat exchange efficiency is very high
Chiller is designed to be with current overload protector, high and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time
Can customize base on the requirement of acid resistant and acidity-resistant (optional)
Standard model: Equipped with water pump and water tank
Refrigerant is R22, R410A, R407C, and R134A are also available
Power and frequency supply: 380V, 3pH, 50Hz
Can customized 400V, 3pH, 50Hz/380V, 3pH, 50Hz/400V, 3pH, 60Hz
Rated cooling capacity base:Ambient temperatures: 35 degree.
Water in/outlet: 30/35 degree.
Inlet/outlet temperatures: 12/7 degree.
Chilled water range: 5 to 20 degree.
Cooling water range: 20 to 40 degree.
Parameter of water chiller| Industrial Water Chiller |
| Model HLLW ~ | 03SPI | 05SPI | 08SPI | 10SPI | 12.5SPI | 15SPI | 20DPI | 25DPI | 30DPI | 40TPI | 45TPI |
Rated Cooling Capacity | ×1000 kcal/h | 8.8 | 14.1 | 22.9 | 30.4 | 35.4 | 44.7 | 60.7 | 70.9 | 89.4 | 106.3 | 134.1 |
| KW | 10.2 | 16.4 | 26.6 | 35.3 | 41.2 | 52.0 | 70.6 | 82.4 | 104.0 | 123.6 | 156.0 |
| Input Power (KW) | 2.85 | 4.3 | 6.3 | 7.9 | 9.3 | 11.7 | 15.1 | 17.1 | 22.6 | 25.6 | 32.8 |
| × Comp. Input Power×Qty. (KW) | 2.1 | 3.55 | 5.2 | 6.8 | 7.8 | 10.2 | 6.8×2 | 7.8×2 | 10.2×2 | 7.8×3 | 10.2×3 |
| Chilled Water Pump Power (KW) | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Comp. Current (A) | 5.3 | 8.4 | 12.6 | 16.2 | 18.1 | 22.8 | 31.1 | 33.4 | 44.2 | 50.2 | 64.2 |
| Power Supply | 3φ-380V-50HZ |
| Safety Protection | , , , , , ,
Phase reversion protection, Phase lack protection, Overload current protection,
Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection, |
| Number of Refrigeration Circuit | 1 | 2 | 3 |
| Capacity Control (%) | 0, 100 | 0, 50, 100 | 0, 33, 66, 100 |
| Refrigerant | R22 |
| Condenser | Shell and Tube Type |
| Water Side Max Pressure (MPa) | 1 |
| Dia. of Pipe to Condenser (inch) | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Cooling Water Flow (L/m) | 35.3 | 57.2 | 91.2 | 120.6 | 140.5 | 178.3 | 225.3 | 257.4 | 355.4 | 386.1 | 533.1 |
| Condenser Water Pressure drop (kPa) | 21 | 22 | 23 | 29 | 31 | 41 | 56 | 56 | 58 | 55 | 56 |
| Evaporator |
Pipe Coil Type | Shell and Tube Type |
| Water Side Max Pressure (MPa) | - | 1 |
| Dia.of Pipe to Evaporator (inch) | 1" | 1" | 1-1/2" | 1-1/2" | 2" | 2" | 2" | 2" | 2-1/2" | 2-1/2" | 2-1/2" |
| Chilled Water Flow (L/m) | 29.2 | 47.0 | 76.4 | 101.2 | 118.1 | 149.1 | 202.4 | 236.2 | 298.1 | 354.3 | 447.1 |
| Evaporator Water Pressure drop (kPa) | - | 17 | 23 | 28 | 30 | 28 | 28 | 32 | 32 | 31 |
| Running Noise dB(A) | 54 | 56 | 66 | 72 | 72 | 75 | 75 | 75 | 75 | 75 | 75 |
| Tank Volume (L) | 80 | 80 | 180 | 180 | 180 | 180 | 270 | 270 | 270 | 270 | 270 |
| Total weight (Kg) | 120 | 160 | 430 | 460 | 500 | 540 | 720 | 780 | 880 | 1030 | 1180 |
| Dimension L×W×H | 850×550×1050 | 1400×850×1180 | 1600×850×1180 | 2000×950×1180 | 2000×1000×1180 | 2400×1050×1280 |
Photo show of water chiller
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
