380 Insulation Laminated Phenolic Bakelite Sheet
| Price: |
US $ 4.5-7.2kg |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500kg |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
MJ-380 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Density: |
More Than 1.7g/cm3 |
| Size: |
480X980mm |
| Delivery: |
7-10 Working Days |
| Appliction: |
for Motor & Generator |
| Samples: |
Free Samples Are Welcome |
| Formation Methods: |
High Temperature and High Pressure |
| Tensile Strength: |
More Than120 MPa |
| Customizable: |
Yes |
| MOQ: |
1 Piece |
| Application: |
Generator |
| Type: |
Insulation Sheet |
| Chemistry: |
Hybrid Insulation |
| Material: |
Resin |
| Thermal Rating: |
E 120 |
| Maximum Voltage: |
>100KV |
| Brand: |
Mj |
Product Description

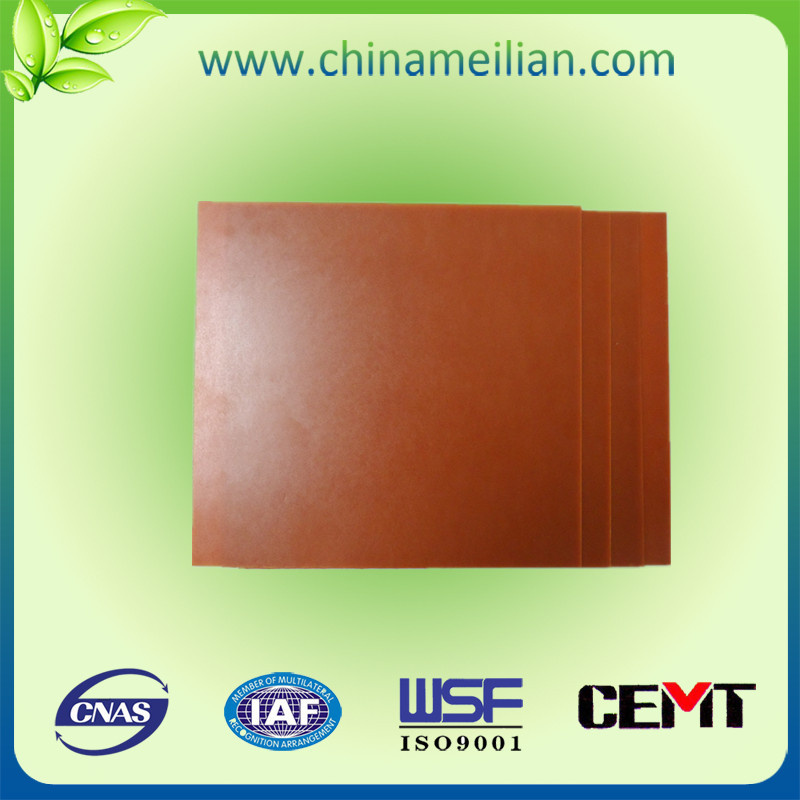

380 Insulation Laminated Phenolic Bakelite Sheet
Features:
Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:
Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products | Basic information |
| Product name | Phenolic Resin-Boned Cotton Fabric Laminated |
| Brand | MJ-380 |
| Material | Cotton facbric cloth and phenolic resin |
| Grade | Grade E |
| Feature |
Gooddielectricalandmechanicalproperty
Good heat resistance
High mechanical strength |
| Application |
| Temperature classification is E. Higher radial tensile and mechanical strength, and low water absorption. Used as holding machine for angual contact ball bearing and material with mechanical wear-resistance. |
| Technical Performance |
| Density | ≥ 1.25 g/cm3 |
| Compression strength (parallel to the axial wall layer) | ≥ 118 Mpa |
| Flexural stress | ≥ 137 Mpa |
| Tensile strength (perpendicular to the wall layer) radial | ≥ 69 Mpa |
| The heat resistance of 130 ± 2 in transformer oil | ≥ 4 H |
| The thermal stability of 105 ± 2 | ≥ 24 H |
Water absorption
sample thickness
(mm) | 1.5-3 ≤ 2.0% |
| 3.1-4.5 ≤ 1.5% |
| 4.6-6.0 ≤ 1.3% |
| 6.1-9.0 ≤ 1.2% |
| ≥ 9.0 ≤ 1.0% |
| Storage period | 6 Month(Below 5°C) |
Our Company Covers an Area of about 5000 Square Meters, Construction Area of About 2200 Square Meters
We Take Place In Domestic & International Exhibition Fair Like CWIEME in Berlin/Shanghai, CW CIEMME in Guangdong, Cross-Straits Electric Motor & Appliance Exposition in Taiwan and etc.
We Have Over 50 Sets of Production & Testing Equipments Which Insure Us The Annual Production Capacity 360 Tons of Magnetic Conductive Sheet, 240 Tons of Insulating Sheet, 80 Tons of Insulation Varnish.Production is Strictly Under Control.
We Have Over 10 Years in Manufacting Magnetic/None-Magnetic Insulation Laminte, Slot Wedge, Insulation Tube, Fiberglass Varnish Cloth, Thermal Expansion Sheet, Insulation Varnish, Mica Tape and Processed
We have passed ISO 9001-2000 and got our own patent technology, Xi'an city Science and Technology Bureau identified us as "High-Tech Enterprises"
Our Business Scope Is All Over The World, A.O.Smith Is One of Our VIP Customers.Packaging Detail:
Insulation Laminated Phenolic Bakelite Sheet package: Each package is not more than 100KG. Respectively, paper and plastic film cover plate, a paper packaging box, steel strapping / or according to customers' requirements.
Delivery Detail: 7-10 working days.Our Service:
All kinds of payment ways are acceptable !FAQ:(1) Can you give me a discount price?
Answer: It is depending on the volume. The larger the volume is, the more discount you can enjoy.
(2) Why is your price a bit higher than other Chinese suppliers?
Answer: To meet the requirement of different customers and areas, our factory manufactures various kinds of quality for each item at a wide range of price. We can offer the products of different quality levels depending on customer's target price and quality requirement.
(3) How can I get a sample?
Answer: Normally small samples (sizes not larger than 300*300mm) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL, FEDEX, EMS, UPS courier account

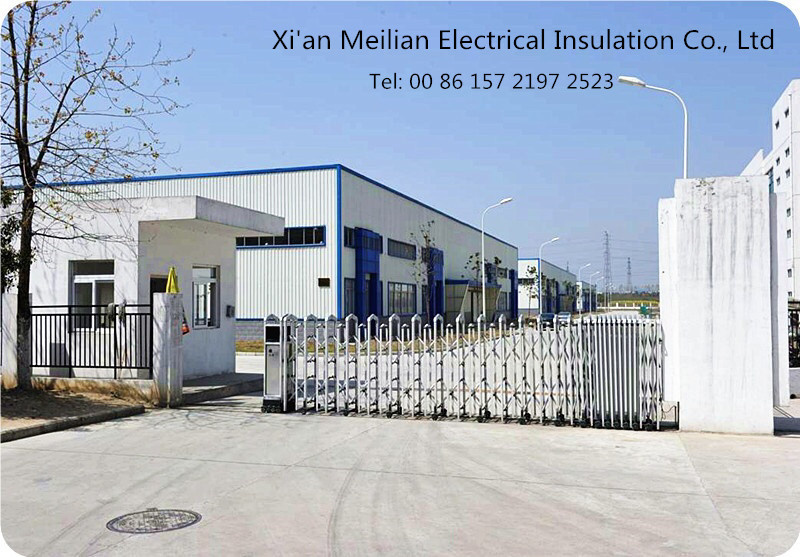

Our company is in Xi' An high tech Development Zone, mainly producing magnetic/electrical insulation laminates, slot wedges, thermal expansion materials, insulation varnish, impregnated cloth, insulation tube/sleeve/rod and etc. Our products are widely used in the fields of wind & thermal power, aviation, railway, military power transmission, motors and transformers and etc.
We have experts in R&D group which ensure the continuity and stability of the product quality and cost. The issued testing results apply to domestic and internaltional standards.

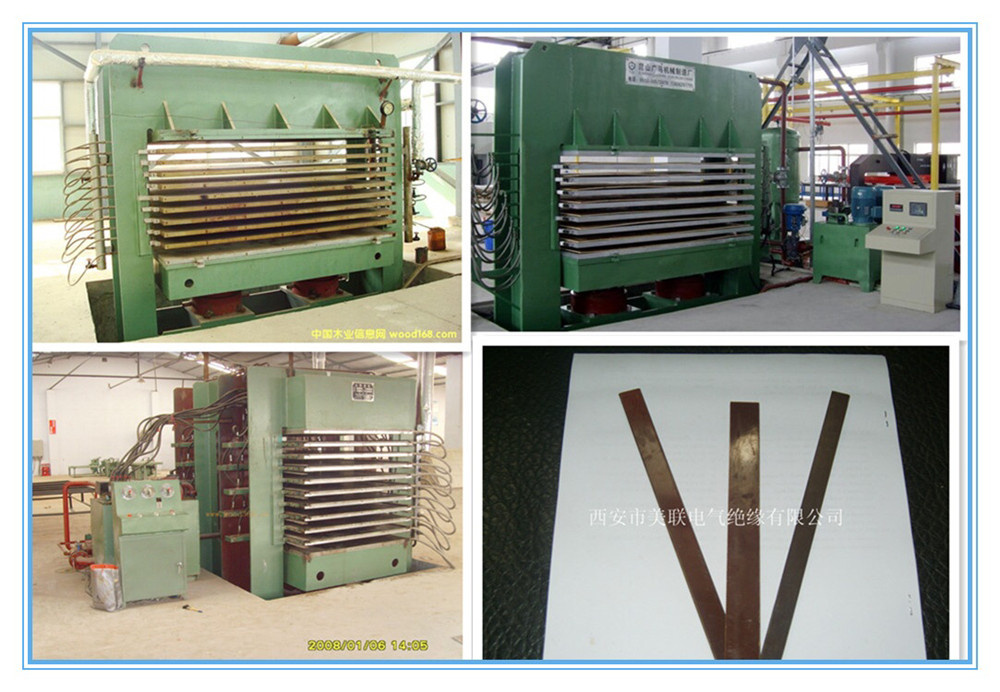

Our company covers 5000 square meters with 4 production departments: Magnetic board, Insulating materials, High voltage electrical appliance, CNC and slot wedge processing. WIth more than 50 sets of reactor, gluing machine, large-scale equipment, hot press, high vacuum impregnation and testing equipments, our annual production capacity can totally reach 800 tons.
We are founded in 2006. By 2007-2008, we passed 9001-2000 certification, Xi' An city Science and Technology Bureau identified us as "the city of Xi' An high-tech enterprises".
The spirit of our company is: "Good Reputation, Best Products, Wonderful Services
