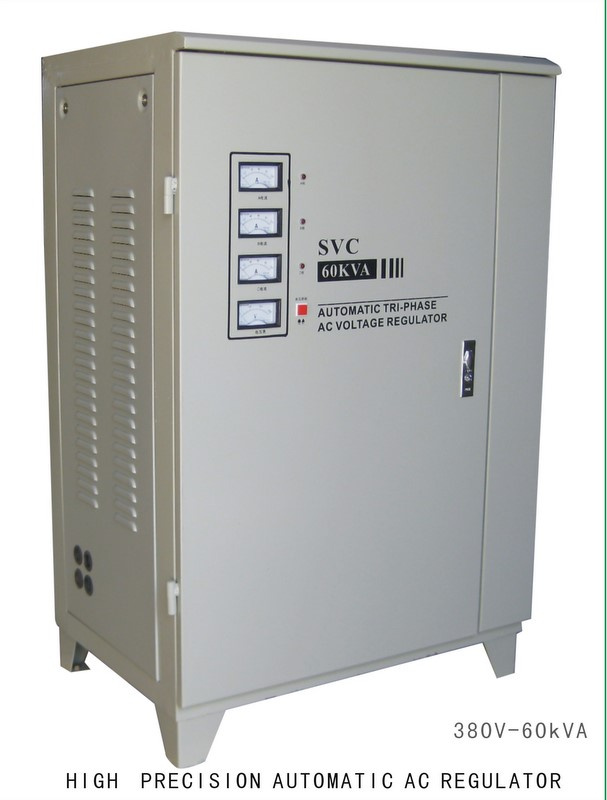

380V Automatic Voltage Regulator / Regulator Voltage

Name: 380V Automatic Voltage Regulator / Regulator Voltage
Brand: all-electronics-online.com
SKU: 665151315
Availability: InStock
Rating: 4.3 (110 reviews)

Price:	US $ 200/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	6KVA, 9KVA, 15KVA, 20KVA, 30KVA, 40KVA, 50KVA, 60K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Whilte
Core Material:	Copper
Current Type:	AC
Phase:	Three Phase
Usage:	DBW
Frequency:	Low Frequency
Brand:	Sanyu

Product Description

1. 380V automatic voltage regulator / regulator voltage ----
6KVA, 9KVA, 15KVA, 20KVA, 30KVA, 40KVA, 50KVA, 60KVA

2. CE, ISO9002, SGS, CCC certificates, etc.

3. Features:

This series of voltage regulators with self-voltage regulation or compensation Surge, has features of small size, light weight, continuously adjustable voltage, output voltage and high precision, wide range of voltage regulation, low loss, no waveform distortion, which is widely used for civilian appliance regulators, industrial equipments, medical devices.

It's the most cost-effective regulated power suply on the current market.

This series of regulated power supply has set up the over-voltage protection, the length of delay time and selective output, overcurrent protection functions.

It's leading among the similiar products.

Input voltage	280-430, Ultra-low voltage230-430V
Output voltage	380±3%
Phase	Three phase
Frequency	50-60Hz
Adjustment time	less than 0.5s, Input voltage change 10%
Rated output current	1.5KVA	3KVA	4.5KVA		6KVA	9KVA	15KVA	20KVA		30KVA	50KVA
	2A	4A	6A		8A	12A	20A	28A		40A	60A
Ambient temperature	-5 degree to 40 degree
Temperature rise	Less than 60 degree
Relative humidity	Less than 90%
Waveform distortion	No additional distortion
Efficiency	More than 90%
Pressure	Meet part standards

Model specifications				Machine size mm					Weight kg
SVC three-phase 1500VA				305×560×165					21
3000VA				350×610×185					26
4500VA				350×610×185					28
6000VA				280×380×670					43
9000VA				320×380×790					56
15000VA				435×410×780					83
20000VA				515×460×820					110
30000VA				510×460×990					131
50000VA				510×800×990					164
