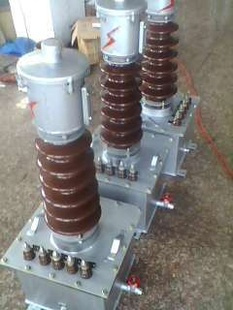

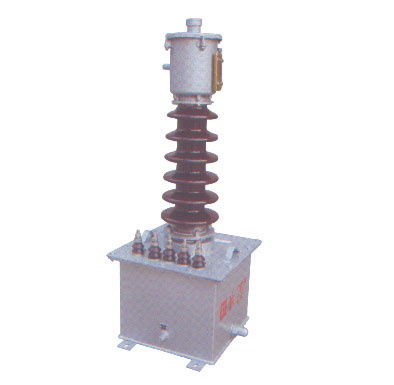

38kv Bil200kv Power Transformer for Recloser Pole Mounted
| Price: |
US $ 500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
JDJJ |
| Application: |
Instrument |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Separated Winding Transformer |
Product Description
8.02.MANUFACTURER′S GUARANTEED TECHNICAL DATE SCHEDULE |
| FOR 33kv OUTDOOR TYPE SINGLE PHASE POTENTIAL TRANSFORME |
| | | | | | | |
| | | | | | | |
| S1.No. | Description | Unit | BPDB′S Requirement | Manufacturer′s Guaranteed Particulars |
| 1 | Manufacturer′s name&country | | To be mentioned | HEMG |
| 2 | Manufacturer′s model no. | | To be mentioned | JDJJ-33KV |
| 3 | Type | | Induction type | Induction type |
| 4 | Construction | | Oil Tank | Oil Tank |
| 5 | Sealed Oil Tank | YES/NO | To be mentioned | YES |
| 6 | Ratio | V | (33000/√3)/(110/√3)/(110/3) | (33000/√3)/(110/√3)/(110/3) |
| 7 | No of phase | Nos | single phase | single phase |
| 8 | Total capacitance at 100Hz | PF | To be mentioned | 28 |
| 9 | 50HZ1(one)minute withstand voltage wet | KV | To be mentioned | 68 |
| 10 | Impulse withstand (1.2/50 micro sec wave) | KV | 170 | 170 |
| 11 | Rated burden per phase | VA | (20+20) | 20+20 |
| 12 | Class of Accuracy:- | | | |
| | a)Metering | | 0.2 | 0.2 |
| | b)Protection | | 3P | 3P |
| 13 | Temperature co-efficient of ratio per ºC | | To be mentioned | YES |
| 14 | System Earthing | | Effectively earthed | Effectively earthed |
| 15 | Creepage Distance | mm/kv | 25(Min) | 25(Min) |
| 16 | Maximum errors with 5%primary voltage : | | | |
| | a)RatiO | % | To be mentioned | + - 0.2% |
| | b)Phase angle | minutes | To be mentioned | 10 |
| 17 | Total weight complete | KG | | |
| 18 | Outling Dimensional&Cross-section Drawings of offered CT&Mounting structure | | To be submitted | 80x46x105CM -yes |
| 19 | Printed catalogue describing specification and technical data of the offered type CT | | To be submitted | yes |
| 20 | Standard | | | As per relevant IEC60044-2 Standard | yes |
| | | | | | | |
