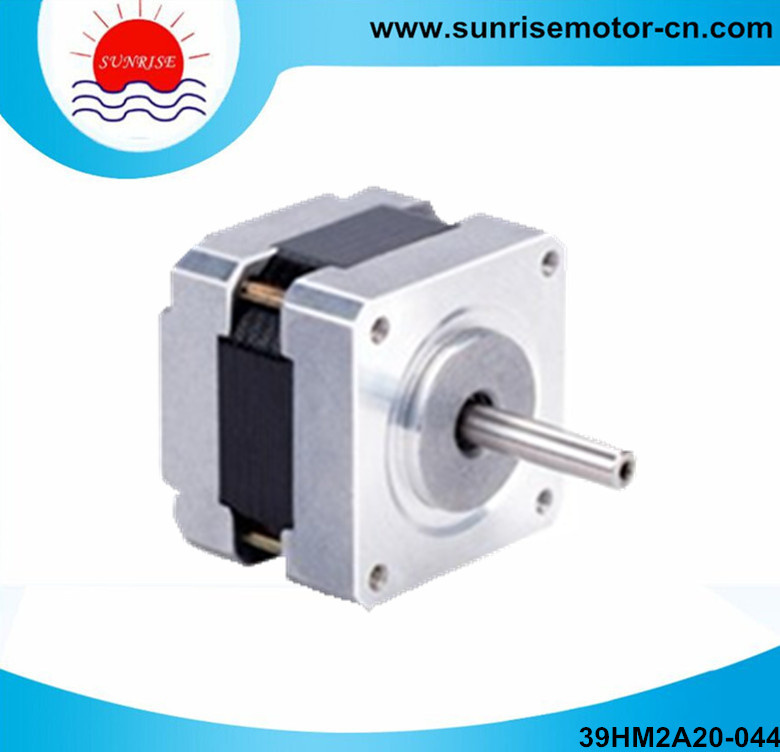

39hm2a20-044 NEMA16 0.9degree 2- Phase Hybrid Stepping (stepper) Motor

Name: 39hm2a20-044 NEMA16 0.9degree 2- Phase Hybrid Stepping (stepper) Motor
Brand: all-electronics-online.com
SKU: 670470375
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 6.8-7.7/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	39HM2A20-044
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	39hm2a20-044
Holding Torque:	8n.Cm
Current:	0.42A
Resistance:	20ohms
Inductance:	16mh
Length:	20mm
Wire:	4
Weight:	100g
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Operate Mode:	The Three Single Phase
Brand:	Sunrise Motor
Type:	Hybrid
Certification:	SGS

Product Description

2 phase Hybrid Stepping Motor 0.9° NEMA16
Model: 39HM2A20-044
Holding torque: 8N. cm
Current: 0.42A,
Resistance:20ohms
Inductance: 16mH
Length: 20MM
Wire: 4
Weight: 100g,

Remark:
Motor are available with different winding and mechanical modification to meet specific applications.

Model	Holding Torque (N@ cm± 10%)	Current/Phase(A)	Resistance/Phase (ohms± 10%)	Inductance/Phase (mH± 20%)	Detent Torque (N@ cm)	Rotor Inertia (g-cm 2 )	Length (mm)	Weight (g)
39HM2A20-044	8	0.42	20	16	0.5	15	20	100
39HM2A26-064	14	0.6	9	16	0.8	18	26	120
39HM2A34-064	16	0.6	9	15	1.1	23	34	160
39HM2A34-124	16	1.2	2.5	3.6	1.1	23	34	160
39HM2A34-046	12	0.4	30	16	1.1	23	34	160
39HM2A40-064	22	0.6	12	20	1.4	30	40	210
39HM2A40-124	22	1.2	3.2	5.5	1.4	30	40	210
39HM2A40-046	18	0.4	30	26	1.4	30	40	210

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
