| Prod Model: |
SC/APC Fast Connector |
| Business Type: |
Manufacturer |
| Polishing: |
PC, APC |
| Products Name: |
Sc Fiber Optic Fast Connector |
| Tight Buffer Diameter: |
250um |
| Fiber Type: |
3.1X2.0mm Drop Cable or 3.0/2.0/0.9mm Cable |
| Insertion Loss: |
0.3dB |
| Exchangeability: |
<0.2dB |
| Operating Temperature: |
-40c ~ +85c |
| Transmission Medium: |
Single-Mode |
| Structure: |
SC |
| Number Of Cores: |
Single-Core |
| Ferrule Endface: |
APC |
| Light Source TYPE: |
Fiber Optic |
Product Description

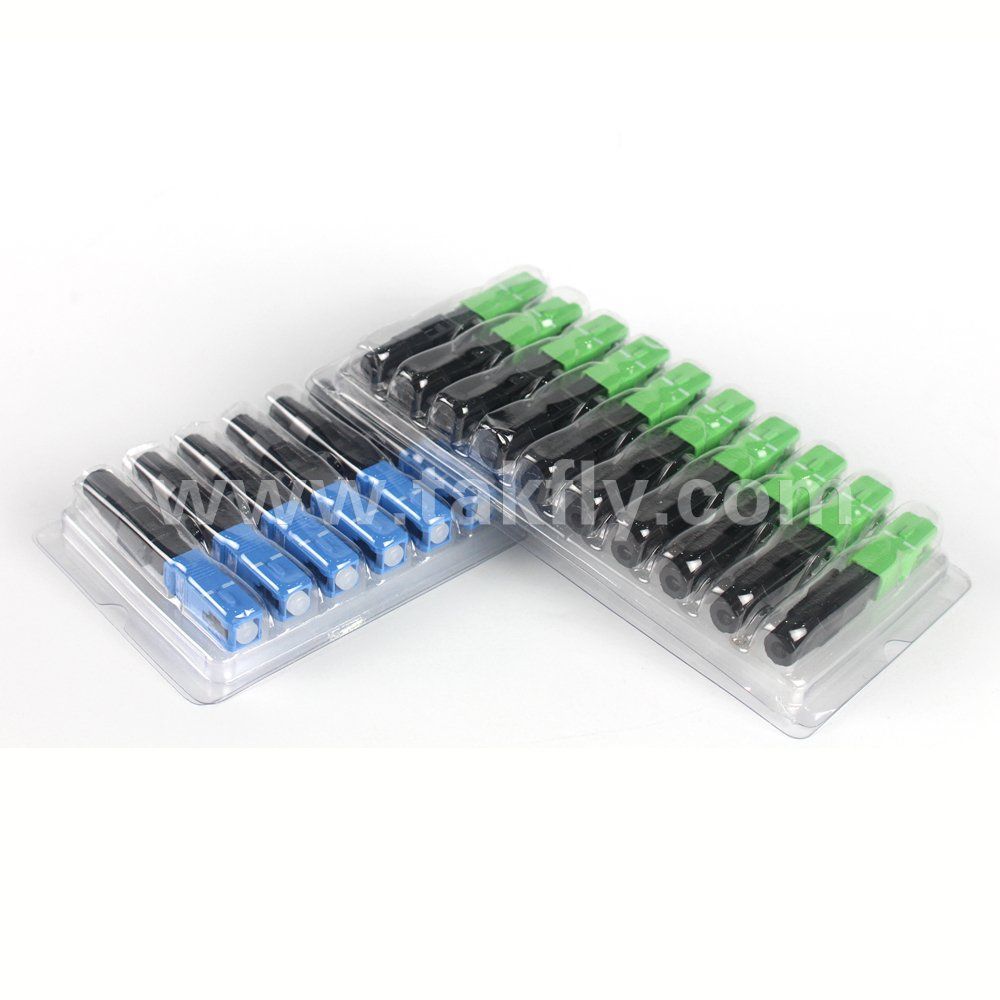

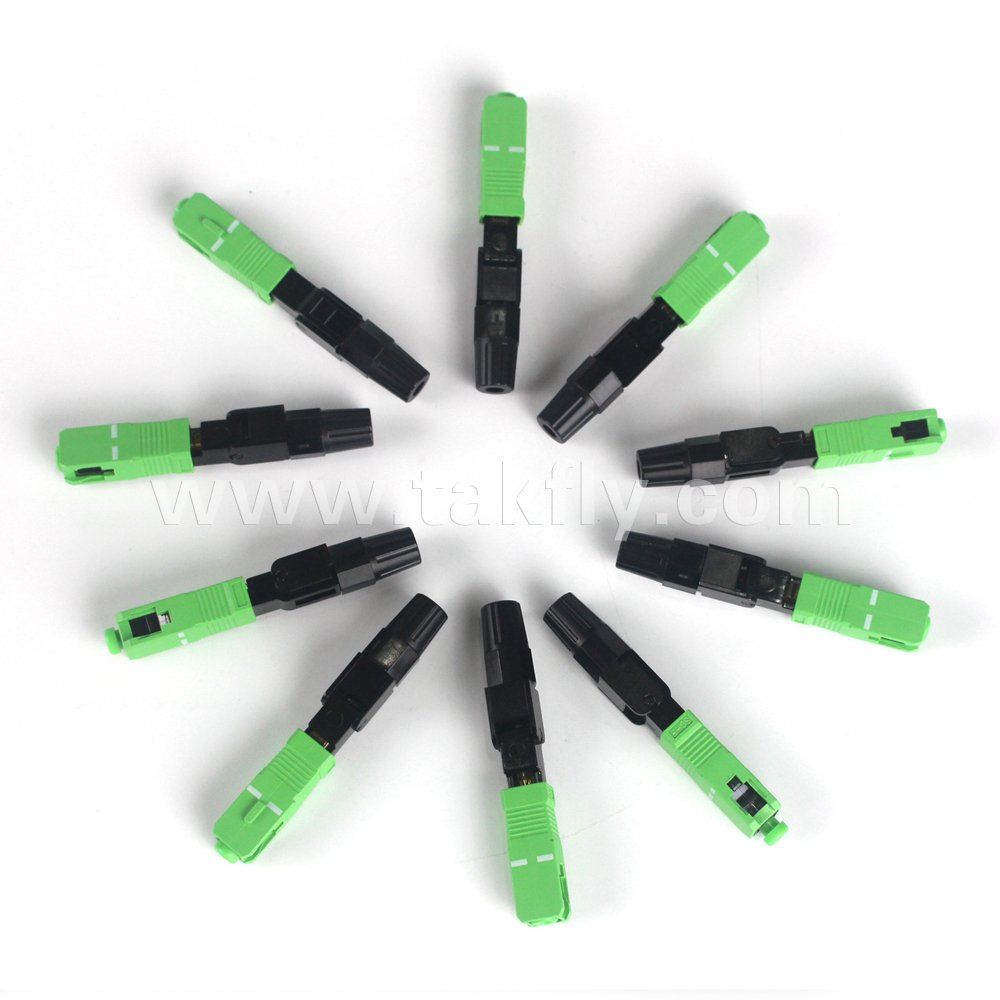

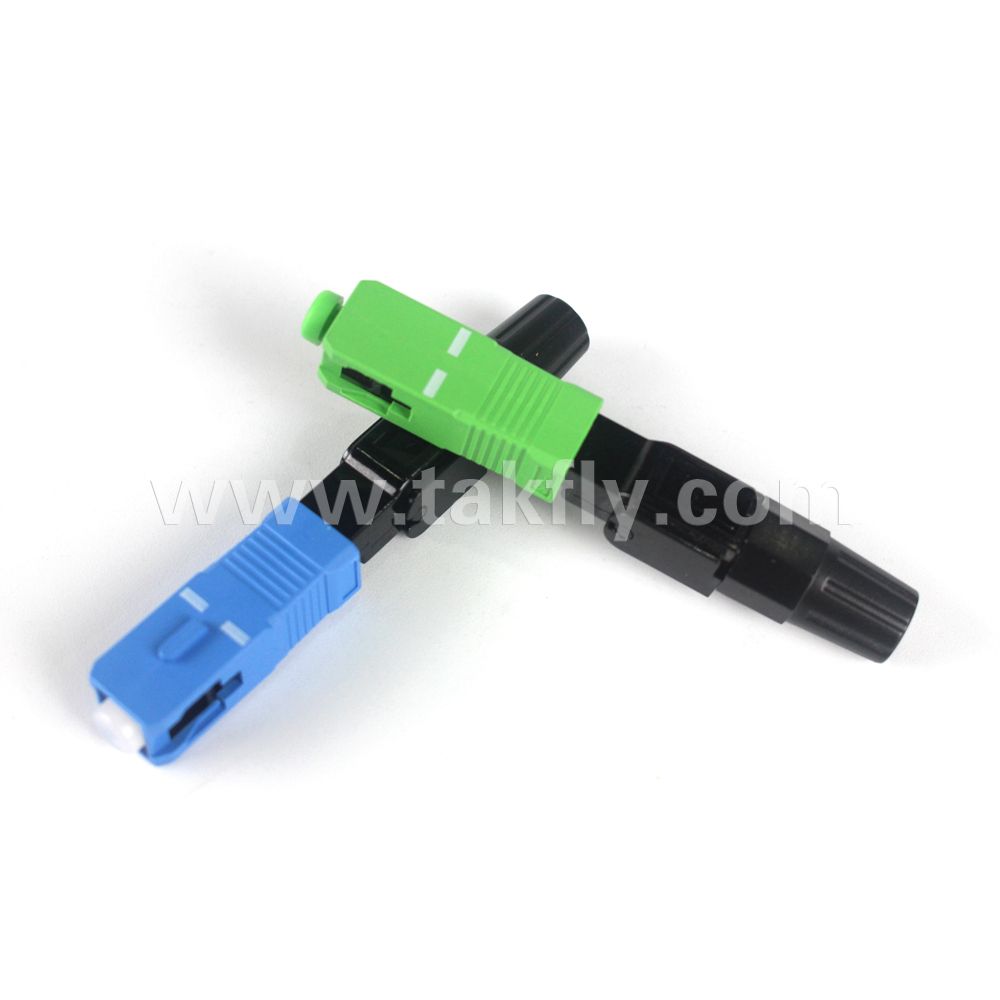

0.3dB Fiber Optic Field Assembly SC/APC Fast Connector
Specification1.Quick fiber connector
2. Easy assembly
3.Without further processing
4.Excellent stability
5.Low insertion loss,100%
Features 1.Easy assembly, no need special assembling tool
2.Without further processing, such as polishing
3.Excellent stability with low insertion loss, 100% qualified
4.Can reduce the defect rate because of being able to reconnect
Specifications
Item: |
Specification: |
Product Name: |
sc/pc fiber connector adapetr HM-FC10 |
Applicable for: |
3.1x2.0mm drop cable or 3.0/2.0/0.9mm cable |
Optical fiber diameter: |
φ125um (657A&657B) |
Tight buffer diameter: |
φ250um |
Fiber mode: |
Single mode |
Operation time: |
About 10s (exclude fiber cut) |
Insert loss: |
≤0.3dB (1310nm & 1550nm) |
Return loss: |
≥40dB |
Fastening strength of naked fiber: |
>5N |
Tight clamping force cladding: |
>8N |
Tensile strength: |
>50N |
Using temperature: |
-45°C~+80°C |
Item | Single mode | Multi mode |
| Insertion loss | PC<0.3dB APC<0.2dB | <0.3dB |
| Return loss | PC>45dB APC>60dB | >25dB |
| Insert-pull test | 1000(times) <0.2dB |
| Operating temperature | -40°C ~ +85°C |
| Ceramic ferrule spec | 125.5um concentricity deviations: <1um | 127um concentricity deviations: <3um |
| Suitable fiber | PC/APC(9/125um) | PC(50/125um,62.5/125um) |
Why choose Takfly ?Service1.Customer's logo: Acceptable
2.General inspection on fixing before packing
3.Third party inspection: Acceptable
Quality ControlAll products must go through five checks before manufacturing process
1.Material incoming inspection before production
2.Full check after every individual process finished
3.Full check after production half-done
4.Full check before packing
5.Spots check after production packed before shipping
Advantage1.15 years experience in manufacturing fiber optic products..
2.Availability of R & D with more than 10 engineers.
3.Available of design and making mold with special molding house.
4.High quality, attractive price and fast delivery(2-7days)
5.OEM, ODM customer designs are also welcomed
6.More than 200 workers
7.Excellent survice
