3G WCDMA GPS Tracker Gvt430 GPS/ GPRS Based Tracking Device Designed for Heavy Motorbike

Prod Model:	GVT430
Type:	GPS Tracker
Use:	Automotive&Hand Held
Operating Principle:	Mixed Type
Port Number:	Sequencing Channel
Carrier Frequency:	Single Frequency
Model:	Gvt430
Screen Size:	No Screen

Product Description

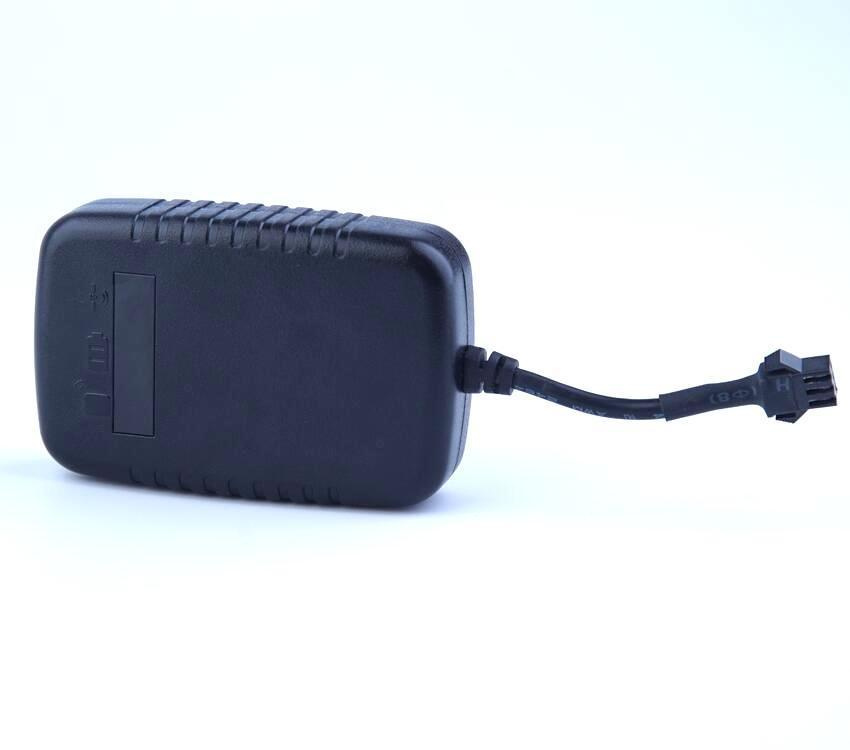

3G WCDMA GPS tracker GVT430 GPS/ GPRS based tracking device designed for heavy motorbike


Products Overview
    Tracker is a GPS/ GPRS based tracking device designed for heavy motorbike, intercity bus,school bus and fleet management And support WCDMA 3 G network.
   It has built-in terminals of GPS module and GSM communication module, which are used for getting the location data and send it to authorized phone number via SMS, and tracking through free maps Google Earth or Google Map; at the same time, the GSM module can be sent data to the internet server, which can realize the checking, monitoring and managing of the device on computer.

Specification:


Items	Specification
Charging Voltage	DC 9-90V/1.5A
Built-in battery	820mAh
Working current	70mA
Internal memory	8M
Dimension	88mm X 50mm X 20mm
Weight	90g
Operating Temperature	-20 ~ +55 °C
GSM Module	GSM 850MHZ/ EGSM 900MHz/ DCS 1800MHz/ PCS 1900MHz WCDMA 900MHz / WCDMA 2100MHz * Two types of modules, when using, must confirm local 2G (GSM) and the frequency of 3G (WCDMA)
GPS Chipset	Ublox chipset
GPS Sensitivity	-161dB
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz
Channels	50 Channels
Position Accuracy	<10 M, 2D RMS
Velocity Accuracy	0.1 M/S
Time Accuracy	Satellite Time :1 millisecond time synchronization
Update Time	Average 0.1 second
Hot Start up	Average 1 second
Warm Start up	Average 31second
Cold Start up	Average 29 second
Cold Start up Max.	Altitude 18,000m (Max. 60,000 ft)
Max. Speed	515 m/s (max.1000 knots).
Max. Acceleration	Less than 4g
LED	Three LED for showing states of power,GPS,GSM

LED indicator light and wire


Red LED- Power
Always on	Charging
1s on and 3s off	Normally work
Blue LED- GSM
0.3s on and 0.3s off	GSM module is initializing
Always on	Failed to registered network
1s on and 3s off	GSM module is registered network
0.1s on and 3s off	GSM module is registered network and GPRS function works well
Orange LED- GPS
0.3s on and 0.3s off	GPS module initializing
1s on and 3s off	GPS module works well, but GPS position is not fixed
0.1s on and 3s off	GPS module works well and GPS position is fixed
port
The external GSM antenna port	Connect the GPS antenna
The external GPS antenna port	Connect the GSM antenna
The external power connecting port	Connect the device

Package include
1* Main unit GVT430 (built in battery)
1* GPS antenna
1* GSM antenna
1* External power connecting wire
