3kVA/2.4kw 1/1, 3/1 Phase Pure Online UPS with DSP Control, Uninterruptible Power Supply
| Price: |
US $ 300/Set |
| Min Order: |
5/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SUN-S 3KVA/2.4KW |
| Efficiency: |
>90% |
| Alarm: |
Auto |
| Mute: |
Auto |
| Thdi: |
<5% |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Unbalanced Loads |
| Brand: |
Supspower |
Product Description

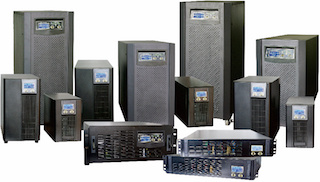

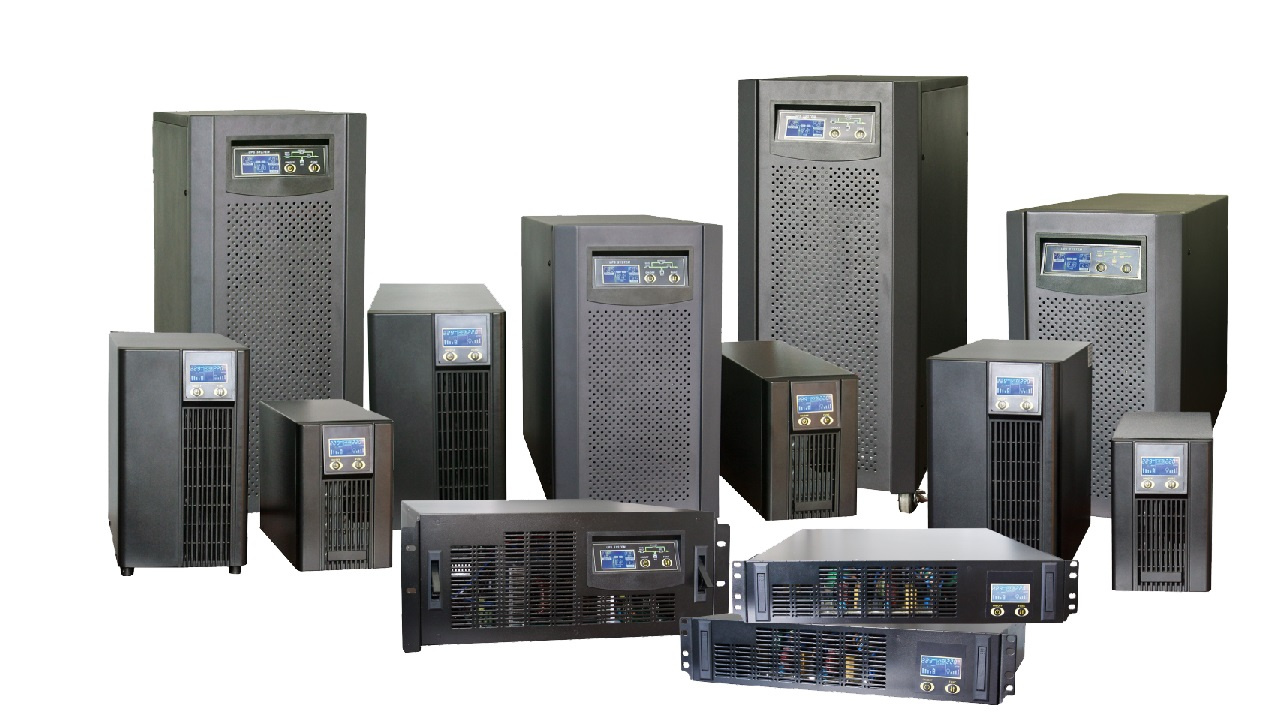

SUN-S Series is a double conversion 1/1, 3/1 Phase pure online UPS with DSP control. It has been designed for mainstream double conversion system with N+1 or N+X parallel redundancy feature, and manufactured with advanced SMT international standard, which provide outstanding stability and reliability.
| Capacity | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.4KW | 6KVA/4.8KW | 10KVA/8KW | 10KVA/8KW | 15KVA/12KW | 20KVA/16KW |
| UPS Structure | Double Conversion High Frequency Online |
| Appearance | Tower or Rack-Mount Type |
| Overall Efficiency (AC-AC ) | > 99% |
| Noise(In 2 meters) | <50dB |
| Working Temp | 0-40ºC |
| Storage Temp | -15~ 60ºC(Without BATs) |
| Humidity | < 95% Non-Condensing |
| Safety Standard | GB/T14715 |
| EMC Standard | EN50091-1/2 |
| Protections | Overload, Short-Circuit, Over Temp., Utility Power Voltage High/low, BAT Voltage High/low |
| Parallel Redundancy | None | Available |
| DC Start | Available |
| Generator Compatibility | Available |
| Manual Maintenance Bypass | None |
| Display | LCD/LED: UPS Status, INV Status, Bypass Status, BAT Status, BAT %, Load %, Fault Messages |
| Alarm | Auto |
| Mute | Auto |
| Rectifier Specification |
| Input Voltage Range | 100% Load:160~300Vac,50%Load:115~300Vac | 175 ~ 280Vac | 304 ~ 478Vac |
| Input Frequency Range | 45-65 Hz(Auto-Tracking) |
| Input PF | 0.99 |
| THDI | < 5% |
| Output Specification |
| Output Voltage | 220Vac |
| Output PF | 0.8,0.9 optional |
| Output Voltage Regulation | 220Vac±1%(Static Load);220Vac±2%(50-0% Sudden Change) ;220Vac±3%(100-0% Sudden Change) |
| Output Freq.(Online Mode) | When 46Hz ≤Input Freq.≤ 54Hz,Input Freq.=Output Freq.;When Input Freq.<46Hz or >54Hz, Locked at 50Hz |
| Output Freq. (BAT Mode) | 50Hz± 0.2% |
| Output Waveform | Pure Sine Wave |
| Distortion | <1%(Linear Full Load),<3%(None-Linear Full Load) |
| Overload | > 125%: More than 1 min | > 120%: More than 1 min |
| > 150%: 300 ms transfer to bypass | > 150%: 300ms transfer to bypass |
| Crest Ratio | 3:01 |
| Efficiency | >90% |
| Short-Circuit | Circuit Auto Protection,Output Voltage/Current 0 |
| Output Abnormal | INV Output Auto-Locked Protection |
| Noise Suppression | EMI/RFI Wave filter |
| BAT Low | Shutdown Protection |
| Dynamic Response | 3% at full load,recovering in 20ms |
| Auto-Restart | Available |
| Software Control | Available |
| Bypass Specification |
| Static Bypass Transfer Time | 0ms |
| Static Bypass Range | 80Vac± 5% ~285Vac±5% |
| Bypass -> INV Transfer Time | 2ms |
| Battery Specification |
| Type | Sealed Lead Acid Maintenance Free |
| Backup time | 5-10min | 5-10min | 5-10min | 5-15min | 5-15min | 5-15min | ------------ | -------------- |
| Ext. Model Rate Volts/Units | 36Vdc | 72Vdc | 96Vdc | 192Vdc | 192Vdc | 192Vdc | 192Vdc | 192Vdc |
| Std. Model Charging Current | 1A | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Ext. Model Charging Current | 6A | 7A | 7A | 7A | 7A | 7A | 7A | 7A |
| Communication Specification |
| Communication Port | Rs232 (Std.);/SNMP/RS485/ Dry Contact (Optional Accessory) |
| Remote Software | Multi-functional Monitoring System, Online and BAT Mode Status, BAT Fault, Remote Control |
| Physical Parameters |
| Size mm(D×W×H) | 355x145x220 | 433x190x318 | 433x190x318 | 6/10K Std.:500×240×620 | 500x240x620 |
| 6/10K Ext.:500×240×460 |
| Net weight Kg | 9.8/6.5 | 18.5/10.5 | 21/11.5 | 57/20 | 67.5/22 | 27 | 35 | 35 |
| Size mm(RM D×W×H) | 430×450×88 | 430×450×177 | -------- | ---------- | ---------- |
| Net weight Kg | 7 | 10 | 14 | 18 | 20 | -------- | ---------- | ---------- |
Note: Specifications are subject to change without further notice.
SHIDA (SUPSTECH), founded in 1997 as a subsidiary corporation of START COMPUTER GROUP, is based in Shanghai. We are one of the leading 1st generation of uninterruptible power supply (UPS) solution providers in China. For 20 years, we have been specialized in the research, manufacture, sales and services of UPS with our production base in Shenzhen. We accumulated rich experiences and typical cases in the range of applications to banks, insurance, securities, financial industry, international airport, utility electric supply, radio and television network, metro system, maritime bureau, medical system, public services, education, and cloud data center. Also we are working with GE, Delta, Emerson, Pakistan National Banks, Vodafone, Cornell University, InfoSec, and Olympic Organizing Committee internationally. Till now we have more than 20 offices & service centers at home and abroad, is the honorable brand name both in China and overseas.
With production capacity of 150, 000 units and 20 years of experiences in UPS industry, SUPSTECH ensures you with proven technique, high reliable quality, cost-effective and outstanding service.
