Qingdao Powtech Electronics Co., Ltd. >> 3kVA 3000va 110V in /110 Output Electric Railway Inverter Power Inverter

3kVA 3000va 110V in /110 Output Electric Railway Inverter Power Inverter

3kVA 3000va 110V in /110 Output Electric Railway Inverter Power Inverter
Price: US $ 300-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T
DC Input: 220VDC
AC Output: 127VAC, 50Hz, 1 Phase
Phase: Single
Power Source: Electric Power
Application: Office, Air Conditioning, Servers, Railway etc
Brand: Jetpower
Outlook: Tower/Rack
Capacity: 1kVA/800W
Tower Mount: 200*480*490mm/31kg
Rack Mount: 440*450*133mm/33kg

Product Description

110VDC Input 110VAC Output  railway and Electric Power Inverter(1-3KVA)

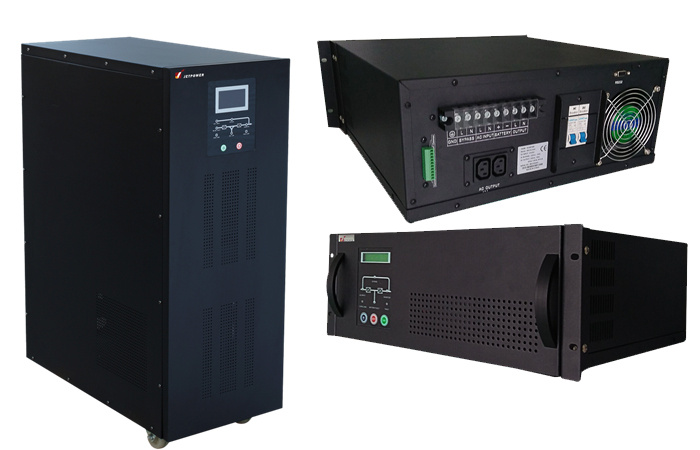

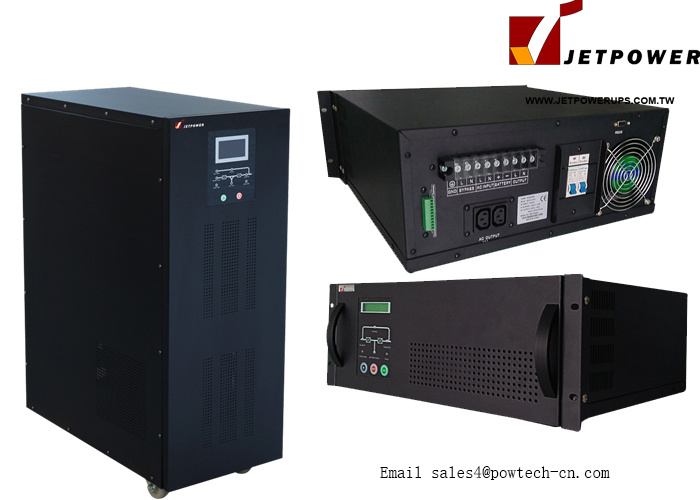

Snapshots:
Model: N110-1010
Capacity: 1kVA/800W
DC input: 110V
AC output: 110V

Introduction:
ND series are specially designed for railway and electric power industry. Their latest advanced
technology suits all critical situations which are sensitive to power interference and need stable,
 reliable, clean and uninterruptible true sine wave power supply.

Main Features:
(1) SPWM technology, pure sine wave output
(2) With output isolation transformer
(3) 100% Non linear load ability
(4) DC input reverse polarity protection,
(5) CPU control, advanced anti-interference technology, good electromagnetism compatibility
(6)User friendly LCD+LED display, easy to operate.

(7)Comprehensive protection: Over voltage, low voltage, short circuit, over load protection and etc
(8) Optional three working modes: AC mains first, DC inverter first, pure DC inverter
(9) Install: 19 inch rack or standalone

Specifications for ND110 Series 110vac Output Electric Power Inverter (1-3KVA)
ModelND110-1101ND110-1102ND110-1103
DC InputRated Input Voltage 110 VDC
Rated Input Current9.09A19A27A
DC Input Voltage Range88~132Vdc
Bypass Utility InputAC Input Voltage 110Vac±20%, 50/60Hz
Rated Input Current 4.5A9A13.5A
Bypass Transfer Time ≤4 ms
AC OutputRated Capacity1KVA2KVA3KVA
Rated Output Power0.8KW1.6KW2.4KW
Rated Output Voltage and Frequency110VAC, 50Hz/60Hz
Rated Output Current9A18A27A
Output Voltage Regulation110Vac±2%
Output Frequency Regulation50/60Hz±1%
THD≤3%
Dynamic Response                    (Load 0←→100%)5%
Power Factor0.8
Overload150%, 60s
Crest Factor3:01
Efficiency at Rated Load90%
EnvironmentInsulation Strength                      (Between Input & Output)1500VAC, 1min
Noise (1m)≤50dB
Temperature-10ºC~+50ºC
Humidity0~90%, no condensation
Altitude (m)≤2000
PhysicalRack Type (W* D * H, mm)440×450×177 440×450×177
Tower Type (W* D * H, mm)200*480*490210*612*540
Rack Type Weight (kg)303132
Tower Type Weight (kg)323334
ProtectionDC input reversely protection, DC input under voltage,over voltage, overload, short circuit, over temperature
Production&Package:








Alf Lu (Mr.)


TEL:+86 532-88721735-805
M B:+86 13854256587

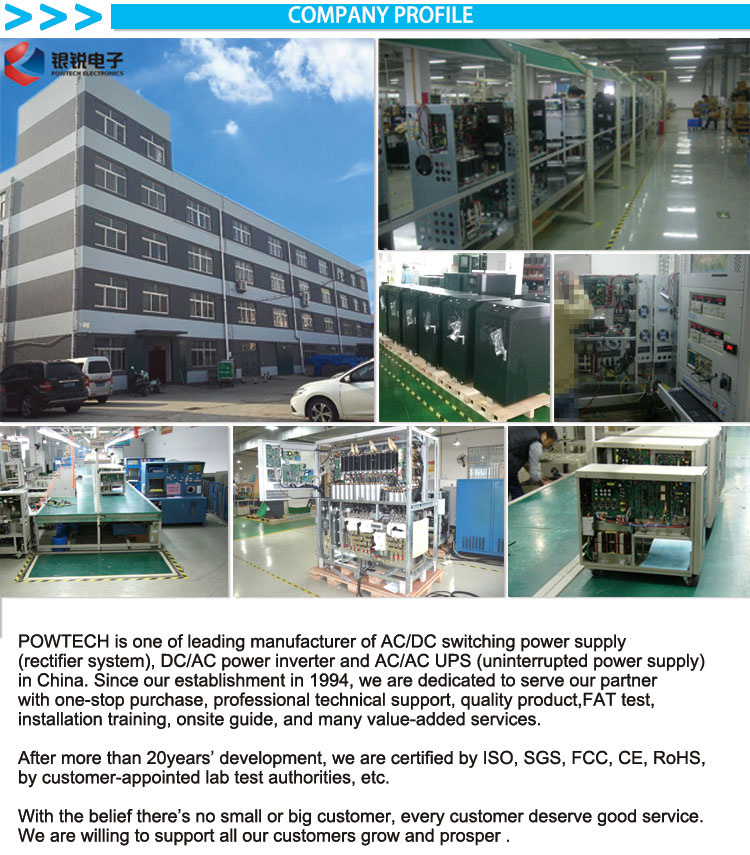

Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
