3kw Solar Controller and Inverter Integrated Machine off Grid

Name: 3kw Solar Controller and Inverter Integrated Machine off Grid
Brand: all-electronics-online.com
SKU: 781792745
Availability: InStock
Rating: 4.3 (74 reviews)

Price:	US $ 430-450/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	NKW 3KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Power Transformer
Mode:	Inverter with Built-in Controller
Controller Type:	PWM Controller
OEM/ODM:	Accept OEM/ODM
Company:	Manufacturer&Trading
Net/Gross Weight:	25/28kg
Display:	LED
Sample Order:	Accept
MOQ:	1 Unit
Warranty:	2years
Application:	Commercial
Specification:	Normal

Product Description

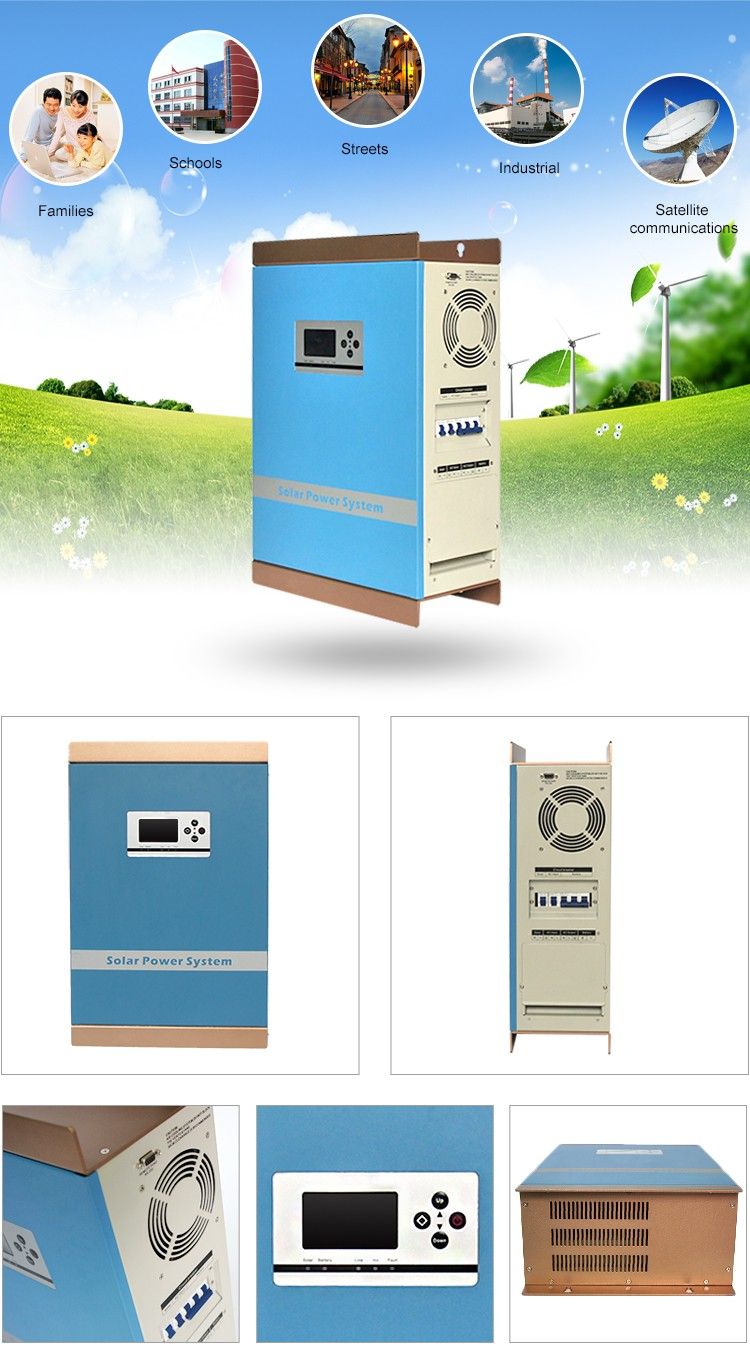

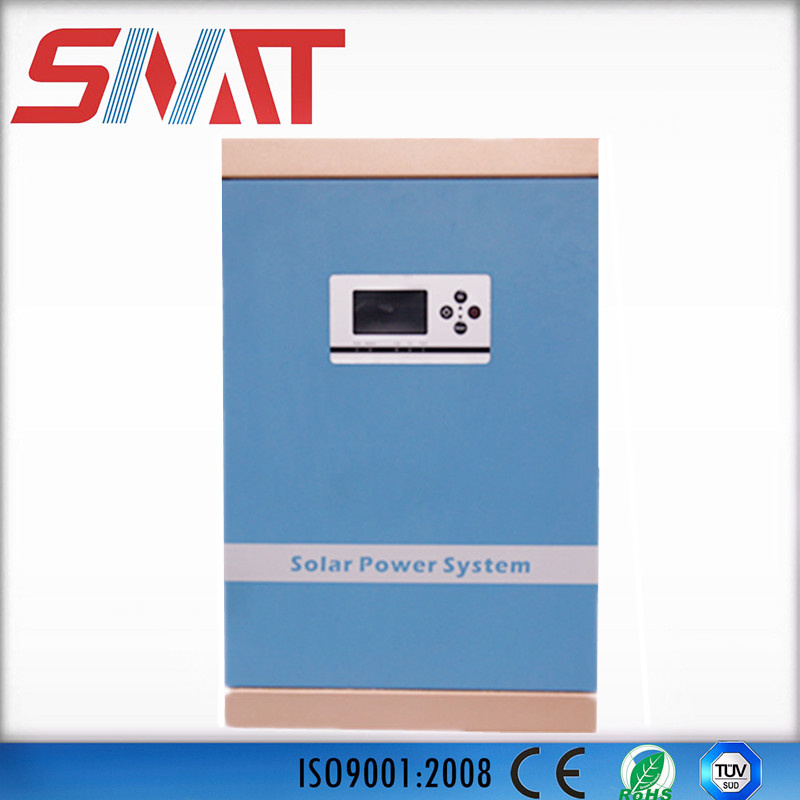

3kw Solar Controller and Inverter Integrated Machine off grid

Product overview

The product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic.Its mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.

Specification

Mode: NKP-1KW - 5KW
Rated power:1000W - 5000W
Rated voltage: 12VDC/ 24VDC /48VDC
Output voltage :110VAC/220VAC
Input voltage:85-138VAC/170-275VAC
Overload:110-120%/30S;>160%/300ms;

Advantage

--Double MCU intelligent control technology.
--pure sine wave AC output
--Mains supply preferred mode
--independent three-stage photovoltaic charge management
--LCD display

Application

*Families,
*Schools,
*Streets,
*Frontier defense,
*Pasturing areas,
*Industrial and mining enterprises,
*Satellite communications equipment,
etc.

ProtectionFunctions
--Overcharge protection,
--Overdischarge protection,
--Overload protection,
--Overtemperature protection
--Short circuit protection

Index

Mode:NKP-		3KW
Rated power		3000W
Battery	Rated voltage	24VDC/48VDC
Controller	solar input voltage	<25V;×2/24V;×4/48V;×8/96V;
	Charge current	20-60A
	Voltage of boosting charge	14.2V;×2/24V;×4/48V;×8/96V;
	Voltage of direct charge	14V;×2/24V;×4/48V;×8/96V;
	Voltage of floating charge	13.8V;×2/24V;×4/48V;×8/96V;
Inverter	Input voltage	85-138VAC/170-275VAC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110VAC/220VAC;±5%( inversion mode)
	Output frequency	50/60Hz±1%( inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms( typical load)
	Efficiency	>85%(80% resistive load)
	Overload	110-120%/30S;>160%/300ms;
	Protection function	Battery overvoltage protection, battery undervoltage protection,overload protection, short circuit protection,overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)
External dimension(mm)		175350550mm
