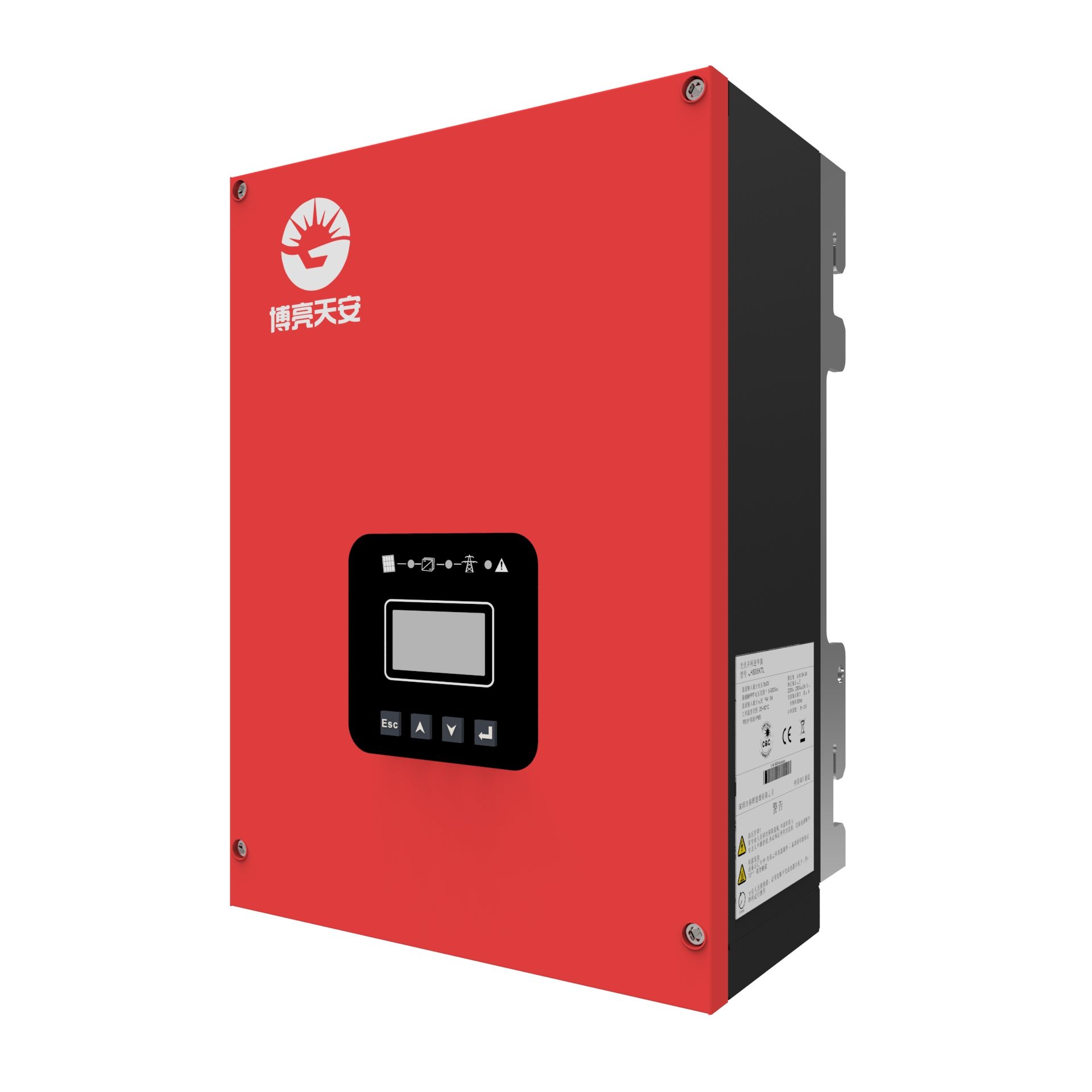

3kwp Pure Sine Wave Solar Inverter

3kwp Pure Sine Wave Solar Inverter
Price: US $ 370-493/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CHS3000TL

Product Description

*Features:
a.The most optimal transformer topology
b. High conversion efficiency
c.Double/Single way MPPT input,and a wider voltage range
d.More reasonable structure design
e.More simple localization Settings
*Flexibility:
a.Protection grade IP65, adapt to the outdoor all kinds of bad weather
b.Simple and easy installation, maintenance free
c.RS485/WIFI(optional)
d.Multi-language display
*Reliability:
a.Safety and stable automatical protection including overvoltage,low voltage,anti-islanding,short circuit,over-load protection.
b.Five years standard waranty time,and the longest would reach 20years.
*Certificates:
CQC,VDE-AR-N4105,VDE126-1-1,AS4777,IEC61727,IEC62116

 Specification
DC inputAC outputEfficiencyGeneral data
Maximum DC Power:3150W
Maximum DC Voltage:550V DC
MPPT voltage range:120-500V DC
Full load MPPT voltage range:150-500V DC
Maximum input circuit:15A
MPPT tracking no.:1/1
AC rated power:3000W
Maximum apparent power communication:3000VA
Maximum output circuit:14.5A
AC rated voltage:220/230/240V AC
AC frequency:50HZ/60HZ
Power factor, can be adjusted:>0.99
Harmonic distortion:<3%
Maximum efficiency:97.8%
European efficiency:97.2%
MPPT efficiency:99.9%
Size(Width/Height/Depth):260/370/110mm
Weight:10kgs
Working temperature:-25 ºC-+60 ºC
Protection grade:IP65
The cooling way:Natural
Internal friction at night:<0.5W
Topology:No transformer
Display:LCD
Humidity:0-95%,non-condensing
Communication interface:WIFI(optional)
