| Prod Model: |
YE3-315S-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Efficiency: |
Ie2 |
| Frequency: |
50 or 60Hz |
| Insulation Class: |
F |
| Warranty Period: |
One Year |
| Wire: |
100% Copper Wire |
| Delivery: |
in 25days |
| Protection: |
IP55 |
| Voltage: |
as User Requirment |
| Output Power: |
110kw |
| Uasge: |
Pump Fan etc |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Brand: |
Pinnxun |
| Certification: |
ISO9000 CE CCC |
Product Description
Specifications

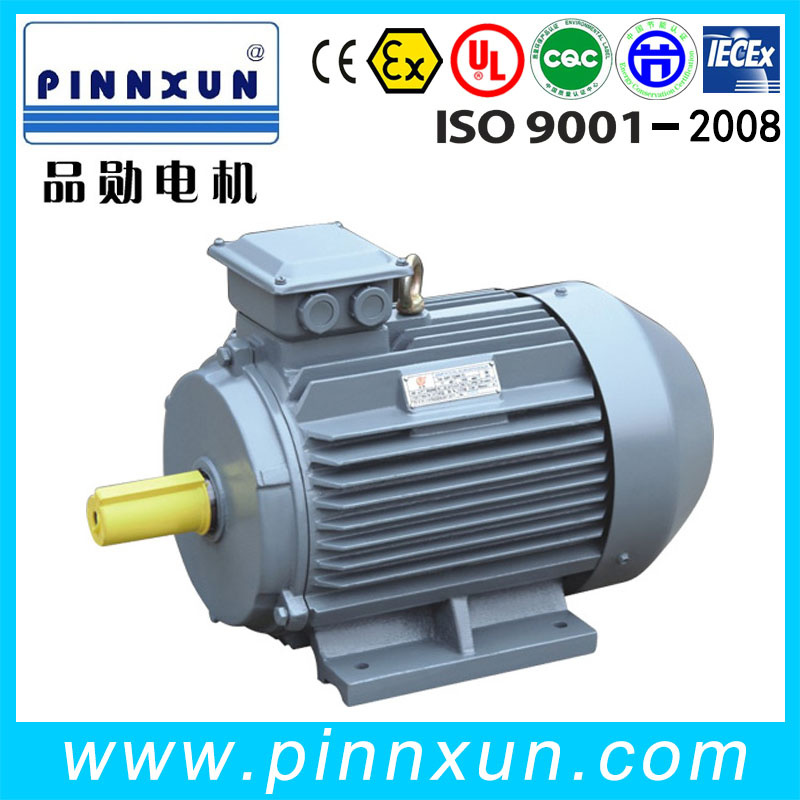

YX3 high efficiency 300hp electric motor
Certificate: IS09001-2008
Power: 0.12kw-315kw
Pole: 2 4 6 8 10
Speed: 3600-600
Degrees of efficiency: IE2(EFF1)
Degrees of protections: IP55
Degrees of insulation: F, H
Feature and usage
YX3 series high efficiency three phase motors is high efficiency energy-saving motor. Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard, according to IE2/EFF1 efficiency index of IEC standard. Our production advance in domestic and reached advanced level in international. We are on top of the name list that can get the CHINA certification for energy conservation product.
YX3 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YX3 series electric motors are in conformity with IEC standard.
YX3 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors.
YX3 series motors with the mounting dimension in accordance with standard IEC60034, is identical to the mounting dimension of Y series, Y2 series. It has good features like optimum structure unique appearance, low noise, high efficiency, high protection class as well as high insulation class. YX3 series motors can be widely used in various kinds of general use machineries like fan, pumps, machin tools, compressors, transportation and so on, and can also be used in the hazardous areas with oil and chemical, steel plants, mining industry
Ordering Informations
1. Please indicate the motor type, rated output, rated voltage, rated frequency, synchronous speed, Explosion proof Mark, mounting type, rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment, normailly we think is CW roration and used indoor.
2. When user have special requirments, For example: Dispose the stator, bearing explosion proof and bearing temperature sensors, space heater, Plateau use, specical frequency, mounting size change, special output, the user must, order can be confirm after signing the technical agreement with engneering department
|
Schematic diagram |
|
|
|
|
|
mounting type |
B3 |
B35 |
B5 |
V1 |
|
mounting Discribtion |
frame with feet,end-shield without flange |
frame with feet,end-shield with flange |
frame without feet,end-shield with flange |
frame without feet,end-shield with flange |
|
Suitable frame |
H63-355 |
H63-355 |
H63-280 |
H180-355 |
YX3 series motors are totally enclosed fan cold(TEFC). bearing type
|
|
|
|
|
Horizontal |
vertical |
|
motor frame |
DE side |
N-DE side |
DE side |
N-DE side |
|
63 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
6201-2RZ/Z2 |
|
71 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
6202-2RZ/Z2 |
|
80 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
6204-2RZ/Z2 |
|
90 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
6205-2RZ/Z2 |
|
100 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
112 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
6206-2RZ/Z2 |
|
132 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
6208-2RZ/Z2 |
|
160 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
6209-2RZ/Z2 |
|
180 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
6211/Z2 |
|
200 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(2P) |
6312/Z2 |
6312/Z2 |
6312/Z2 |
6312/Z2 |
|
225(4-8P) |
6313/Z2 |
6212/Z2 |
6313/Z2 |
6312/Z2 |
|
250(2P) |
6313/Z2/Z2 |
6313/Z1 |
6313/Z2 |
6313/Z1 |
|
250(4-8P) |
6314/Z1 |
6213/Z1 |
6314/Z1 |
6313/Z1 |
|
280(2P) |
6314/Z1 |
6313/Z1 |
6314/Z1 |
6313/Z1 |
|
280(4P) |
6317/Z1 |
6313/Z1 |
6317/Z1 |
6313/Z1 |
|
315(2P) |
6317/Z1 |
6317/Z1 |
6317/Z1 |
6317/Z1 |
|
315(4-8P) |
NU319 |
6319/Z1 |
NU319 |
6319/Z1 |
|
355(2P) |
6319/Z1 |
6319/Z1 |
6319/Z1 |
6319/Z1 |
|
355(4-8P) |
NU322 |
6322/Z1 |
NU322/Z1 |
6322/Z1 |
