Shanghai Pinnxun Electric Motor Co., Ltd. >> Yrkk Heavy Duty High Voltage Slip Ring Ball Re-Rolling Mill Large Size Asynchronous AC Electric Three Phase Induction Motor

Yrkk Heavy Duty High Voltage Slip Ring Ball Re-Rolling Mill Large Size Asynchronous AC Electric Three Phase Induction Motor

Yrkk Heavy Duty High Voltage Slip Ring Ball Re-Rolling Mill Large Size Asynchronous AC Electric Three Phase Induction Motor
Price: US $ 20000-22000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Prod Model: YRKK450-4 630KW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Slip-Ring Motor
Other Name: 6000V Air Cooled Motor
Type: High Voltage Motor
Usage: Mill Machine, Lift Machine
Insulation Class: F
Temperature Rise: B
Color: Blue
Design: ABB Siemense
Warranty: in 12 Months
Voltage: 3.3kv 6.6kv 10kv 11kv 13.8kv Air Cooled Motor
Function: Driving
Number Of Stator: Three-Phase
Number Of Poles: 2\4\6\8\10\12 Air Cooled Motor
Brand: Pinnxun

Product Description

Air Cooled motor

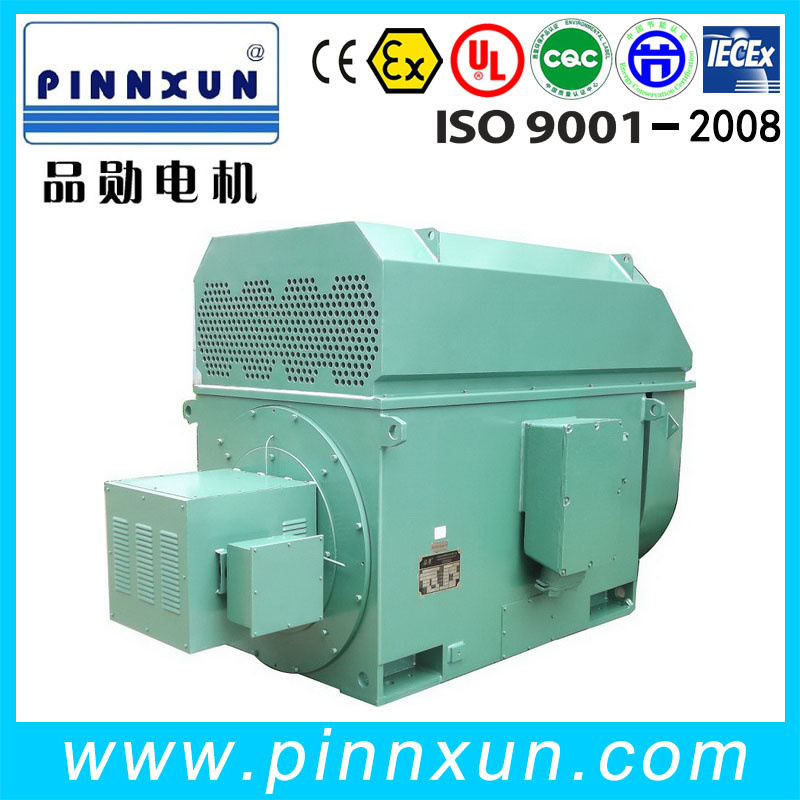

YRKK heavy duty high voltage slip ring ball re-rolling mill large size asynchronous ac electric Three phase Induction motor

slip ring motor YRKK Feature and usage:

Y,YR series,YKK,YKS,YRKK,YRKS series medium sized high voltage three phases asynchronous motors (shaft height 355-1000mm) are our optimized product series adopted the technical standard of high voltage three-phases asynchronous motors introduced from ABB and established on the basis of our experience of manufacturing high voltage motors, for upgrading the old JS,JSQ,JR and JRQ series.

These series motors adopt fine materials, excellent workmanship and features low operation cost, low noise, low vibration, high reliability and convenience for installation and maintenance.

The motors of these series meet the National Standard GB755 (Fundamental Technical Requirements For Rotation Electrical Machines), IEC Standards and Enterprise Standard of Mechanical and Electronic Industries Department JB/DQ3134, JB/DQ3135, JB/DQ3436 and JB/DQ3437.

The mechanical dimensions and tolerances of this series of motors conform with the China national standard GB l800-1804 and the ISO standard.

Specifications

Power range:160kw-6000kw

Frame Size:355-1000mm

Rated Voltage: 3.3KV 6.6KV 10KV 11KV 13.8KV

Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm

Protection Class: IP44 IP54 IP55

Cooling type;IC611 IC616

Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Frequency: 50Hz/60Hz

Insulation Class: F

Temprature rise: B

Working Duty: S1(Continuous)



No.

Squirrel cage motor

Y

YKK

YKS

Y2

Slip ring motor

YR

YRKK

YRKS

/

1

Structure

Box-type construction, made up of steel plates welded with each other

Compact struction

2

Cooling method

IC01 or (IC11, IC21, IC31)

IC611 or IC616

IC81W

IC411

3

Natural ventilation, with top mounted protection cover

With top mounted air-air cooler

With top mounted air-water cooler


4

Protection type

IP23

IP44 or IP54

IP44 or IP54

IP54

5

Insulation

F

6

Mounting arrangement

IMB3

7

Voltage available

3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv

8

Frequency available

50HZ 60HZ 0-100HZ

Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.

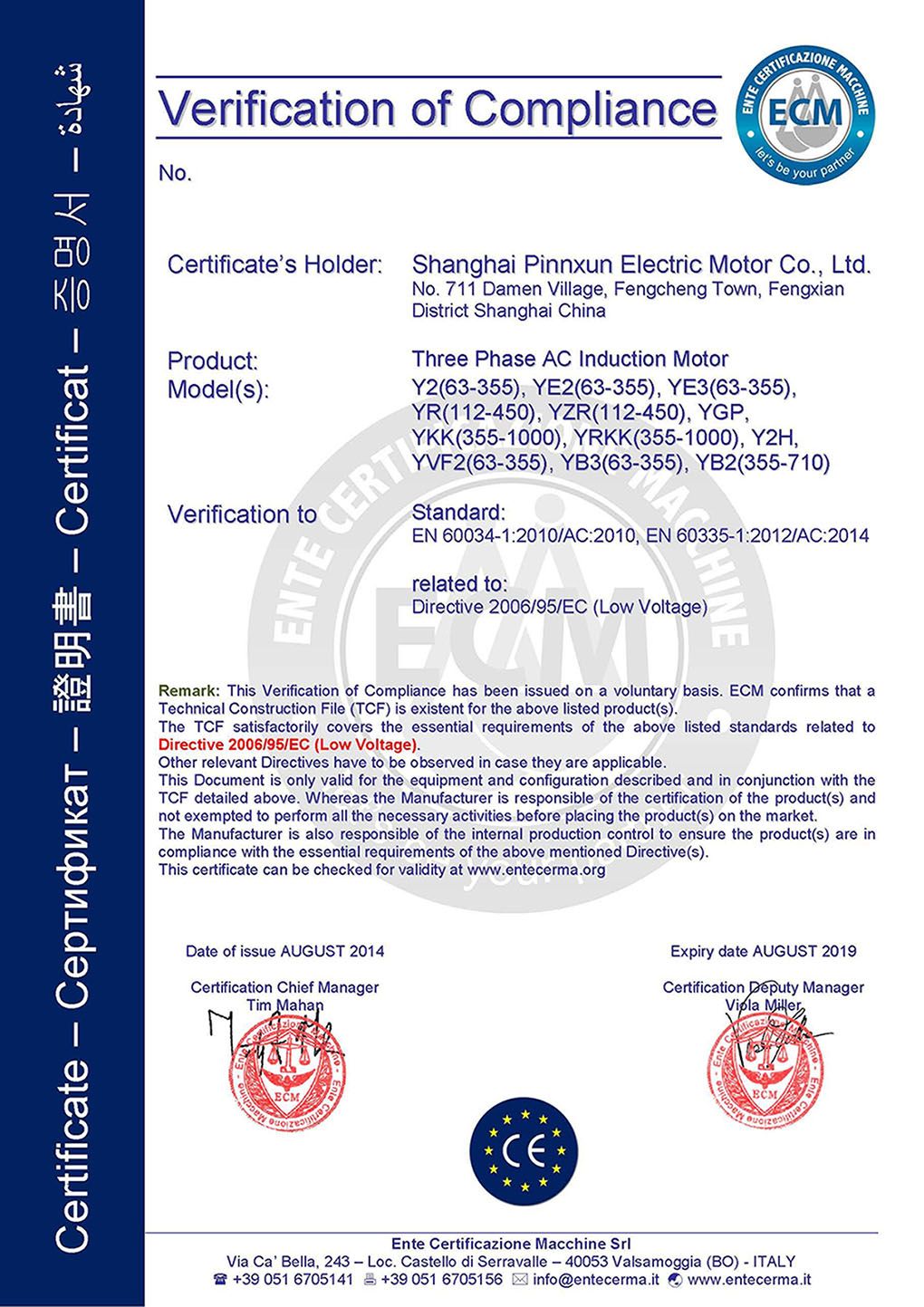

Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.

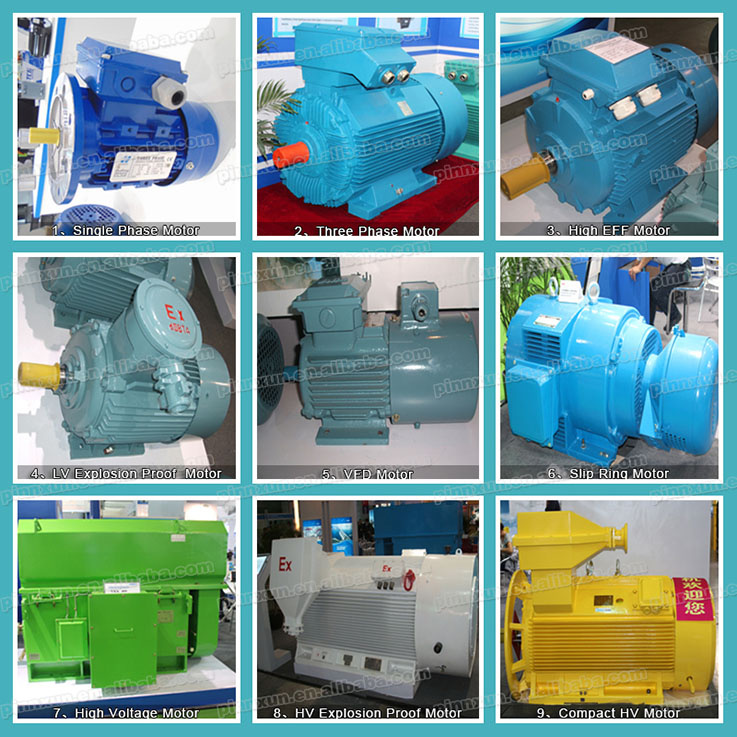

Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.

We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,

We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
