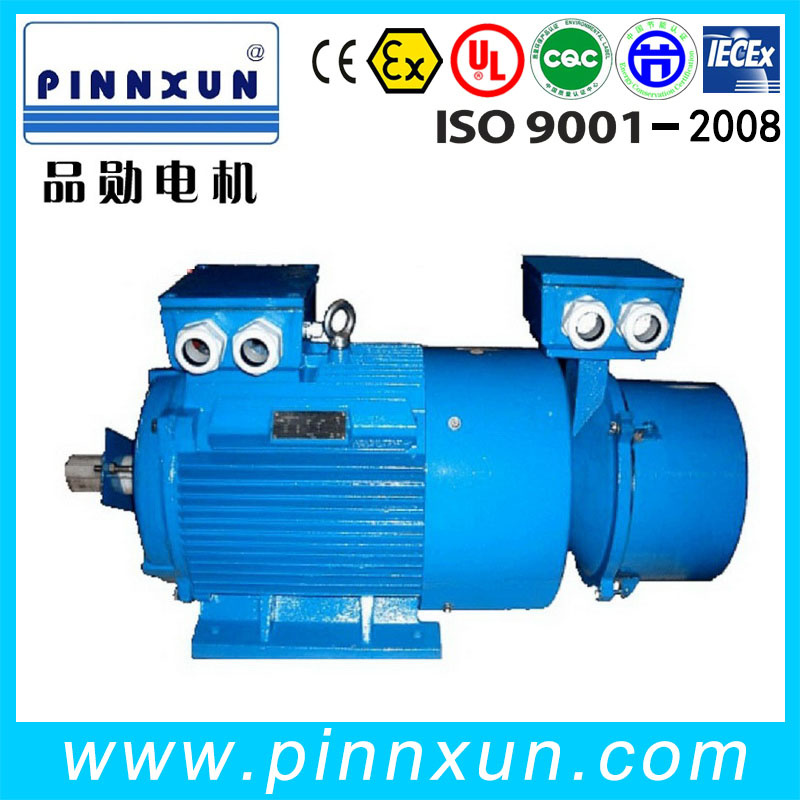

Yr Yzr Wound Rotor Slip Ring Lifting Metallurgy Crane GOST Low Voltage Ball Mill Asynchronous Three Phase AC Induction Electric Motor
| Price: |
US $ 600-680/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YZR250M-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protection: |
IP54 |
| Insulation Class: |
F |
| Voltage: |
380,440(Can Design as Requirment ) |
| Frequency: |
50Hz |
| Wire: |
100% Copper Wire |
| Output Power: |
55kw |
| Temperature Rise: |
B |
| Duty: |
S1-S5 |
| Delivery: |
in 20days |
| Warranty: |
One Year |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Brand: |
Pinnxun |
| Certification: |
ISO9001 CE CCC |
Product Description
Specifications
YR YZR Wound rotor slip ring Lifting metallurgy crane GOST Low voltage ball mill asynchronous three phase ac induction electric motor
slip ring electric YZR motor crane hoist
3kw-250kw
pole:6 8 10
for lifting machine
duty:S1-S5
underground mine motor underground coal mine gear motor ac crane low voltage slip ring wound rotor cement mill re-rolling mill
Feature and usage YZR,YZ series metallurgical and crane motor These series of metallurgical and crane 3-phase motor YZR,YZ with wound and squirrel cage rotor are specially used to drive metallurgical crane and other similar machines with better overload capability and mechanical strength,therefore,it is suitable for short time duty or intermittent period duty and equipments with frequent starting and braking or distinct vitration and impact.The standard range of power output and mounting dimensions are in comply with the reconmended standard of IEC 72,the relation between range of power output and mounting dimensions are similar to standard JEM1202 and West Germany standard DIN42681,so that most of them can be interchanged.The motor can work well when the altitude does not exceed 1000m.There are two classes of F and H insulation,Class F is applicalbe to suit temperature which cool air does not exceed 40 under normal condition,Class H is suitable for metallurgical sites when ambient temperature no exceeding 60 both motors have same data.The motors possess better enclosure,degree of protection IP44 for normal site condition,and IP54 for metallurgical condition.Motor's rated voltage and frequency is 380V,50HZ.
Motor Performance Power range:1.8-250KW
Rated Voltage: 380V-440V
Speed;1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP44 IP54
Ambient Temperature:Ambient temperature not exceeding 40°C (for crane uses) or 60°C (for metallurgical uses)
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Cooling:Frame 112-132: IC0041 Frame: 160-355 IC0141 Frame; 400 IC0151
Working Duty: S2,S3,S4,S5
1.Short-time duty type (S2)
Operation of constant load during a given time, less than that required to reach thermal equilibrium, followed by a rest and de-energized period of sufficient duration to re-establish machine temperature within 2 deg K of the coolant.
2. Intermittent periodic duty type (S3)
A sequence of identical duty cycles, each including a period of operation at constant load and a rest and de-energized period but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium In this duty type, the cycle is such that the starting current does not significantly affect the temperature rise.
3. Intermittent periodic duty type with starting (S4)
A sequence of identical duty cycles, each including a significant period of starting, a period of operation of constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium.
4. Intermittent periodic duty type with electric braking (S5)
A sequence of identical duty cycles, each consisting of a period of starting, a period of operation at constant load and a rest and de-energized period, but the operation period are so short that it is not sufficient for the machine to reach thermal equilibrium.
Strong Package Ensure Motor safe enough for Ship or Truck Transportation
|
|
|
IM1 |
IM3 |
|
Shaft |
Mounting |
|
|
|
|
|
height |
Arrangement |
driving End |
Non-driving End |
driving End |
Non-driving End |
|
112 |
308 |
308 |
308 |
308 |
|
132 |
309 |
309 |
309 |
309 |
|
160 |
311 |
311 |
311 |
311 |
|
180 |
313 |
313 |
313 |
313 |
|
200 |
315 |
315 |
32315 |
46315 |
|
225 |
315 |
315 |
32315 |
46315 |
|
250 |
316 |
316 |
32316 |
46316 |
|
280 |
32320 |
320 |
32320 |
46320 |
|
315 |
32322 |
322 |
32322 |
46322 |
|
355 |
32326 |
326 |
|
|
|
400 |
32330 |
330 |
|
|
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.

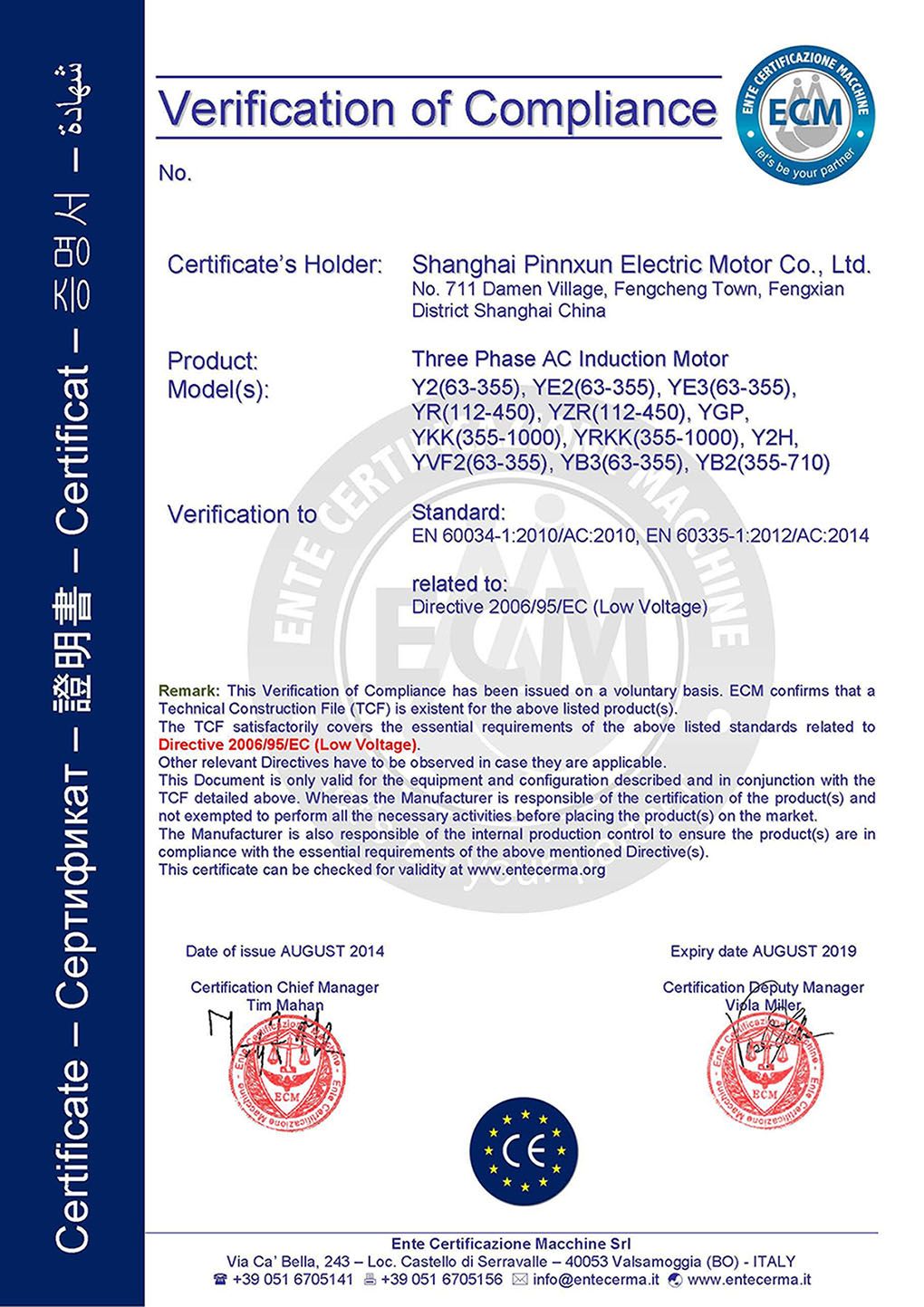

Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
