3pin Powercon/Power Cable Connector for LED Cabinet

Prod Model:	YF-24-C03PE-13-002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Connector Type:	3pin Connector
Certification:	UL, CE, RoHS, CCC, ISO9001
Cable Specification:	2.5mm-4mm2/14-12AWG
Contact Diameter:	Od2.0*3
Durability:	Over 500 Times
Gender:	Male
Application:	Audio & Video

Product Description

3pin powercon/power cable connector for led cabinet

Specifications
1.UL CE,CCC,CUL,RoHs,
2.IP65/IP68
3.High performance engineering plastics.
4.competitive price,100% high opinion

Product Description

1.Lockable 3 pole equipment (AC) power connector with contact for cable, neutral and premating safty.
2.Colour couled for easy identification
3.Fast and easy locking system
4.New lock design for easier handling and secure locking

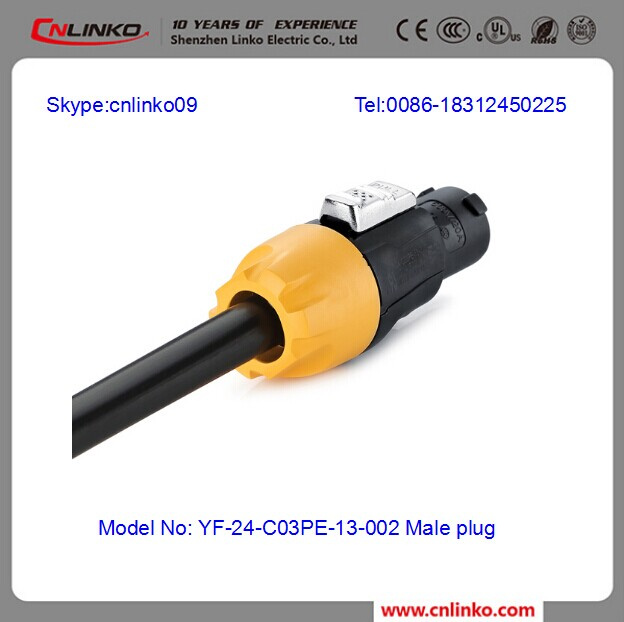

YF-24-C03PE-13-002 with cable and gold plated conductor
Connecting   mode:	Latching lock
Protection   level:	IP65/67
Wire   gauge:	14~12 AWG
Contact   diameter×Qty:	Φ2.0*3
Current   rating(A):	20A
Operating   voltage(AC.V.rms):	500V
Withstand   voltage(AC.V)1min:	2500V
Contact   resistance:	<3mΩ
Insulation   resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature   rating:	-40°C~85°C
Method   of connecting cable:	Soldering
Prohibited   to charged inserted
Material
Shell&insulated parts:	High performance engineering plastics
Contact  pin:	Copper alloy(gold-plated)
Contact socket:	Phosphor bronze(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel
Main characteristics:
- Sealed against dust and   fluid
-   Vibration resistance,impact resistance,stretching resistance
-   With one hand, can quickly insert or pull out the
Application industries:
- Stage equipment	-The smart grid
- Medical equipment	-Server
-Solar energy equipment	-Ship equipment
-Electric power equipment	-Vehicle equipment
-Communications equipment	-Heavy machinery


Packing&payment&shipment:

Package Term:

1:10pcs/small box, 24 small boxes/ master box
2: Customized packing is welcome , MOQ of printing customized box is 3000 pcs/model.

Payment Term:

1:Qty below 3000 pieces, 100% T/T in advance is required after confirming the order.
2:Qty above 3000 pieces, we allow 30% T/T in advance, 70% of the balance against the copy of B/L.
3:Western Union is available for trial order or small qty

Delivery Term:
1:You may choose our shipping partner or your own partner.
2:Delivery Detail: 3-7 working days after received deposit

Quality Guaranteed:

  UL,CE , ROHS, CCC, ISO9001:2008 Standard.
  Supply OEM service .
  We have professional quality control system and R&D department to strictly manufacture each product.

Supply Ability:
  200,000 pcs per month
  We open the mould by ourselves. With a National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
